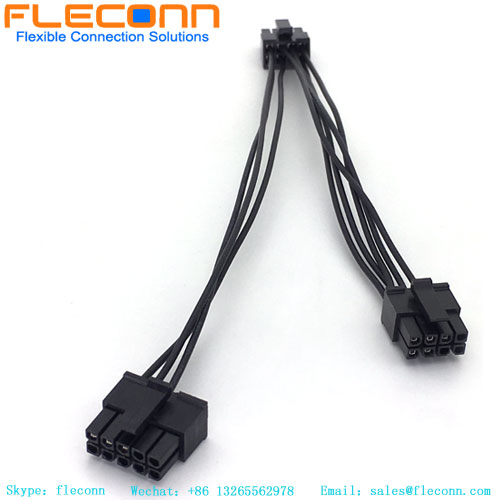

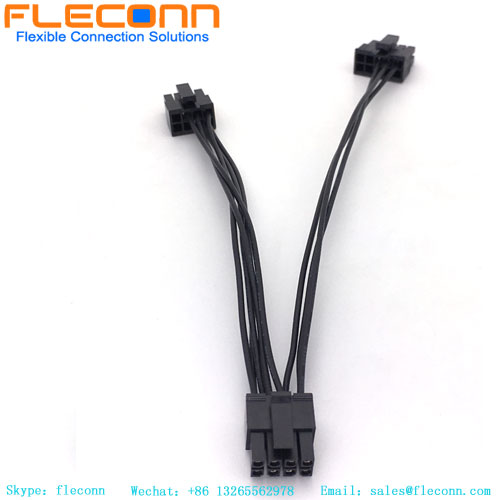

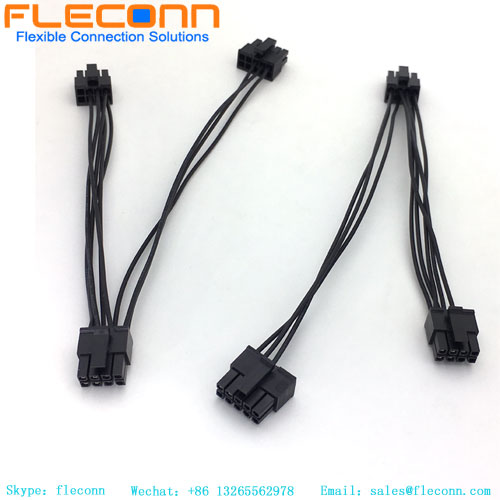

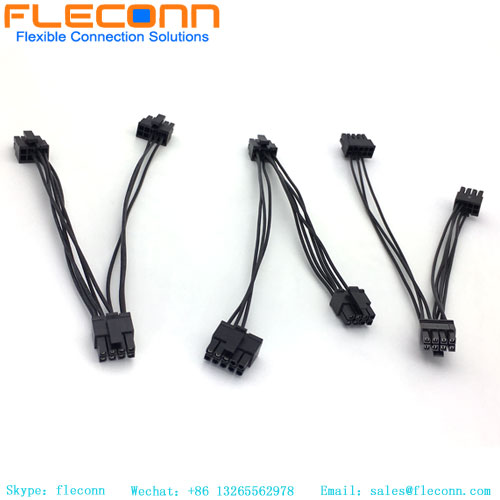

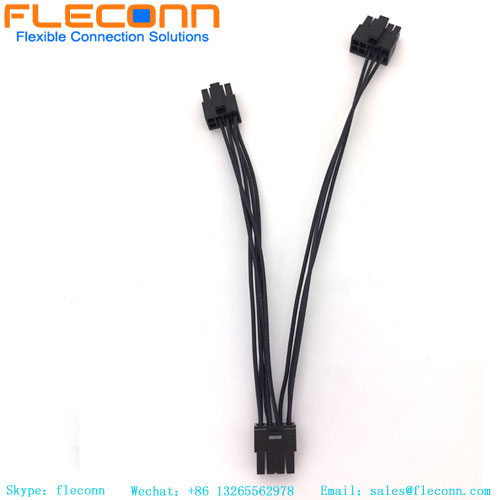

8 Pin Molex wire harness Y Splitter Cable Assembly

8 Pin Molex wire harness Y Splitter Cable Assembly

8 Pin Molex wire harness Y Splitter Cable Assembly

8 Pin Molex wire harness Y Splitter Cable Assembly

8 Pin Molex wire harness Y Splitter Cable Assembly

8 Pin Molex wire harness Y Splitter Cable Assembly

Description

Description

8 Pin Molex wire harness Y Splitter Cable Assembly

Fleconn Can Custom Molex Wire Harness For The Manufacturers In The Fields Of Consumer Electronics Devices, Automotive, Led Light, Equipment And Machinery, Industry Automation System, Household Appliances, Medical Devices Etc.

Molex connector Wire Harness Cable Assembly

Delivering 7.0A and 600V per circuit in an industry-standard 3.96mm pitch, power application KK 396 connectors are ideal for low- to mid-power wire-to-board and board-to-board applications

8 Pin Molex wire harness parameters

Product Name: Micro-Fit 3.0	Gender：Female
Type：Discrete Wire Assembly	Voltage Maximum：150V
Cable Length and Color:Customized	Wire/Cable Type：UL
Assembly Configuration：Dual Ended Connectors	Material Resin：Nylon
Adapter wire gauge: 24AWG - 18AWG / 26AWG - 22AWG	Certificate: RoHS CE
Operating temperature, fixed installation: -40° to +105°C	Pitch Mating Interface：3.0mm
Cable Length：150mm 450mm 600mm	Material Metal：Brass
Flammability：94V-0	Insulation resistance: ≥100mΩ

8 Pin Molex wire harness Applications

●Sensors, actuators, encoders, motors	●Industrial grating light curtains
●Factory automation process control	●Equipment battery, semiconductor
●Package label printing equipment	●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment	●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly	●LED outdoor display, outdoor LED lighting

8 Pin Molex wire harness Y Splitter Cable Assembly
