Custom M8 Rear Mount Connector Wire Harness
Custom M8 Rear Mount Connector Wire Harness Custom M8 Rear Mount Connector Wire Harness Custom M8 Rear Mount Connector Wire Harness Custom M8 Rear Mount Connector Wire Harness Custom M8 Rear Mount Connector Wire Harness

Custom M8 Rear Mount Connector Wire Harness

Item No.: M8-A-M-ST-PCB-06P-300MM
Product series: M8 Panel Mount Connector Cable
Connector code: B-code
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 6 Pin, 6 contacts
Plug Guide: Straight
Request Quote
Description Review
Description

M8 6 Pin Male Panel Mount Connector With JST Connector Cable Description



FLECONN could supply various m8 male and female panel mount connectors. These m8 circular connectors may be classified as straight and 90 degree right angle m8 panel mount connectors, shielded and unshielded pcb panel mount connectors, front and rear panel mount, front and rear fasten screw thread, wire solder pin and DIP solder pin connectors. There are 3 4 5 6 8 pin / pole / positions male and female m8 panel mount connectors available for connection systems of various sensor, industry automation equipment, robot and machine.


M8 6 Pin Male Rear Mount Connector product parameters



Product series: M8 Panel Mount Connector Cable Connector Gender: Male
Connector code: B-coded Connector core number: 6Pin
Industry standard: IEC61076-2-101 Connector type: Rear Panel Mounting
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M8 6 Pin Rear Fastened Panel Mount Connector With SHR-06V-S Connector Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

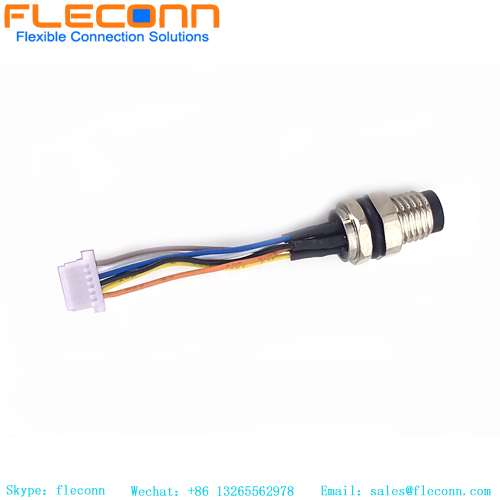

M8 6 Pin Panel Mount Connector To JST SHR-06V-S Wire Harness

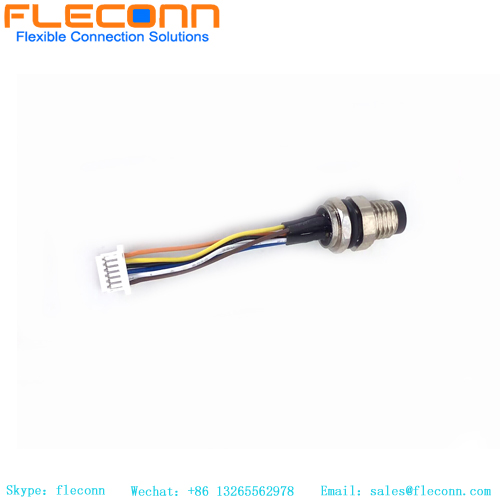

Custom M8 Rear Mount Connector Wire Harness

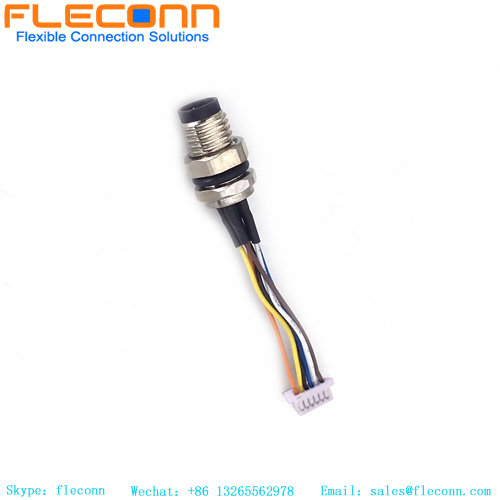

M8 6 Pin Male Panel Mount Connector With JST Connector Cable

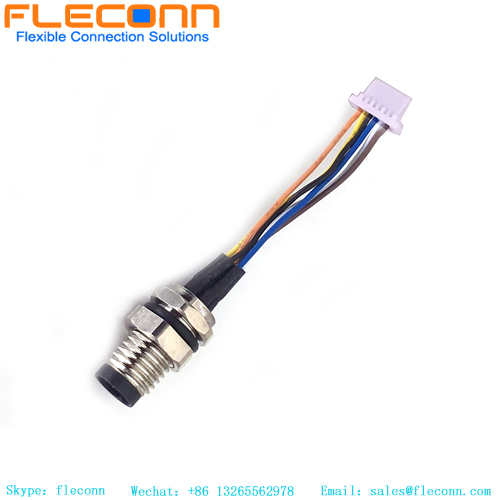

M8 6 Pin Male Rear Mount Connector


M8 6 Pin Front Fastened Panel Mount Connector With SHR-06V-S Connector Cable

Other M8 Panel Mount Connector With Free Wire Leads

FLECONN can provide various m8 3 4 5 6 8 pin male and female front and rear panel mount connector with free wire leads for sensors.

Other M8 Panel Mount Connector

M8 connector is classified as m8 field wireable cable connector, m8 molded cable connector, m8 pcb connector, m8 panel mount connector with wire solder cup terminals
