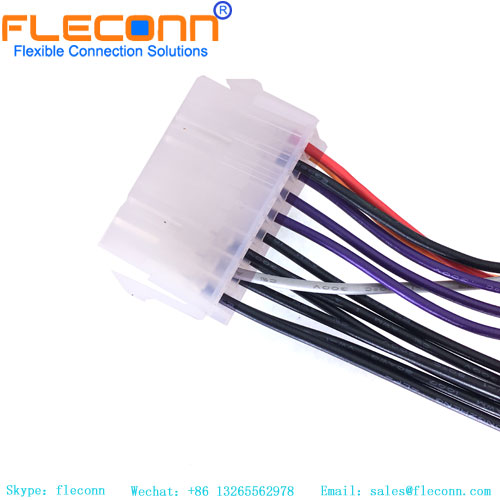

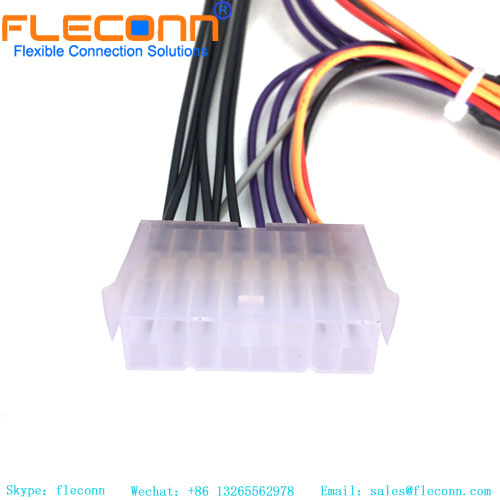

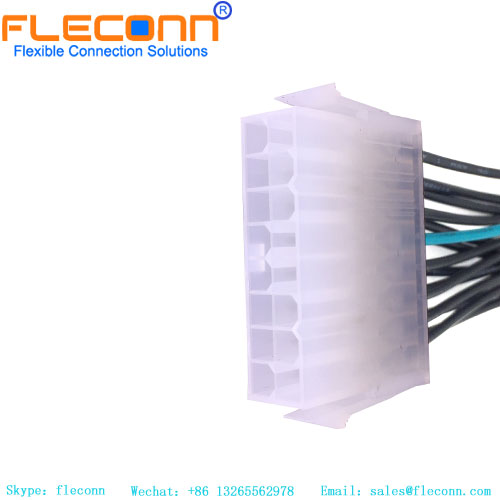

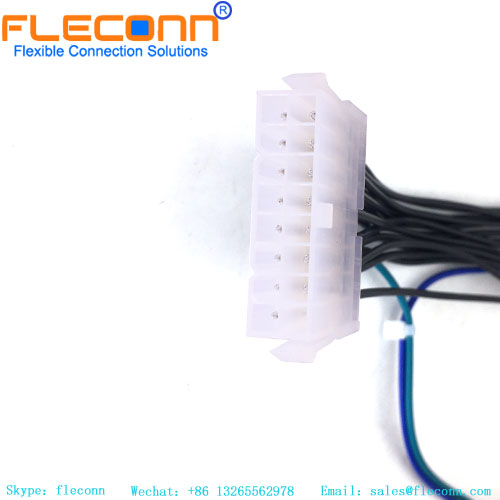

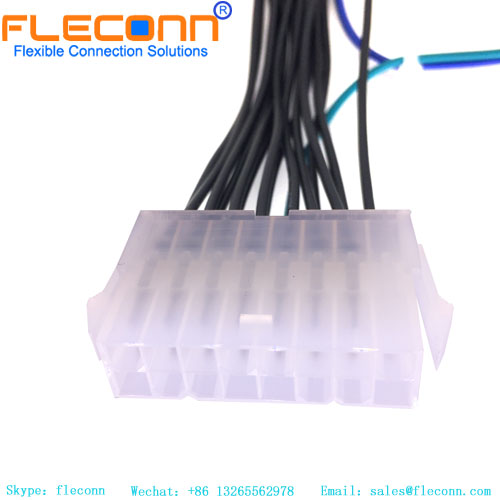

Custom Molex 4.2mm Female 16 Pin Connector Wire Harness
Custom Molex 4.2mm Female 16 Pin Connector Wire Harness Custom Molex 4.2mm Female 16 Pin Connector Wire Harness Custom Molex 4.2mm Female 16 Pin Connector Wire Harness Custom Molex 4.2mm Female 16 Pin Connector Wire Harness Custom Molex 4.2mm Female 16 Pin Connector Wire Harness

Custom Molex 4.2mm Female 16 Pin Connector Wire Harness

Item No.: MX-4.2MM-16P-F-150MM
Product Name: Micro-Fit 4.2 Wire Harness
Connector Pitch：4.2MM
Connector : Molex 0039012143, 2/4/6/8/10/11/12/14/16/18/20/22/24 pin
Crimp Terminal: 39000040
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 4.20mm
Request Quote
Description Review
Description

4.2mm Pitch Female 0039012161 16 Pin Connector Wire Harness With Molex Description



FLECONN, as an overmolded cable assemblies and molded wire harness manufacturer, can custom 0039 series molex microfit 4.2 cable with micro-fit 4.2 connector for power transmision. There are 2 4 6 8 10 12 14 16 18 20 22 24 pin Molex Micro-Fit 4.2 Cable receptacle housing such as manufacturer part number 0039012100，0039012140，0039013103，0039013143 available.

0039012161 16 Pin Connector Wire Harness With Molex

Prouduct Name    Molex Micro-Fit 4.2 Series 0039012161 16 Pin Connector Cable Assemblies
Equivalent to Molex Part No.  0039012161
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 0039012161 Micro-Fit 4.2 Receptacle Housing, Dual Row, 10 Circuits, UL 94V-0, Low-Halogen
2. Crimp terminal: 39000040 Micro-Fit 1.2 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1571 Round cable/ UL1007 Parallel cable
10. Wiring diagrm: defined by customers
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag


























MOLEX 0039012161 16 Pin Female Connector Wire Harness

4.2mm Pitch Female 0039012161 16 Pin Connector Wire Harness With Molex

Custom Molex 4.2mm Female 16 Pin Connector Cable

Molex 16 Pin 4.2mm Pitch Wire to Board Connector Cable

MOLEX 0039012161 16 Pin Female Connector Wire Harness

0039012161 16 Pin Connector Wire Harness With Molex

Molex Connector Wire Harness

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
