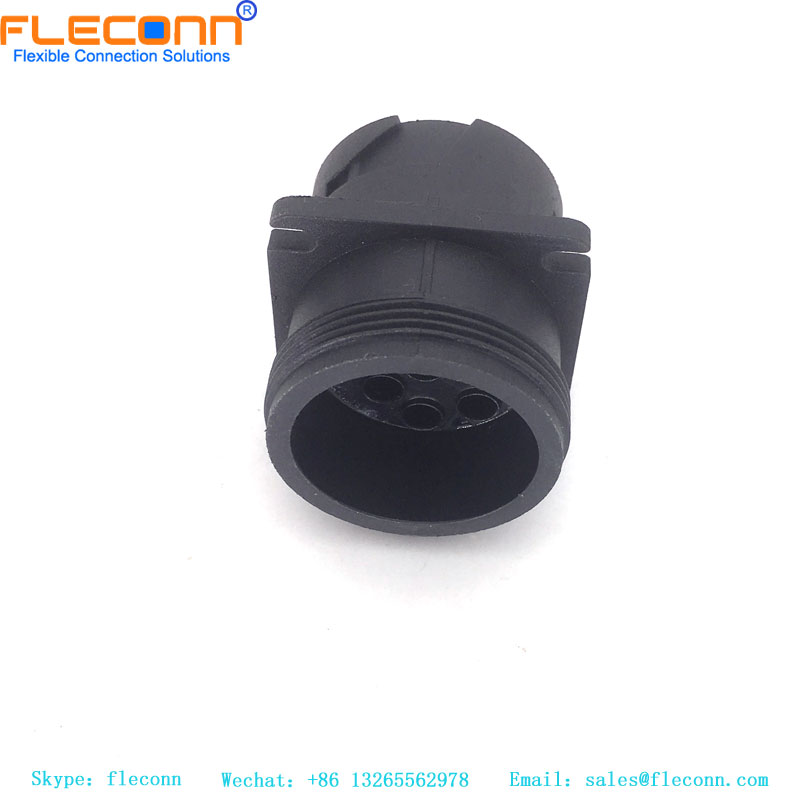

DEUTSCH HD Series 9 Pin HD10-9-1939P Wire To Wire Connector

DEUTSCH HD Series 9 Pin HD10-9-1939P Wire To Wire Connector

DEUTSCH HD Series 9 Pin HD10-9-1939P Wire To Wire Connector

DEUTSCH HD Series 9 Pin HD10-9-1939P Wire To Wire Connector

Description

Description

DEUTSCH HD Series 9 Pin HD10-9-1939P Wire To Wire ConnectorDescription

FLECONN can customize various TE/AMP connector harnesses for customers, aiming to reliably transmit data, power and signals in the worst environment and under the most extreme use conditions. Different types of connector harnesses can be produced according to customer needs, which can reduce the size and power consumption of applications and improve performance..

Technical Data

Deutsch HD10 Series Wire To Wire Connector Subsititude, Crimp Termination
Mechanical and Electrical Parameters	Reference Standard	DIN EN 61076-2-109
	Rated Current	0.5A
	Rated Voltage	48V
	Impulse Voltage	300V
	Contact Resistance	≤10mΩ
	Insulation Resistance	≥100MΩ
	EMC Shielding	Shielded
	Corrosion Resistance	Salt spray test > 48 Hours
	Durability	>500 mate/unmate cycles
	Tightening Torque	Recommended: 1.0Nm Max: 1.2Nm
Materials	Male Contact	Phosphor Bronze
	Contact Plating	Gold (Au)
	Insert Insulation Body	PA66+GF, Black
	Screw Nut	Brass, CNC
	Screw Nut Plating	Nickel Plated
	Outer Shell	Zinc Alloy, Nickel Plated
	O-ring	Rubber
	Cable Gland	PA
	Cable Gland Nut	Zinc Alloy, Nickel Plated
Mated Cable	Cable O.D.	6mm~8mm
	Wire connection method	Crimping terminals
	Strip cable jacket length	20~25mm
	Peel wire insulation length
Environmental Data	Rated Temperature	-25~80℃
	Protection Degree	IP67
	Environmental Compliance	RoHS2.0 2015/863 Amending Annex
	Pollution Degree	3

DEUTSCH HD Series HD10-9-1939P Wire To Wire Connector

Deutsch HD10 Series Wire To Wire Connector Subsititude

Deutsch HD10 Series Wire To Wire Connector，Housing for Male Terminals
