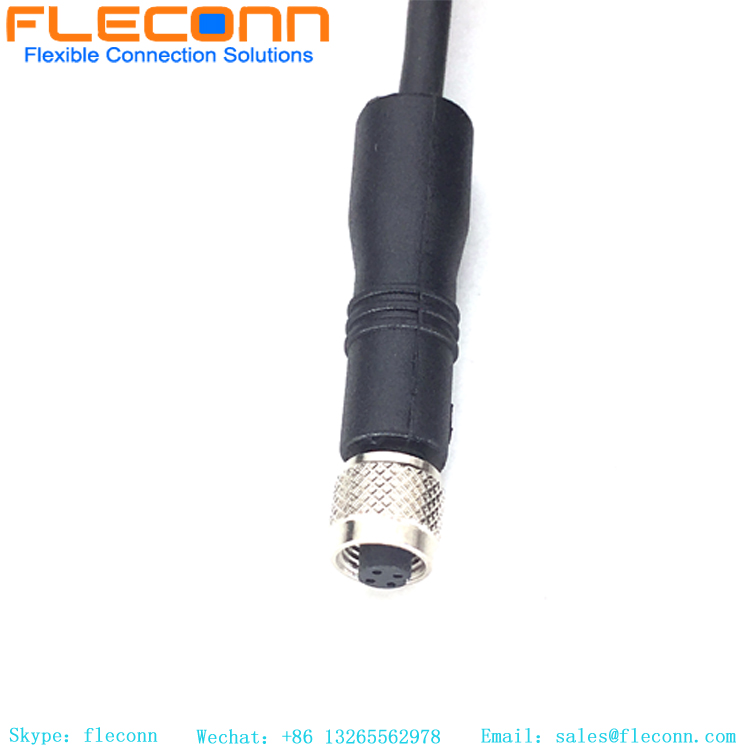

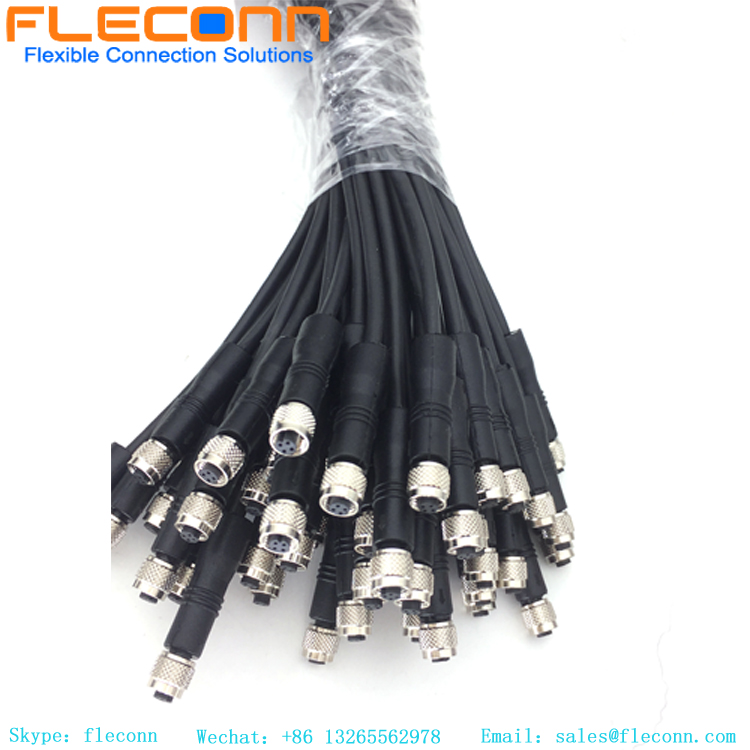

IP68 Waterproof Female M5 2 3 4 Pin Sensor Cable, Molded Cable Assemblies
IP68 Waterproof Female M5 2 3 4 Pin Sensor Cable, Molded Cable Assemblies IP68 Waterproof Female M5 2 3 4 Pin Sensor Cable, Molded Cable Assemblies IP68 Waterproof Female M5 2 3 4 Pin Sensor Cable, Molded Cable Assemblies IP68 Waterproof Female M5 2 3 4 Pin Sensor Cable, Molded Cable Assemblies

IP68 Waterproof Female M5 2 3 4 Pin Sensor Cable, Molded Cable Assemblies

Item No.: M5-AF-ST-04P-2M-PUR
Product series: M5 Connector Cable
Wire gauge: 24-28AWG
Connector Gender:  Female
Waterproof grade: IP67
Connector core number: 4P
Plug Guide: Straight
Request Quote
Description Review
Description

IP68 Waterproof Female M5 2 3 4 Pin Sensor Cable, Molded Cable Assemblies Product Description



M5 connectors can be used in waterproof electrical connections such as outdoor and underground LED light. The mated male and female m5 connector connection solution has a good seal and reliable connection function in terms of material, plastic using high temperature nylon, CTI above 120 degrees, on the hardware terminal using high fatigue resistance, phosphor or beryllium copper alloy material, electroplating using gold plating process, corrosion resistance, plug performance is very excellent, waterproof ring using fluorine glue, extremely cold resistance to minus 40 degrees, high temperature resistance above 150 degrees, waterproof performance, environmental performance is very strong, is the industrial use more mature products.

IP68 Waterproof Female M5 2 3 4 Pin Sensor Cable, Molded Cable Assemblies product parameters



Product series: M5 Connector Cable Connector Gender: Male
Industry standard: IEC 61076-2-105 Connector core number: 4P
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Wire gauge: 24-28AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 1.5A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR


IP68 Waterproof Female M5 2 3 4 Pin Sensor Cable, Molded Cable Assemblies Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

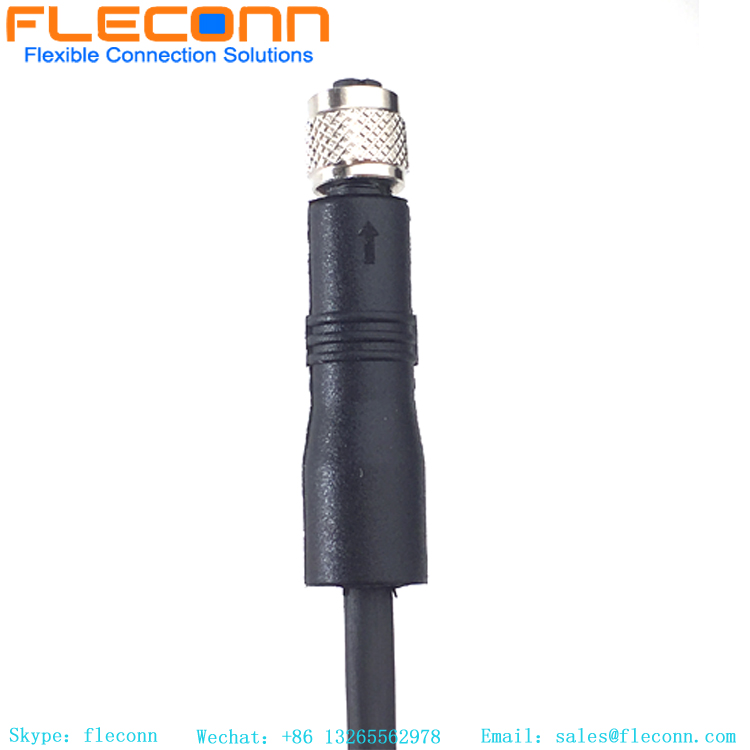

IP68 Waterproof Female M5 2 3 4 Pin Sensor Cable, Molded Cable Assemblies

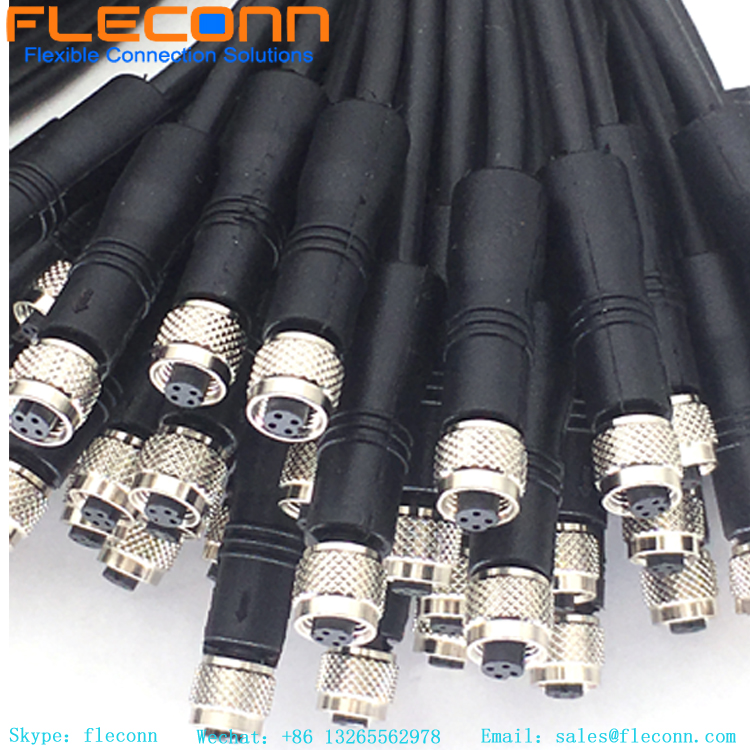

IP68 Waterproof Female M5 2 3 4 Pin Sensor Cable, Molded Cable Assemblies

M5 4 Pin Female Cable


IP67 Waterproof M5 2 3 4 Pin Cable, Male, Female 0.25mm2x4C PUR Jacket Cable


M5 Sensor Cable 3 Pin Female Connector, IP67 Waterproof Class PUR Cable


Other M5 Connector Cable

M5 connectors can be applied in sensor and actuator connection from brake, industrial camera and automatic control system etc..
