Home > M5 M8 M12 M16 Connector & Cable Assembly > M12 Connector > M12 PCB Panel Mount Connector-Straight

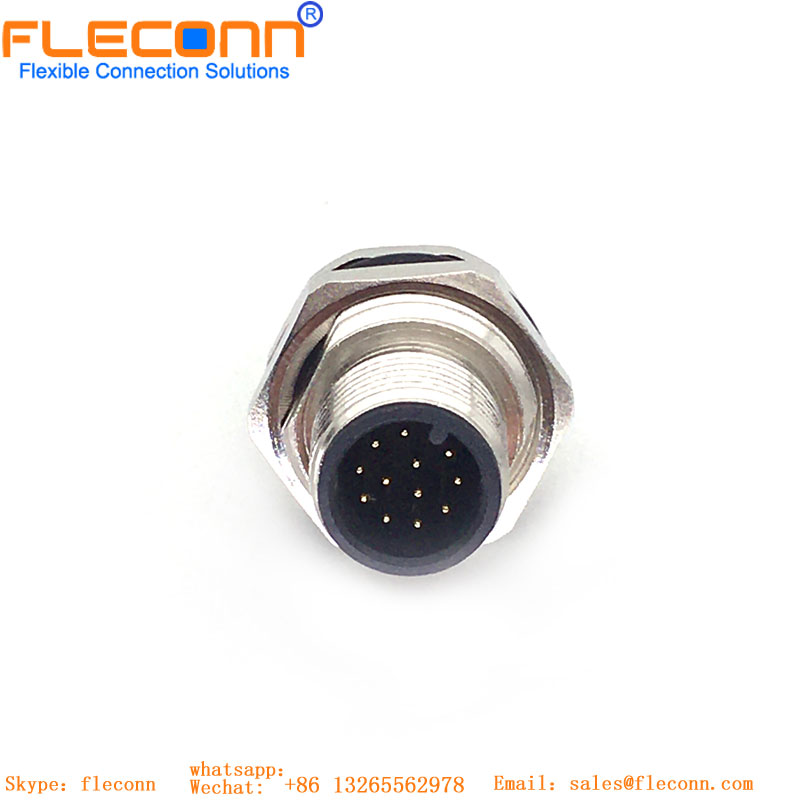

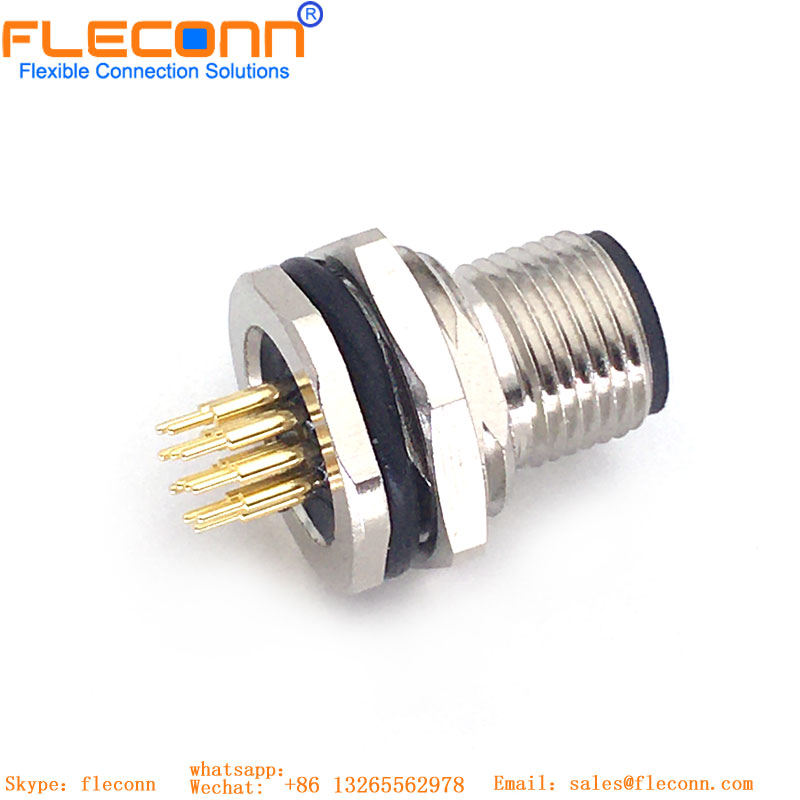

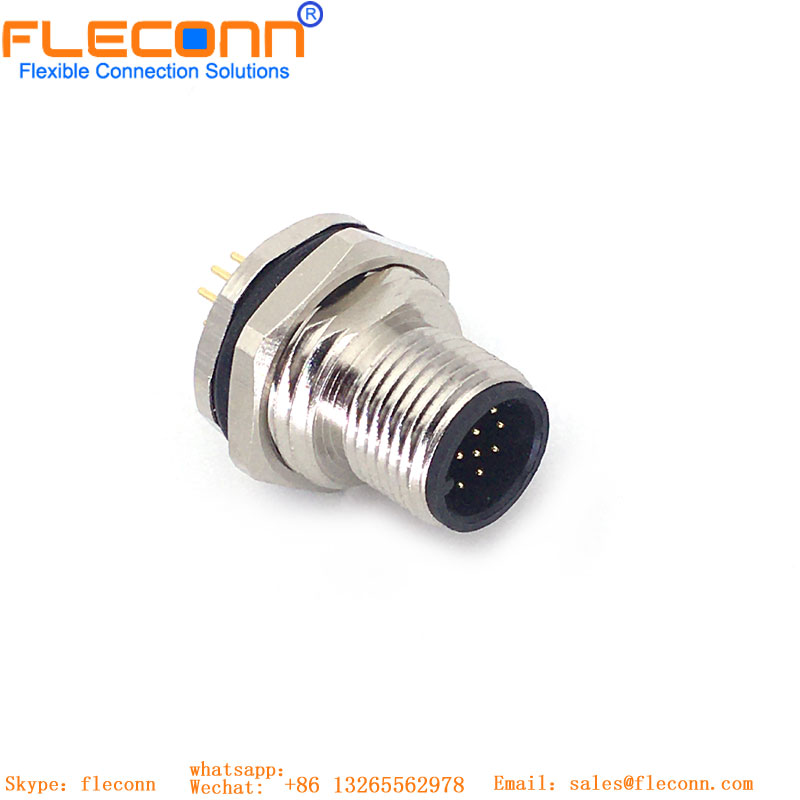

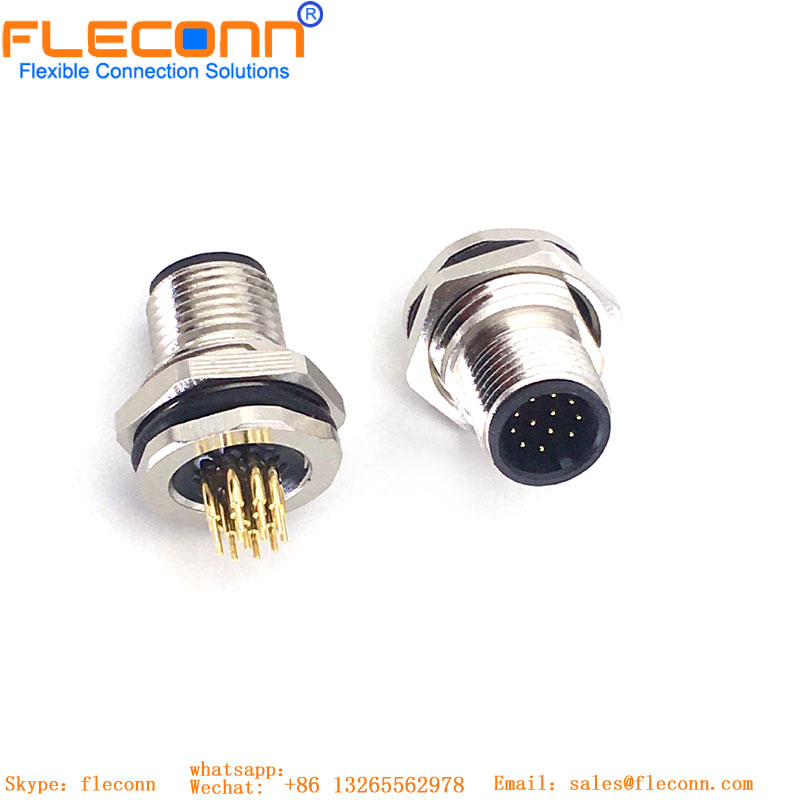

M12 12 Pin Rear Panel Mount Connector
M12 12 Pin Rear Panel Mount Connector M12 12 Pin Rear Panel Mount Connector M12 12 Pin Rear Panel Mount Connector M12 12 Pin Rear Panel Mount Connector M12 12 Pin Rear Panel Mount Connector

M12 12 Pin Rear Panel Mount Connector

Item No.: M12-A-M-PM-ST-12P
Product series: M12 Panel Mount Connector
Connector code: A-Coded
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 12P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 12 Pin Rear Panel Mount Connector Product Description


M12 panel mount connector with 3 4 5 6 8 12 17 Pin male plug and female socket and gold-plated contacts available can be provided by FLECONN. In order to determine the direction of the angled cable outlet of the mating connector,  we can provide 90 degree right angled M12 panel mount connectors with 4, 5 and 8 position in wire solder pin and PCB DIP solder pin. When completely mated the connectors are IP67 rated to ensure protection from liquids and dust.

M12 12 Pin A-coded Straight Panel Mount Socket product parameters


Product series: M12 Panel Mount Connector Connector Gender: Male
Connector code: A-code Connector core number: 12P
Industry standard: IEC61076-2-109 Connector type: Panel type, front lock
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 26AWG Connection method: threaded connection
Rated current: 0.5A Connector conductor: copper gold plated
Rated voltage: 50V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ

M12 12 Pos PCB Mount Connector Applications

●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M12 12 Pin Rear Panel Mount Connector
M12 12 Pin Rear Panel Mount Connector

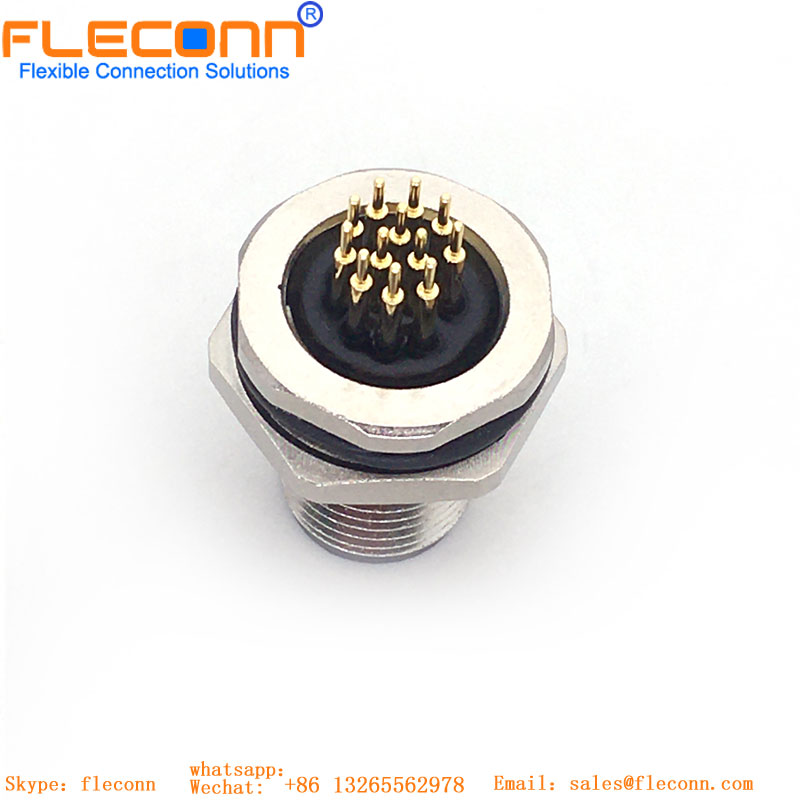

M12 12 Pole PCB Male Connector


M12 12 Pin A-coded Straight Panel Mount Socket

M12 12 Pin Panel Mount Connector

M12 12 Pos PCB Mount Connector

Other M12 Panel Mount Connector

FLECONN can provide high quality 180 degree straight 3 pin 4 pin 5 pole 6 positions 8 pin male and female a-code b-code c-code d-code l-code k-code s-code t-code x code m12 pcb panel mount connector with PG9 and m16x1.5 front and rear fastening thread.
