M12 12 Pole A-coded Female Connector
M12 12 Pole A-coded Female Connector M12 12 Pole A-coded Female Connector M12 12 Pole A-coded Female Connector M12 12 Pole A-coded Female Connector M12 12 Pole A-coded Female Connector

M12 12 Pole A-coded Female Connector

Item No.: M12-A-F-FW-ST-12P-03
Product series: M12 Connector
Connector code: A type
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 12P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 12 Pole A-coded Female Connector Product Description



FLECONN, as a professional m12 connector supplier, could supply IP67 / IP68 waterproof 3 pin 4 pin 5 contacts 6 positions 8 pin 12 pin 17 pole male and female m12 connector such as A-coded sensor connector, B-coded fieldbus connector for profibus and interbus, C-coded, D-coded connector for industrial Ethernet, Profinet, Ethernet IP and EtherCat and X-coded high-speed 10Gbit rugged industrial Ethernet connector. These m12 connectors are classified as field wireable/installable/attachable, molding type, panel mounting type and they are widely used in automation sensor and actuator, industry ethernet cable connection.


M12 12 Pole A-coded Female Connector product parameters



Product series: M12 Connector Connector Gender: Female
Connector code: A type Connector core number: 12P
Industry standard: IEC61076-2-101 Connector type: Field Wireable
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 250V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M12 12 Pole A-coded Female Connector Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M12 12 Pole A-coded Female Connector Picture

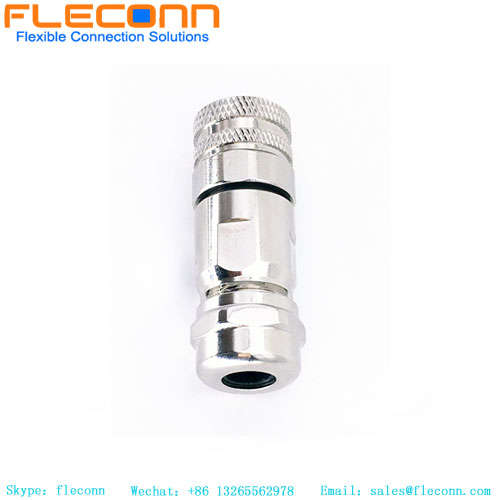

M12 A Coded 12 Pin Straight Female Connector

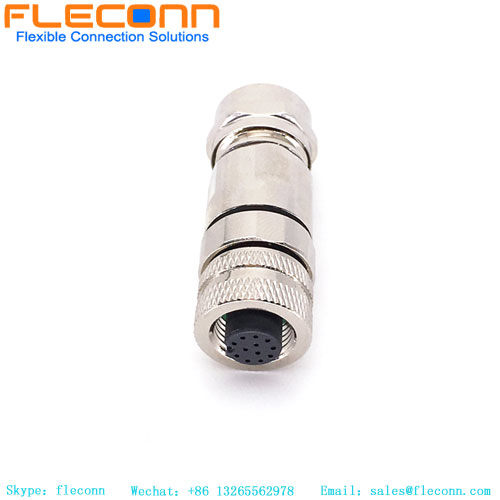

M12 12 Pos Assembled Connector

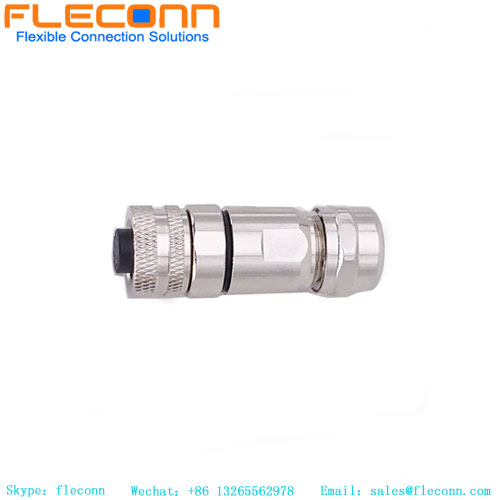

M12 Metal Assembled Shield Connector

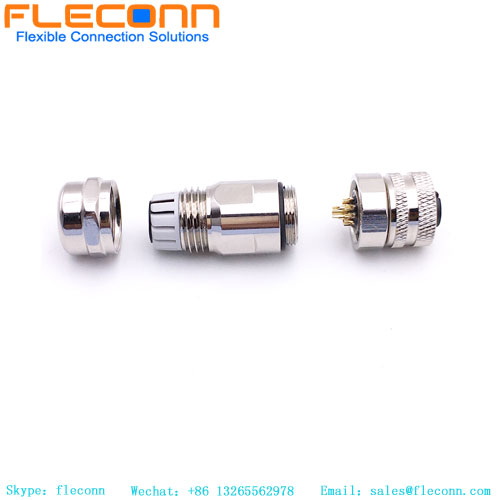

M12 12 Pole A-coded Female Connector

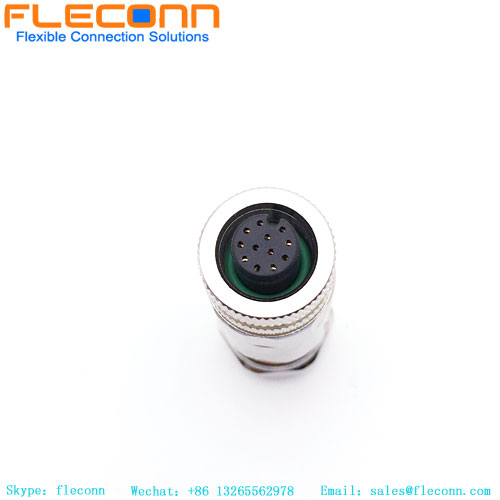

M12 A-Coded Metal Assembled Plug

Other M12 Connector

FLECONN can manufacture A-Coded B-Coded C-coded D-Coded K-Coded L-Coded S-coded T-coded X-Coded 3 pole 4 pin 5 pin 6 way 8 contacts 12 positions 17 pins male and female m12 connectors for industry automation, sensor and actuator systems, DeviceNet, Profibus, Interbus, Industrial Ethernet, Machine Vision Camera, Industrial Camera, Profinet, Ethernet/IP and EtherCat, Motor, Frequency-convertors. These m12 connectors have molding type, field wireable/field installable/field mountable type, pcb panel mount type, wire solder-cup terminal panel mount type. There are straight, right angle, T-shape and Y-shape connector available. These M12 male and female connector can reach IP67 IP68 waterproof rating.
