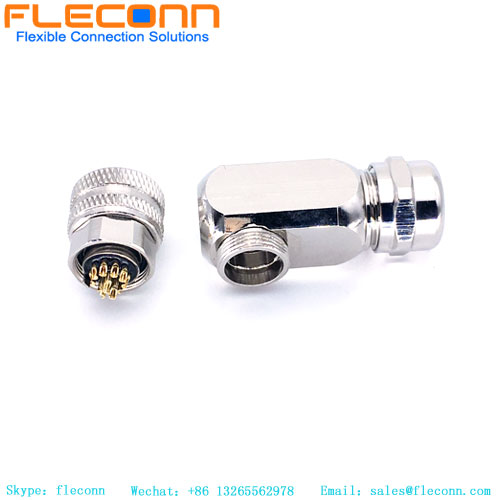

M12 12 Pole Female Connector

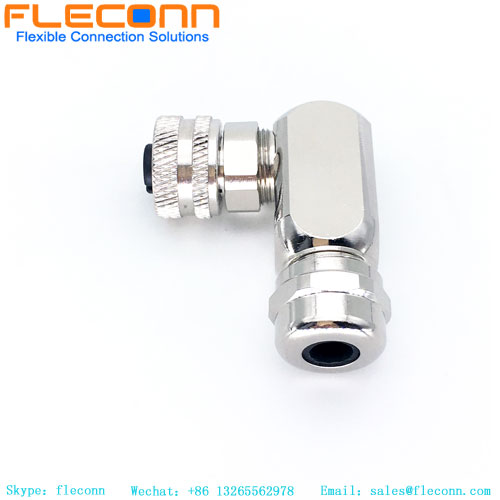

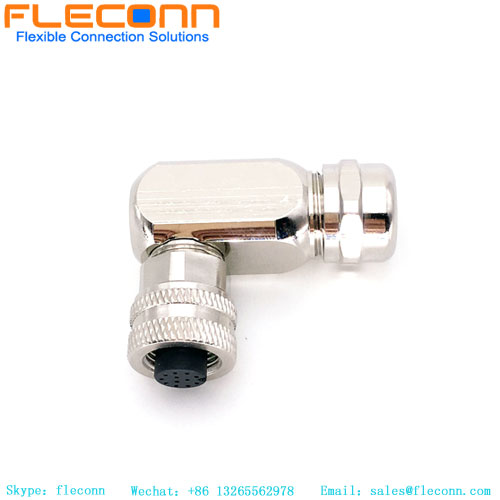

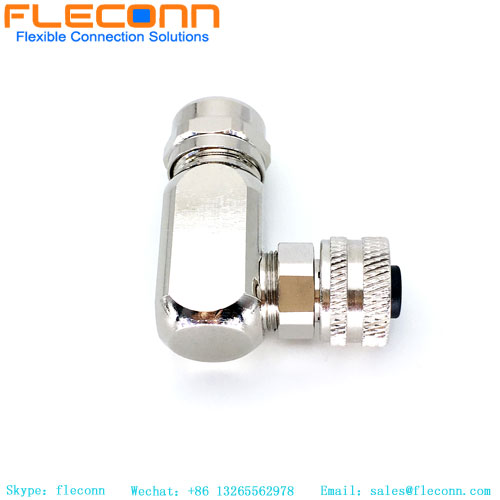

M12 12 Pole Female Connector M12 12 Pole Female Connector M12 12 Pole Female Connector M12 12 Pole Female Connector M12 12 Pole Female Connector

M12 12 Pole Female Connector

Item No.: M12-A-F-FW-RA-12P-02
Product series: M12 Connector
Connector code: A type
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 12P
Plug Guide: Right Angle
Request Quote
Description
Description

M12 12 Pole Female Connector Product Description



FLECONN, as a professional m12 connector supplier, could supply IP67 / IP68 waterproof 3 pin 4 pin 5 contacts 6 positions 8 pin 12 pin 17 pole male and female m12 connector such as A-coded sensor connector, B-coded fieldbus connector for profibus and interbus, C-coded, D-coded connector for industrial Ethernet, Profinet, Ethernet IP and EtherCat and X-coded high-speed 10Gbit rugged industrial Ethernet connector. These m12 connectors are classified as field wireable/installable/attachable, molding type, panel mounting type and they are widely used in automation sensor and actuator, industry ethernet cable connection.


M12 12 Pole Female Connector product parameters



Product series: M12 Connector Connector Gender: Female
Connector code: A type Connector core number: 12P
Industry standard: IEC61076-2-101 Connector type: Field Wireable
Plug Guide: Right Angle Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 250V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M12 12 Pole Female Connector Pinout



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M12 12 Pole Female Connector
M12 A-Coded 12 Pin Female Right Angle Connector Pinout


M12 Right Angle Connector

M12 12 Pole Female Connector

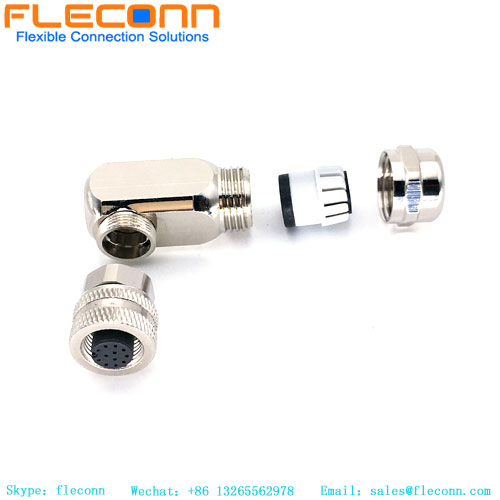

M12 Metal Assembled Right Angle Connector

M12 Metal Assembled Connector

Other M12 Connector

FLECONN can manufacture A-Coded B-Coded C-coded D-Coded K-Coded L-Coded S-coded T-coded X-Coded 3 pole 4 pin 5 pin 6 way 8 contacts 12 positions 17 pins male and female m12 connectors for industry automation, sensor and actuator systems, DeviceNet, Profibus, Interbus, Industrial Ethernet, Machine Vision Camera, Industrial Camera, Profinet, Ethernet/IP and EtherCat, Motor, Frequency-convertors. These m12 connectors have molding type, field wireable/field installable/field mountable type, pcb panel mount type, wire solder-cup terminal panel mount type. There are straight, right angle, T-shape and Y-shape connector available. These M12 male and female connector can reach IP67 IP68 waterproof rating.
