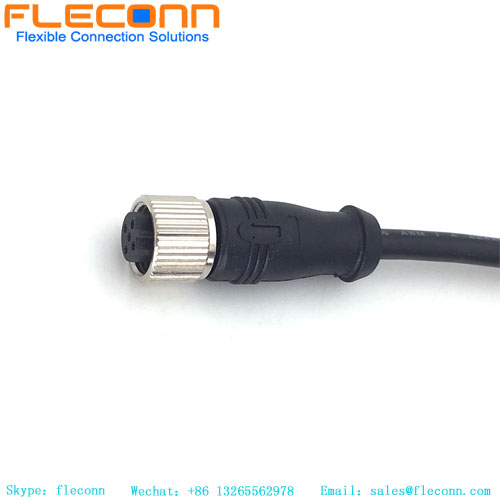

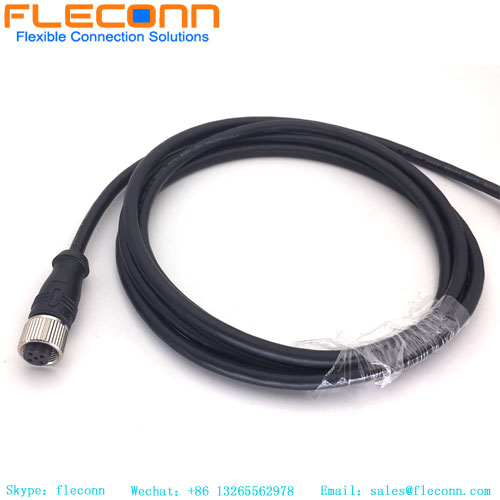

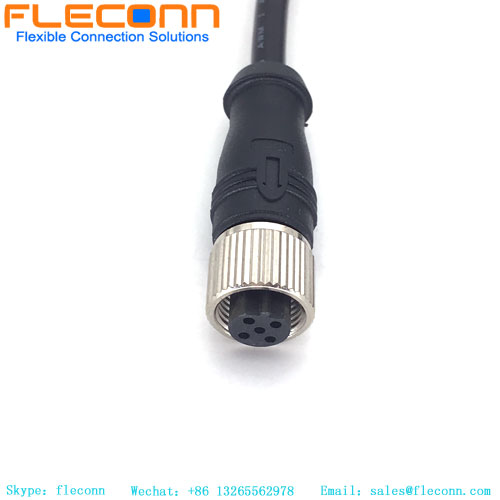

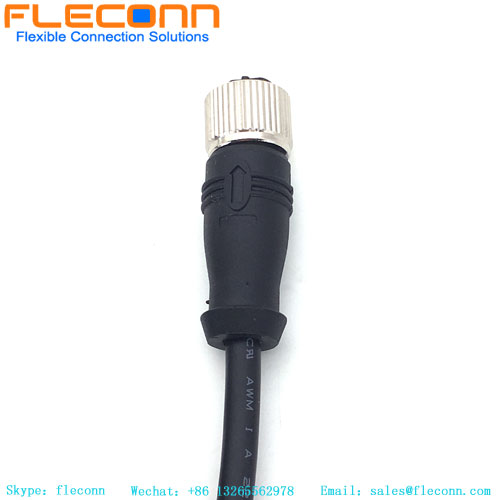

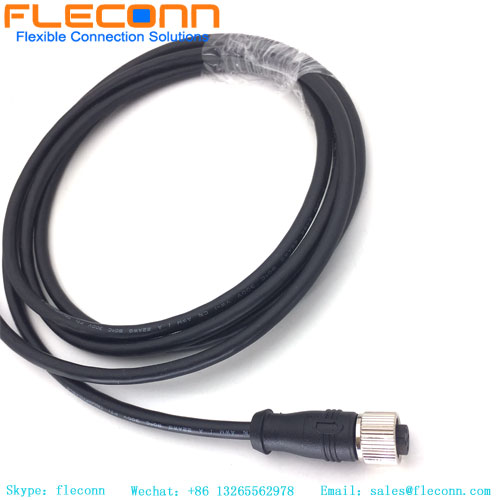

M12 5 Pin Female Cable
M12 5 Pin Female Cable M12 5 Pin Female Cable M12 5 Pin Female Cable M12 5 Pin Female Cable M12 5 Pin Female Cable

M12 5 Pin Female Cable

Item No.: M12BF-ST-05P-24A-PVC-1M
Product series: M12 Connector Cable
Connector code: B type
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 5P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 5 Pin Female Cable Product Description



M12 5 pin female cable has been overmolded before leaving the factory. Our normal cable outer jacket's material is PUR or PVC, and the internal core wire insulation maybe PVC, SR-PVC, PP, PE required according to the application of the product. The core wire conductor may be 22AWG, 24AWG, 26AWG, 28AWG with unique insulation color code. The single wire conductor is mult-strands and soldered into each terminal on the m12 molding type connector. The outer moulding material of all of our m12 connector and cable is TPU resin. The matched M12 board-end connectors (sockets) are m12 panel mount connector with soldered wire terminals and PCB DIP terminals. There are two types of m12 pcb panel mount connector with straight and 90 degree right angle. This m12 B-code 5 pin female connector cable can reach IP67 / IP68 waterproof rating according to customer's application requirements.


M12 5 Pin Female Cable, Straight, B-Coded product parameters



Product series: M12 Connector Cable Connector Gender: Female
Connector code: B type Connector core number: 5P
Industry standard: IEC61076-2-101 Connector type: Single head with cable
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Adapter wire gauge: 20-26AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR


M12 5 Pin Cable, Straight, B-Coded Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

M12 5 Pin Female Cable

M12 5P B-coded Female Cable

M12 5 Pin Female Plug Cable, Straight, B-Coded

M12 5Pin B-Coded Female Connector Cable

M12 5 Pole Female IP67 IP68 Waterproof Connector Cable

M12 5 Pos Sensor Connector Cable

Other M12 Connector Cable

FLECONN can provide IP66 waterproof M12 8-bit X-coded female to RJ45 Ethernet cables for power and signal transmission connections.
