Home > M5 M8 M12 M16 Connector & Cable Assembly > M12 Connector > M12 PCB Panel Mount Connector-Straight

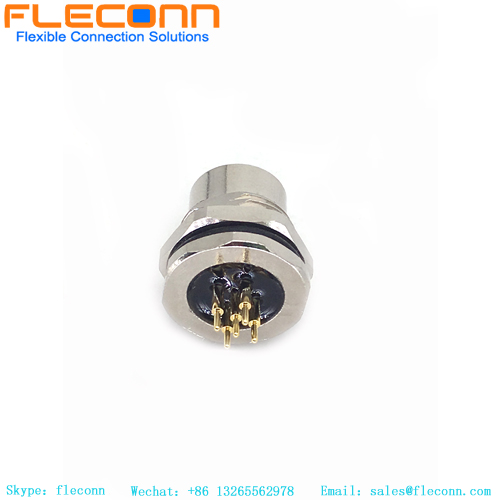

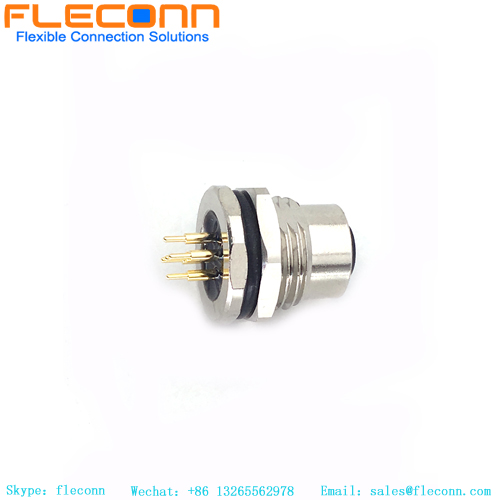

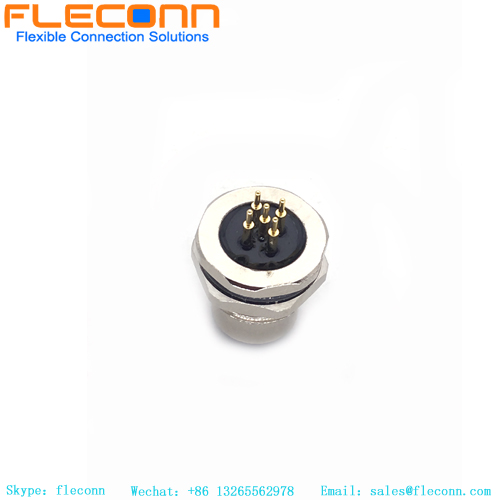

5 Pin Female M12 PCB Connector, Rear Panel Mounting
5 Pin Female M12 PCB Connector, Rear Panel Mounting 5 Pin Female M12 PCB Connector, Rear Panel Mounting 5 Pin Female M12 PCB Connector, Rear Panel Mounting 5 Pin Female M12 PCB Connector, Rear Panel Mounting 5 Pin Female M12 PCB Connector, Rear Panel Mounting

5 Pin Female M12 PCB Connector, Rear Panel Mounting

Item No.: M12-A-F-PM-ST-05P
FLECONN can supply 5 pin female front fastened m12 pcb rear panel mounting connector
Product series: M12 Panel Mount Connector
Connector code: A-coded
Connector Gender: Female
Waterproof grade: IP67
Contact number: 5P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 5 Pin Rear Mount Connector With PCB Contacts Description



M12 panel mount connector with 3 4 5 6 8 12 17 Pin male plug and female socket and gold-plated contacts available can be provided by FLECONN. In order to determine the direction of the angled cable outlet of the mating connector,  we can provide 90 degree right angled M12 panel mount connectors with 4, 5 and 8 position in wire solder pin and PCB DIP solder pin. When completely mated the connectors are IP67 rated to ensure protection from liquids and dust.


M12 A-coded 5 Pin Female PCB Mount Connector product parameters



Product series: M12 Panel Mount Connector Connector Gender: Female
Connector code: A type Connector core number: 5P
Industry standard: IEC61076-2-109 Connector type: Panel type, front lock
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 26AWG Connection method: threaded connection
Rated current: 0.5A Connector conductor: copper gold plated
Rated voltage: 50V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M12 5 Pin Front Fastened Connector With Contacts
M12 5 Pin Front Fastened Connector With Contacts


M12 5 Pin PCB Panel Mount Connector


M12 5 Pin Rear Mount Connector With PCB Contacts

M12 A-coded 5 Pin Female PCB Mount Connector

M12 A-coded Female PCB Connector

Other M12 Panel Mount Connector

FLECONN can provide high quality 180 degree straight 3 pin 4 pin 5 pole 6 positions 8 pin male and female a-code b-code c-code d-code l-code k-code s-code t-code x code m12 pcb panel mount connector with PG9 and m16x1.5 front and rear fastening thread.
