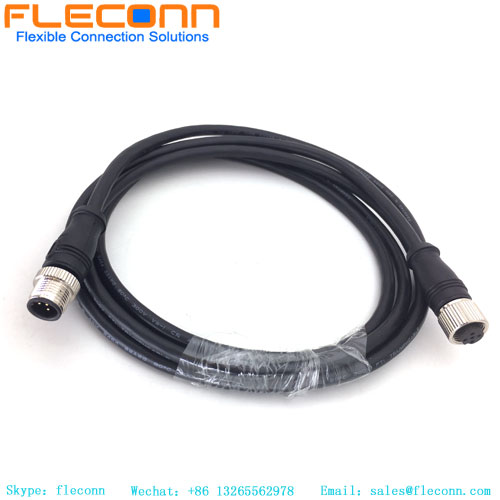

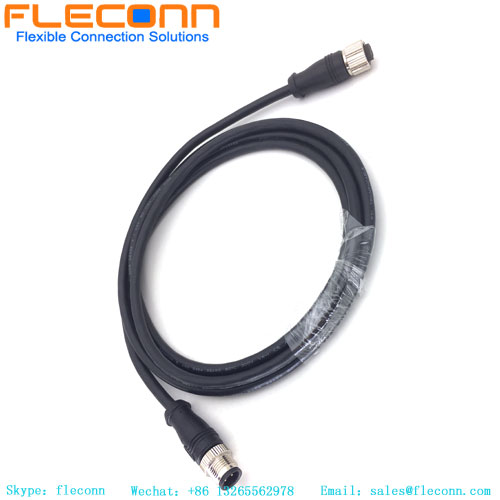

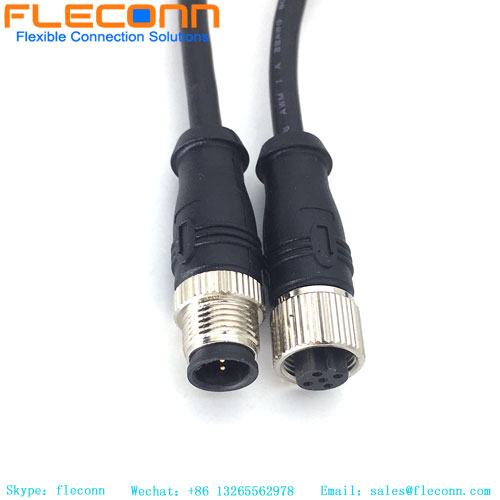

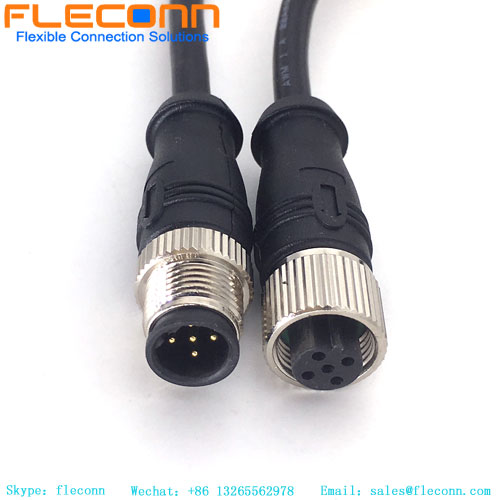

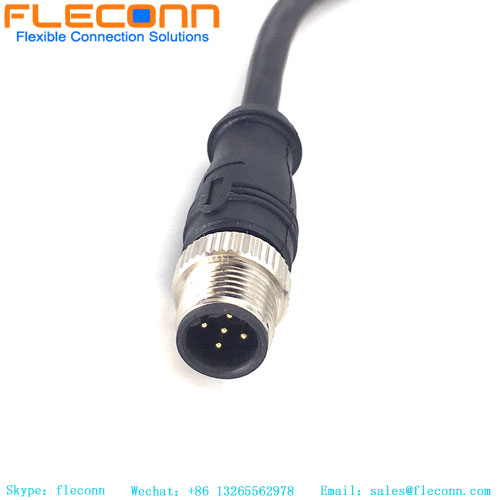

M12 5 Pos Male To Female Cable, IP67 IP68 Circular Molded Cable

M12 5 Pos Male To Female Cable, IP67 IP68 Circular Molded Cable

M12 5 Pos Male To Female Cable, IP67 IP68 Circular Molded Cable

M12 5 Pos Male To Female Cable, IP67 IP68 Circular Molded Cable

M12 5 Pos Male To Female Cable, IP67 IP68 Circular Molded Cable

M12 5 Pos Male To Female Cable, IP67 IP68 Circular Molded Cable

Description Review

Description

M12 5 Pos Male To Female Cable, IP67 IP68 Circular Molded Cable Product Description

M12 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. The insulation materials we commonly use are PVC, SR-PVC, PP, PE. The matching M12 board-end connectors (sockets) are soldered electronic wire type and PCB board pin type. M12 board-end soldering type can be welded electronic wire and resin potting package according to customer's reservation requirements.

M12 5 Pos Male To Female Cable, IP67 IP68 Circular Molded Cable product parameters

Product series: M12 Connector Cable	Connector Gender: Male To Female
Connector code: B type	Connector core number: 5P
Industry standard: IEC61076-2-101	Connector type: Single head with cable
Plug Guide: Straight	Terminal Material: Copper
Waterproof grade: IP67	Wiring method: welding wire
Adapter wire gauge: 20-26AWG	Connection method: threaded connection
Connector rubber core: PA66	Injection material: TPU
Rated current: 4A	Connector conductor: copper gold plated
Rated voltage: 60V	Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring	Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°	Wire cover: PVC/PUR

M12 5 Pos Male To Female Cable, IP67 IP68 Circular Molded Cable Applications

●Sensors, actuators, encoders, motors	●Industrial grating light curtains
●Factory automation process control	●Equipment battery, semiconductor
●Package label printing equipment	●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment	●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly	●LED outdoor display, outdoor LED lighting

M12 5 Pos Male To Female Cable, IP67 IP68 Circular Molded Cable

Other M12 Connector Cable
