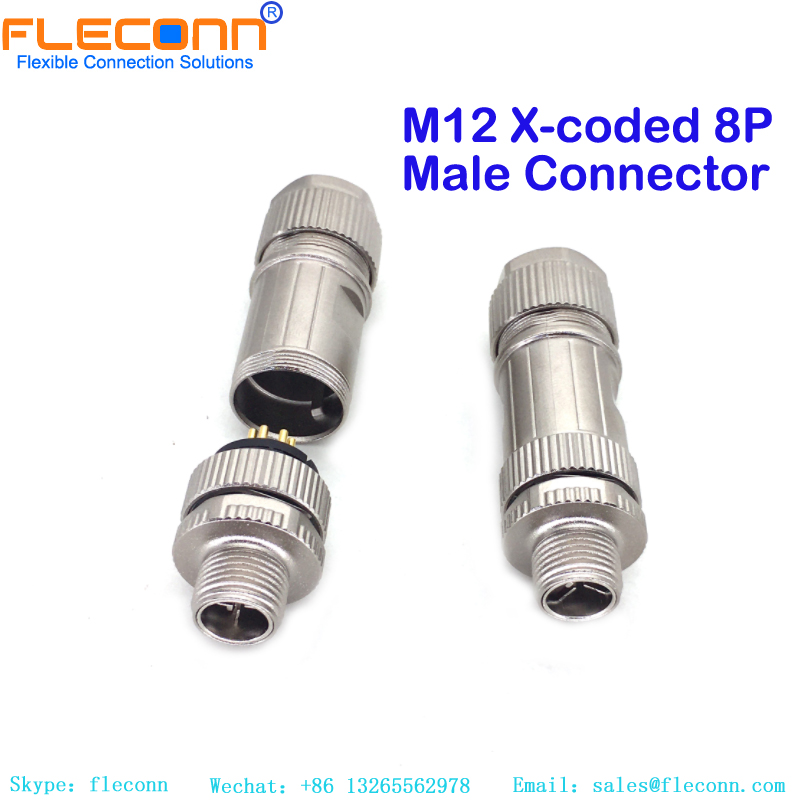

M12 8 Pin X-code Male Shielding Field Crimping Wireable Connector

Item No.: M12-X-M-MS-08P
Product Series: M12 X-coded Field Wireable Connector
Pin Numbers:  8 Pins / 8 Contacts
Gender: Male
Termination Type: Crimping Terminals
Feature: IP67 Water and Dustproof class when mated with compatible connector
Description Review
Description

M12 8 Pin X-code Male Shielding Field Crimping Wireable Connector Description

FLECONN can supply high quality and cost performance m12 8 pin x-code female connector with crimping terminals for industrial ethernet field wireable application. This connector can reach 10Gbps transmission rate connected with CAT6A / CAT7 cable.

Technical Data

M12 X-code Ethernet Connector , Crimp Termination

Mechanical and Electrical Parameters Reference Standard DIN EN 61076-2-109
Rated Current 0.5A
Rated Voltage 48V
Impulse Voltage 300V
Contact Resistance ≤10mΩ
Insulation Resistance ≥100MΩ
EMC Shielding Shielded
Corrosion Resistance Salt spray test > 48 Hours
Locking System M12x1.0mm Screw
Durability >500 mate/unmate cycles
Tightening Torque Recommended: 1.0Nm
Max: 1.2Nm
Materials Male Contact Phosphor Bronze
Contact Plating Gold (Au)
Insert Insulation Body PA66+GF, Black
Screw Nut Brass, CNC
Screw Nut Plating Nickel Plated
Outer Shell Zinc Alloy, Nickel Plated
O-ring Rubber
Cable Gland PA
Cable Gland Nut Zinc Alloy, Nickel Plated
Mated Cable Wire Contactor 26AWG~24AWG
Cable O.D. 6mm~8mm
Wire connection method Crimping terminals
Strip cable jacket length 20~25mm
Peel wire insulation length
Environmental Data Rated Temperature -25~80
Protection Degree IP67
Environmental Compliance RoHS2.0 2015/863 Amending Annex
Pollution Degree 3

M12 X-coded 8 Pin Male Connector
M12 8 Pin X-code Male Shielding Field Crimping Wireable Connectorr


M12 X-code Ethernet Connector Crimping Terminals
M12 X-code Ethernet Connector Crimping Terminals
