M12 8 Pin X Coded Female To Rj45 Ethernet Cable

Item No.: M12-X-AF-ST-08P-1M
FLECONN can produce high quality m12 8 pin x-coded female to rj45 ethernet cable.
Product series: M12 X-coded Connector Cable
Connector code: X-Coding
Gender: Female
Waterproof grade: IP67
Connector core number: 8Pins
Plug Guide: Straig
Description Review
Description

M12 8 Pin X Coded Female To Rj45 Ethernet Cable Product Description



M12 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. The insulation materials we commonly use are PVC, SR-PVC, PP, PE. The matching M12 board-end connectors (sockets) are soldered electronic wire type and PCB board pin type. M12 board-end soldering type can be welded electronic wire and resin potting package according to customer's reservation requirements.


The Mechanical and Electrical Characters for M12 8 Pin X Coded Female To Rj45 Male Ethernet Cable




Product series: M12 X-coded Connector Cable Connector Gender: Female
Connector code: X-Coding Connector core number: 8Pin
Industry standard: IEC61076-2-101 Connector type: Single head with cable
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Wiring method: Soldering wire
Adapter wire gauge: 24-28AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 0.5A Connector conductor: copper gold plated
Rated voltage: 48V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -40℃~ 80 ℃ Wire cover: PUR


M12 8-Pin X-Code Female To Rj45 Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

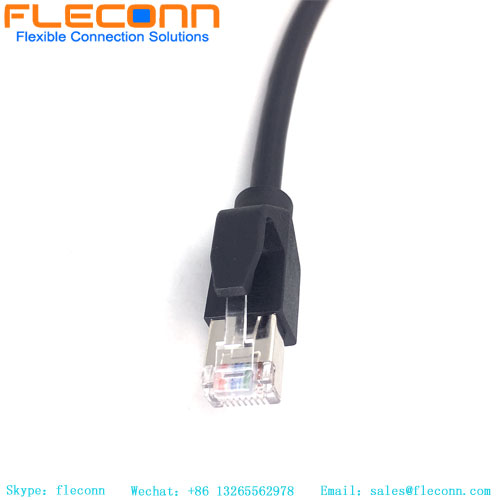

M12 8 Pin X Coded Female To Rj45 Ethernet Cable

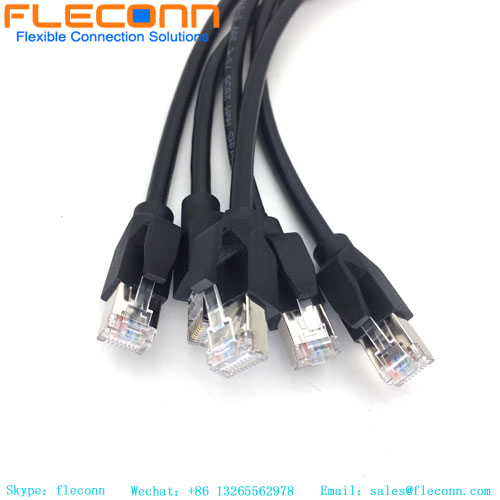

M12 Female To Rj45 Cable

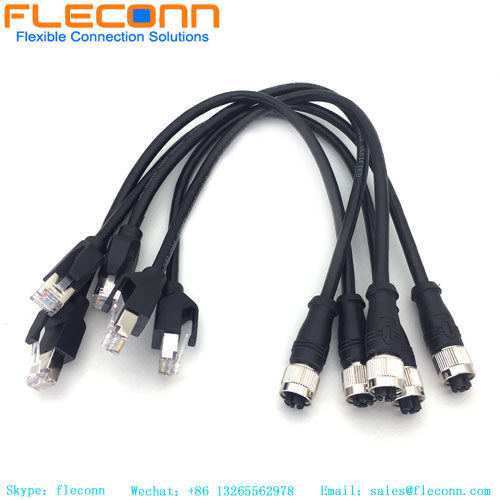

M12 X Coded Female To Rj45 Ethernet Cable
FLECONN can supply M12 X-coded Female To RJ45 Ethernet Cable

Other M12 Connector Cable

FLECONN can provide IP66 waterproof M12 8-bit X-coded female to RJ45 Ethernet cables for power and signal transmission connections.
