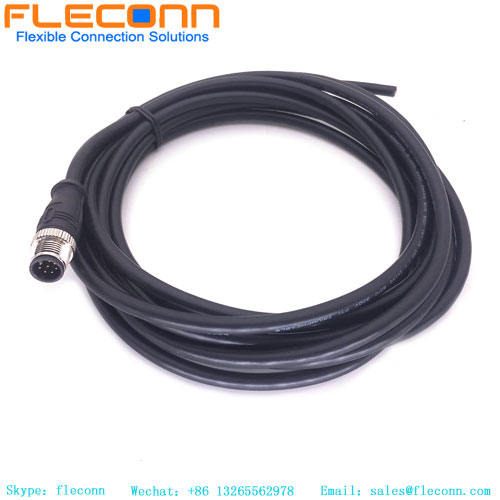

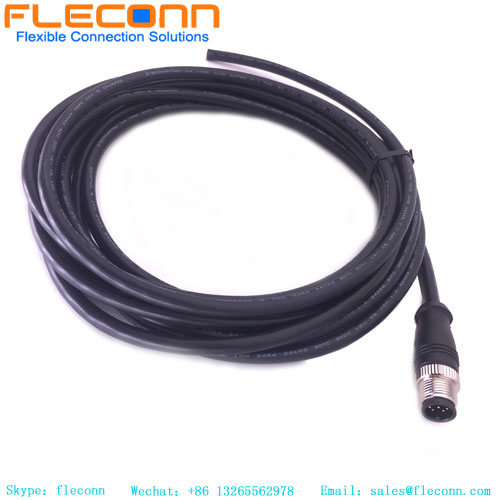

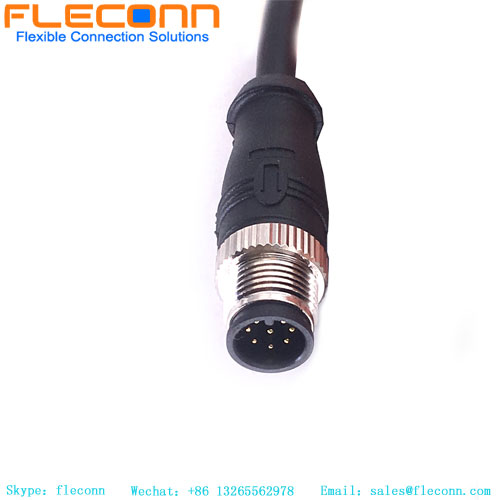

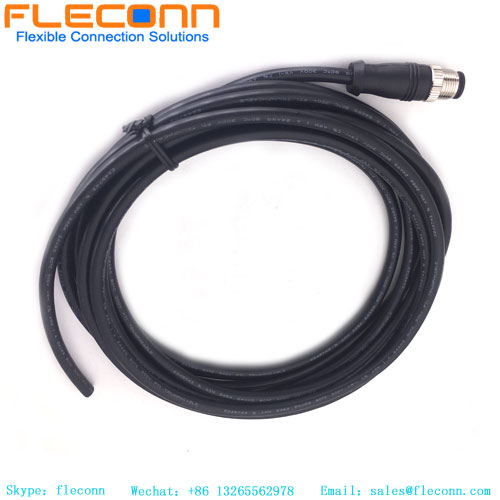

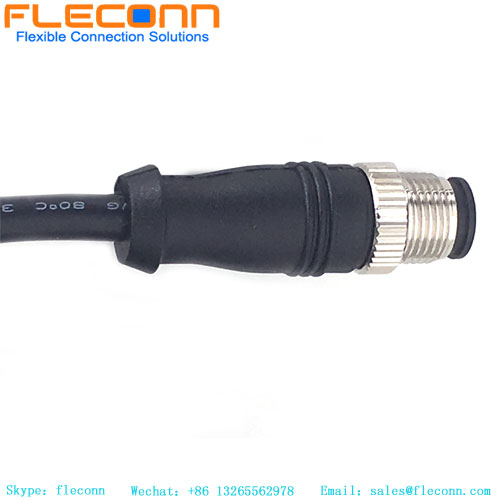

M12 8 Pole A-Coded Male Straight Connector Cable
M12 8 Pole A-Coded Male Straight Connector Cable M12 8 Pole A-Coded Male Straight Connector Cable M12 8 Pole A-Coded Male Straight Connector Cable M12 8 Pole A-Coded Male Straight Connector Cable M12 8 Pole A-Coded Male Straight Connector Cable

M12 8 Pole A-Coded Male Straight Connector Cable

Item No.: M12-A-M-ST-08P
Product series: M12 Connector Cable
Connector code: A type
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 8P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 8 Pole A-Coded Male Straight Connector Cable Product Description



M12 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. The insulation materials we commonly use are PVC, SR-PVC, PP, PE. The matching M12 board-end connectors (sockets) are soldered electronic wire type and PCB board pin type. M12 board-end soldering type can be welded electronic wire and resin potting package according to customer's reservation requirements.


M12 8 Pole A-Coded Male Straight Connector Cable product parameters



Product series: M12 Connector Cable Connector Gender: Male
Connector code: A type Connector core number: 8P
Industry standard: IEC61076-2-101 Connector type: Single head with cable
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Adapter wire gauge: 20-26AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 2A Connector conductor: copper gold plated
Rated voltage: 30V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR


M12 8 Pole A-Coded Connector Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M12 8 Pole A-Coded Male Straight Connector Cable
M12 8 Pole A-Coded Male Straight Connector Cable

M12 8 Pin Sensor Cable, Waterproof IP67 IP68 Circular Molded Cable

M12 8P A-Coded Male Cable, Straight, PUR Jacket

M12 8 Pos Connector Cable, A-coding, IP67 IP68 Waterproof

M12 8 Pin Extension Cable, A-Coded PUR Jacket Circular Connector Cable

Other M12 Connector Cable

FLECONN can provide IP66 waterproof M12 8-bit X-coded female to RJ45 Ethernet cables for power and signal transmission connections.
