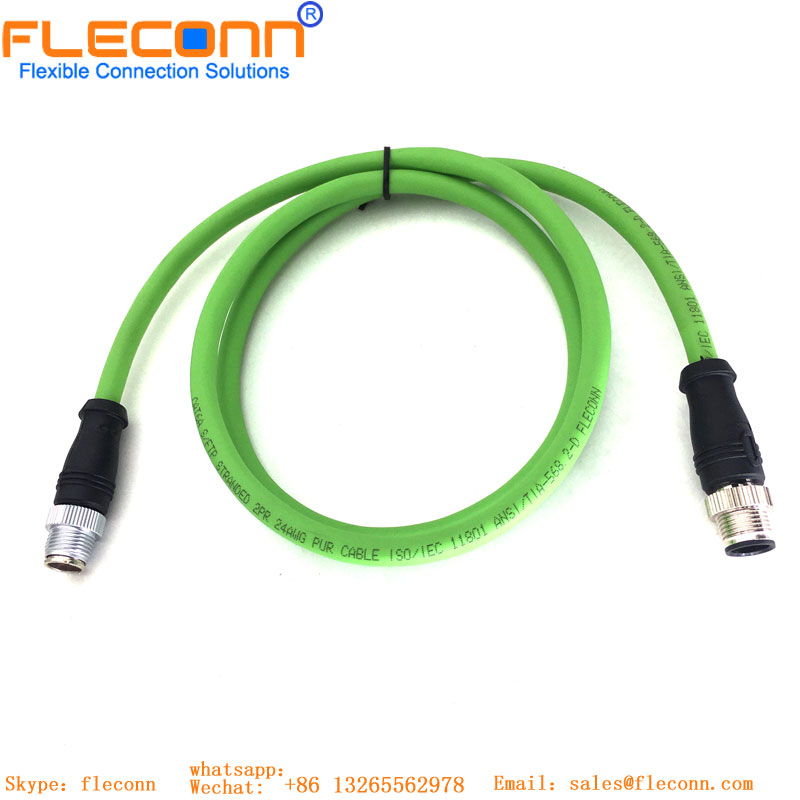

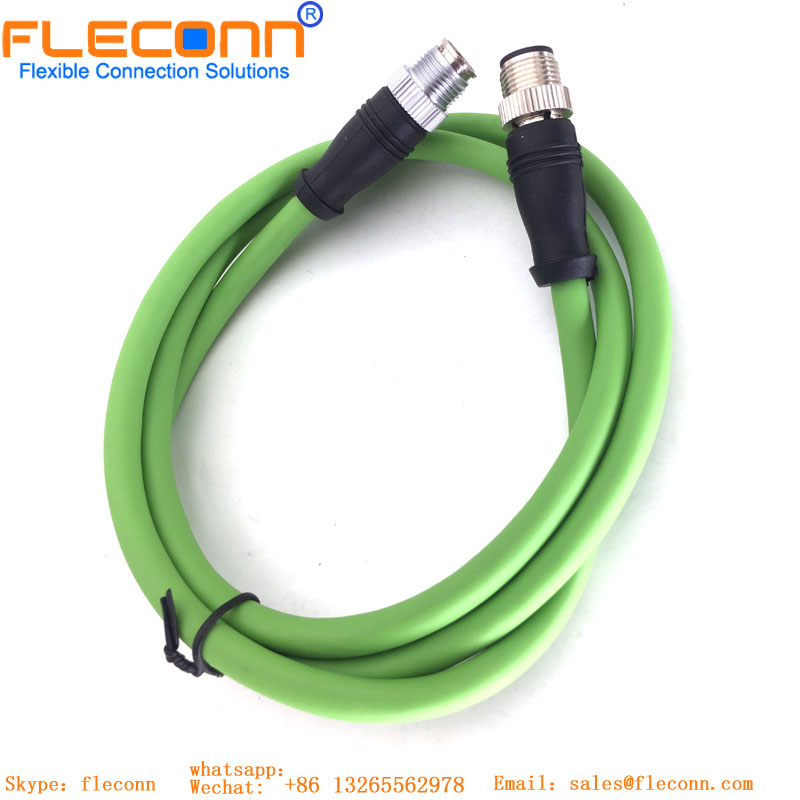

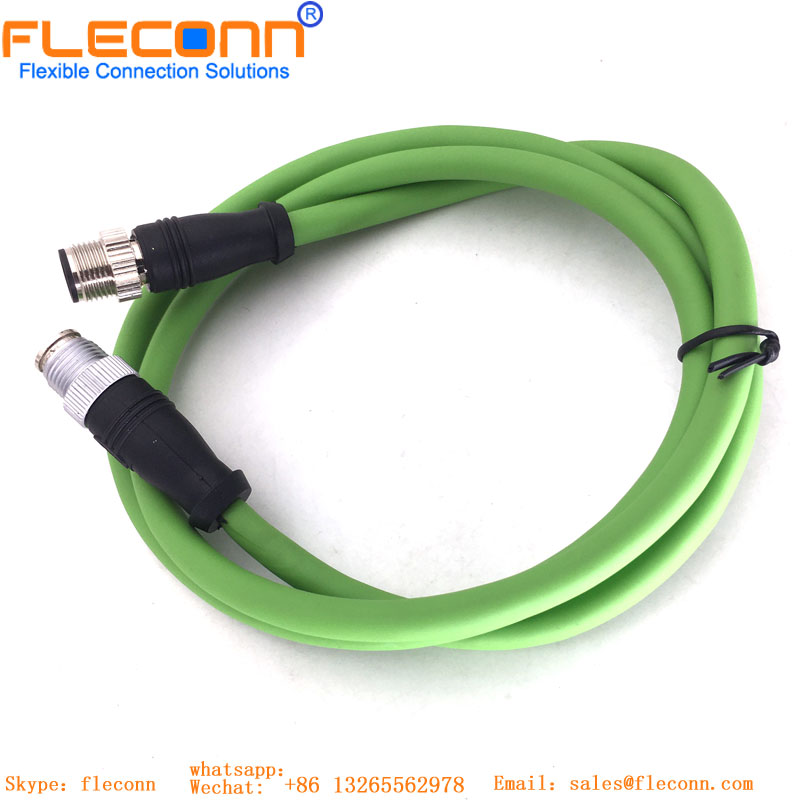

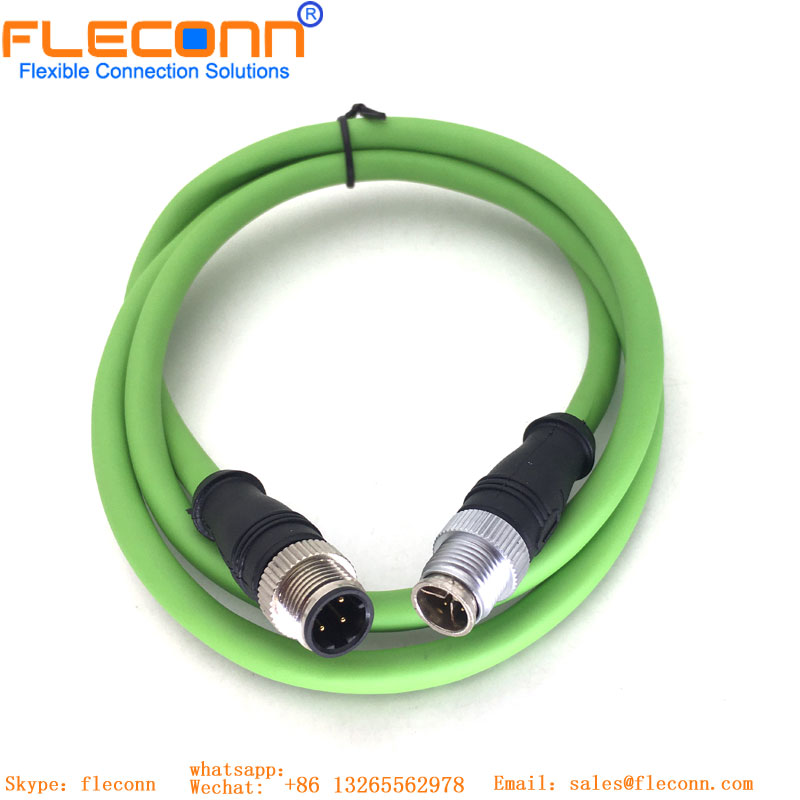

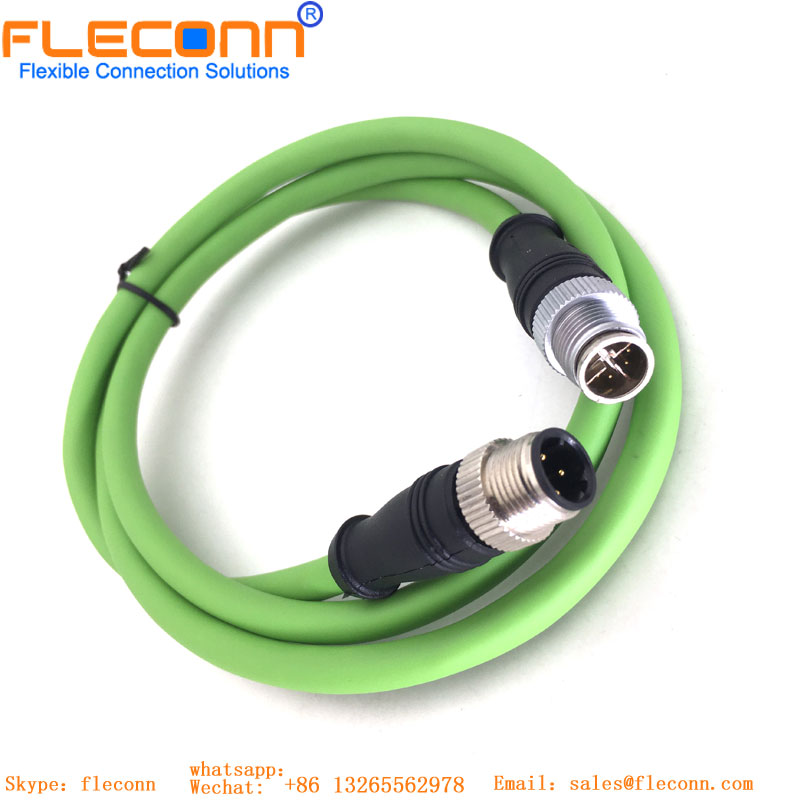

M12 D-coded To X-coded Ethernet Cable
M12 D-coded To X-coded Ethernet Cable M12 D-coded To X-coded Ethernet Cable M12 D-coded To X-coded Ethernet Cable M12 D-coded To X-coded Ethernet Cable M12 D-coded To X-coded Ethernet Cable

M12 D-coded To X-coded Ethernet Cable

Item No.: M12-DM-XM-ST-04P-08P--TPU-20M
Fleconn can provide high-quality M12 D-coded To X-coded Ethernet Cables for industrial automation and network applications.
Product series: M12 Cable Assembly
Coding: D-coded To X-coded
Gender: Male
Waterproof grade: IP67
Contact number: 4-Pin -8 P
Request Quote
Description Review
Description

M12 D-coded To X-coded Ethernet Cable Description



M12 D-coded To X-coded Ethernet Cable has been overmolded before leaving the factory. Our normal cable outer jacket's material is PUR or PVC, and the internal core wire insulation maybe PVC, SR-PVC, PP, PE required according to the application of the product. The core wire conductor may be 22AWG, 24AWG, 26AWG, 28AWG with unique insulation color code. The single wire conductor is mult-strands and soldered into each terminal on the m12 molding type connector. The outer moulding material of all of our m12 connector and cable is TPU resin. The matched M12 board-end connectors (sockets) are m12 panel mount connector with soldered wire terminals and PCB DIP terminals. There are two types of m12 pcb panel mount connector with straight and 90 degree right angle. This M12 D-coded To X-coded Ethernet Cable  can reach IP67 / IP68 waterproof rating according to customer's application requirements.


M12 4 Pin Male To 8 Pin Male Cable product parameter


Product series: M12 Connector Cable Connector Gender: Male
Connector code: D-Coded To X-Coded Connector core number: 4Pin-8Pin
Industry standard: IEC61076-2-101 Connector type: Single head with cable
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Adapter wire gauge: 20-26AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 250V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR


M12 Male To Male Connector Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

M12 D-coded To X-coded Ethernet Cable

M12 D-coded To X-coded Ethernet Cable

M12 4 Pin D-coded To 8 Pin X-coded Connector Cable

M12 D-coded To X-coded Connector Cable

M12 Male To Male Connector Cable

M12 4 Pin Male To 8 Pin Male Cable

Other M12 Connector Cable

FLECONN can provide IP66 waterproof M12 8-bit X-coded female to RJ45 Ethernet cables for power and signal transmission connections.
