Home > M5 M8 M12 M16 Connector & Cable Assembly > M12 Connector > M12 Field Installable Connector-Metal Shell

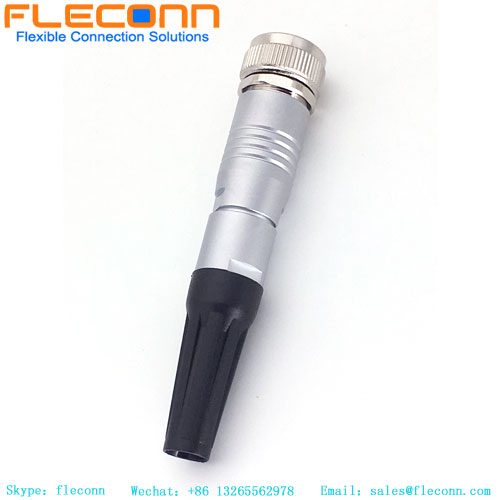

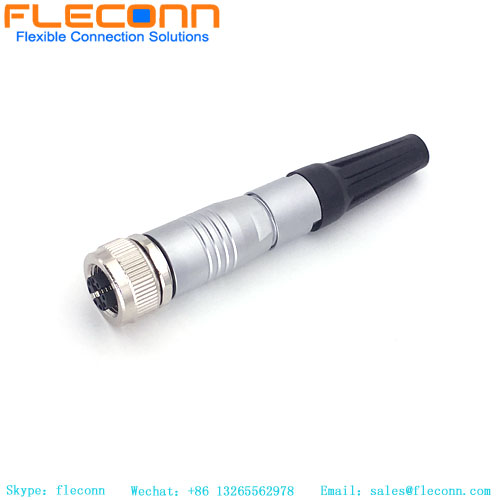

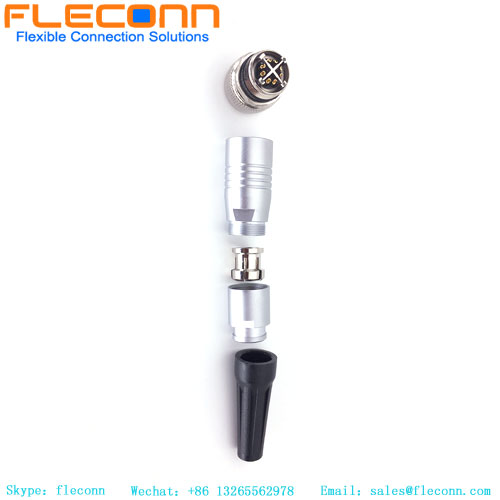

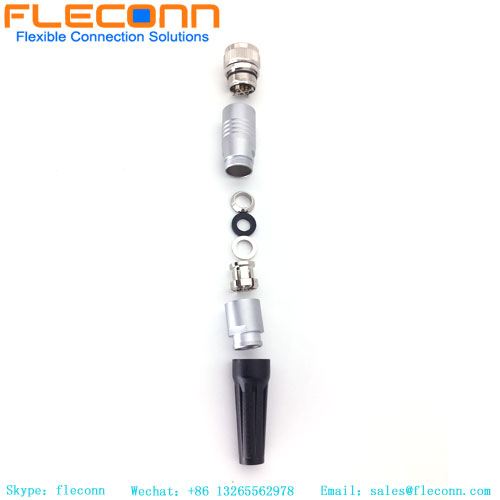

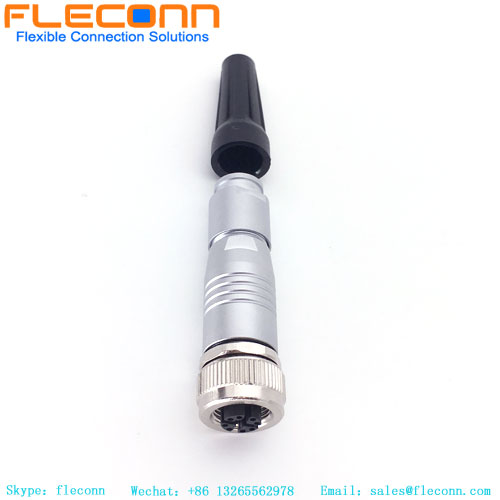

M12 Female Metal Assembled Connector
M12 Female Metal Assembled Connector M12 Female Metal Assembled Connector M12 Female Metal Assembled Connector M12 Female Metal Assembled Connector M12 Female Metal Assembled Connector

M12 Female Metal Assembled Connector

Item No.: 00302
Product series: M12 Connector
Connector code: X type
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 8P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 Female Metal Assembled Connector Product Description



FLECONN, as a professional m12 connector supplier, could supply IP67 / IP68 waterproof 3 pin 4 pin 5 contacts 6 positions 8 pin 12 pin 17 pole male and female m12 connector such as A-coded sensor connector, B-coded fieldbus connector for profibus and interbus, C-coded, D-coded connector for industrial Ethernet, Profinet, Ethernet IP and EtherCat and X-coded high-speed 10Gbit rugged industrial Ethernet connector. These m12 connectors are classified as field wireable/installable/attachable, molding type, panel mounting type and they are widely used in automation sensor and actuator, industry ethernet cable connection.


M12 Female Metal Assembled Connector product parameters



Product series: M12 Connector Connector Gender: Female
Connector code: X type Connector core number: 8P
Industry standard: IEC61076-2-101 Connector type: Field Wireable
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 48V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M12 Female Metal Assembled Connector Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M12 Female Metal Assembled Connector
M12 Female Metal Assembled Connector

M12 X-Coded 8 Pin Female Metal Shell Connector

M12 Female X-Coding Connector

M12 Circular Metal Sensor Connector

M12 X-Coded Metal Assembled Plug

Other M12 Panel Mount Connector

FLECONN can provide IP66 waterproof M12-X 8 Pin Panel Mount Connector for power and signal transmission connections.
