Home > M5 M8 M12 M16 Connector & Cable Assembly > M12 Connector > M12 PCB Panel Mount Connector - 90 Degree Pins

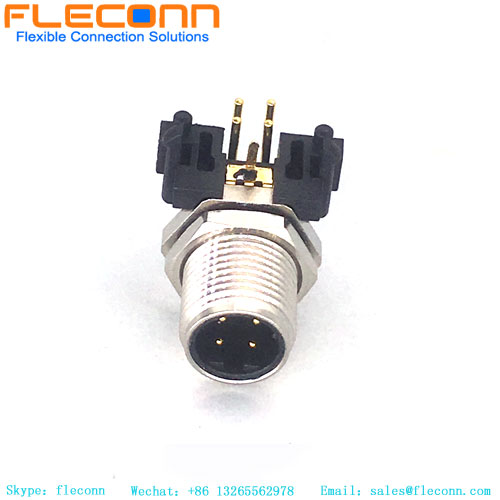

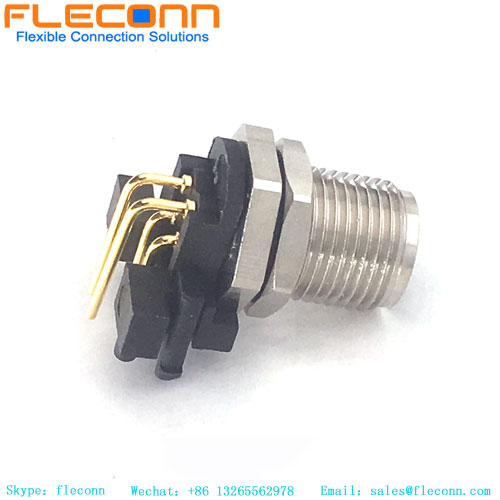

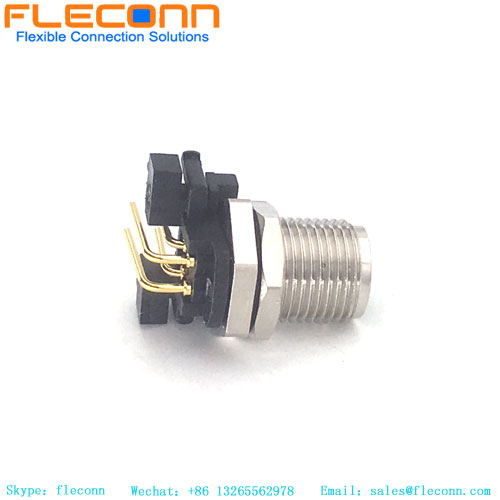

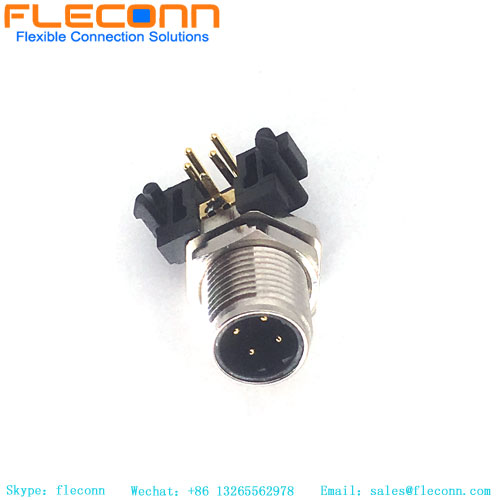

M12 Panel Mount Receptacle, 4 Pole A-coded Waterproof Connector
M12 Panel Mount Receptacle, 4 Pole A-coded Waterproof Connector M12 Panel Mount Receptacle, 4 Pole A-coded Waterproof Connector M12 Panel Mount Receptacle, 4 Pole A-coded Waterproof Connector M12 Panel Mount Receptacle, 4 Pole A-coded Waterproof Connector M12 Panel Mount Receptacle, 4 Pole A-coded Waterproof Connector

M12 Panel Mount Receptacle, 4 Pole A-coded Waterproof Connector

Item No.: M12-A-M-PM-RA-04P-01
Product series: M12 Panel Mount Connector
Connector code: A type
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 4P
Plug Guide: Right Angle
Request Quote
Description Review
Description

M12 Panel Mount Receptacle, 4 Pole A-coded Waterproof Connector Product Description



M12 panel mount connector with 3 4 5 6 8 12 17 Pin male plug and female socket and gold-plated contacts available can be provided by FLECONN. In order to determine the direction of the angled cable outlet of the mating connector,  we can provide 90 degree right angled M12 panel mount connectors with 4, 5 and 8 position in wire solder pin and PCB DIP solder pin. When completely mated the connectors are IP67 rated to ensure protection from liquids and dust.


M12 Panel Mount Receptacle, 4 Pole A-coded Waterproof Connector product parameters



Product series: M12 Panel Mount Connector Connector Gender: Male
Connector code: A type Connector core number: 4P
Industry standard: IEC61076-2-101 Connector type: Panel type, front lock
Plug Guide: Right Angle Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 250V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ

M12 Panel Mount Receptacle, 4 Pole A-coded Waterproof Connector Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M12 Panel Mount Receptacle, 4 Pole A-coded Waterproof Connector
M12 Panel Mount Receptacle, 4 Pole A-coded Waterproof Connector


M12 Female Connector 4 Pin A-Coding Right Angle PCB Panel Mount Connector


M12 A-Code 12 Pole 90 Degree Panel Mount Connector

M12 Connector 4 Pin Male Panel Right Angled PCB Socket Sensor Connectors

M12 Connector 4 Pin A-Coded Panel Right Angle Female Receptacles

Other M12 Panel Mount Connector

FLECONN can provide high quality 180 degree straight 3 pin 4 pin 5 pole 6 positions 8 pin male and female a-code b-code c-code d-code l-code k-code s-code t-code x code m12 pcb panel mount connector with PG9 and m16x1.5 front and rear fastening thread.
