Home > M5 M8 M12 M16 Connector & Cable Assembly > M12 Connector > M12 PCB Panel Mount Connector-Straight

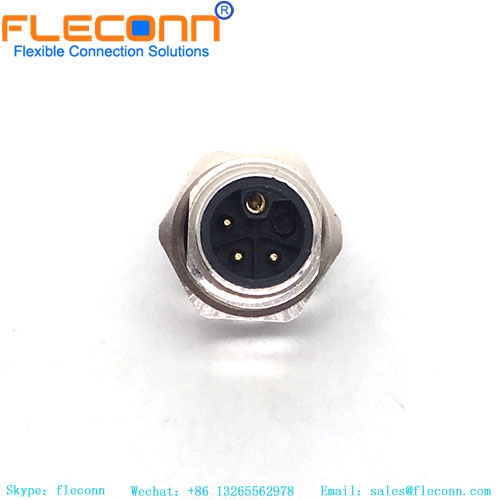

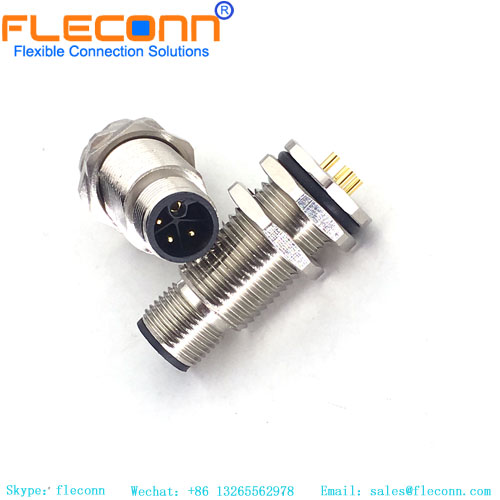

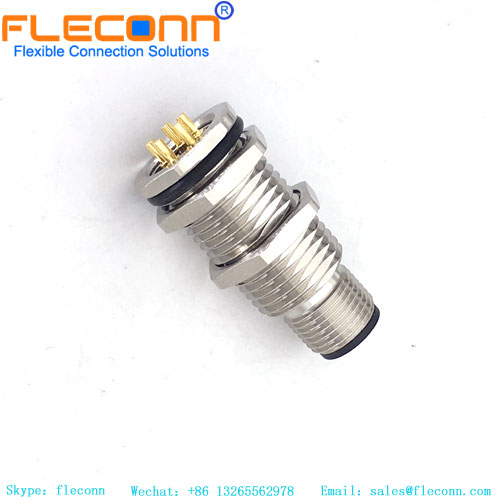

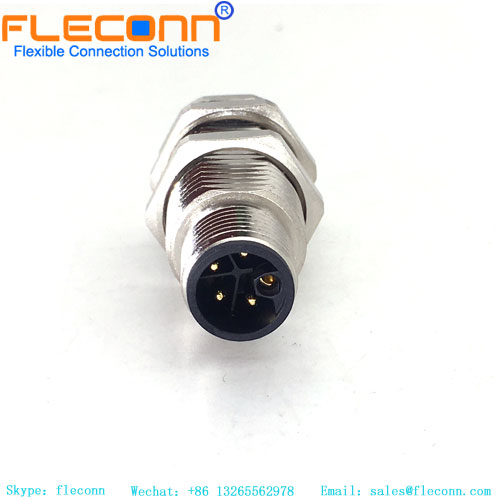

M12 L-Coded Connector PCB Panel Mount , 5 Pin Male Power Connector
M12 L-Coded Connector PCB Panel Mount , 5 Pin Male Power Connector M12 L-Coded Connector PCB Panel Mount , 5 Pin Male Power Connector M12 L-Coded Connector PCB Panel Mount , 5 Pin Male Power Connector M12 L-Coded Connector PCB Panel Mount , 5 Pin Male Power Connector M12 L-Coded Connector PCB Panel Mount , 5 Pin Male Power Connector

M12 L-Coded Connector PCB Panel Mount , 5 Pin Male Power Connector

Item No.: M12-L-F-PM-ST-05P
FLECONN can suppIy pcb panel mount 5 pin male m12 l-coded connector that's equivalent to TE  T4140L12031-000, T4140L12041-000, T4140L12051-000.
Product series: M12 Panel Mount Connector
Connector Gender: Male
Waterproof grade: IP67
Plug Guide: Straig
Request Quote
Description Review
Description

M12 L-Coded 5-Pin Male PCB Panel Mount Power Connector Product Description

FLECONN can supply M12 L-Coded 2P+PE, 3P+PE, 4P+PE 3 4 5 Pin Male Rear Panel Mount  Power Connector with longer PG9 front fastening thread for DC applications. It is equivalent to TE M12 L-code 2P+PE 3 positions 3P+PE 4 position 4p+PE 5 position Male Rear Mount PCB solder power connector T4140L12031-000, T4140L12041-000, T4140L12051-000.

M12 5 Pin Male L Code Panel Mount Connector product parameters



Product series: M12 Panel Mount Connector Connector Gender:Male
Connector code: L-coded Connector core number: 4+PE
Industry standard: IEC61076-2-109 Connector type: Panel type, front lock
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 14-16AWG Connection method: threaded connection
Rated current: 12-16A Connector conductor: copper gold plated
Rated voltage: 50V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M12 L Coded Front Panel Mount Power Connector

M12 Power L-Coded 5-Pin Panel Mount Connector


M12 5 Pin Male L Code Panel Mount Connector


M12 5 Pin Power Connector,Panel Mount ,Male ,L-Code

M12 5 Pin Power L-Code Panel-Mount PCB Connectors

M12 L Code Power Panel Front Mount Connector

Other M12 Panel Mount Connector

FLECONN can provide high quality 180 degree straight 3 pin 4 pin 5 pole 6 positions 8 pin male and female a-code b-code c-code d-code l-code k-code s-code t-code x code m12 pcb panel mount connector with PG9 and m16x1.5 front and rear fastening thread.
