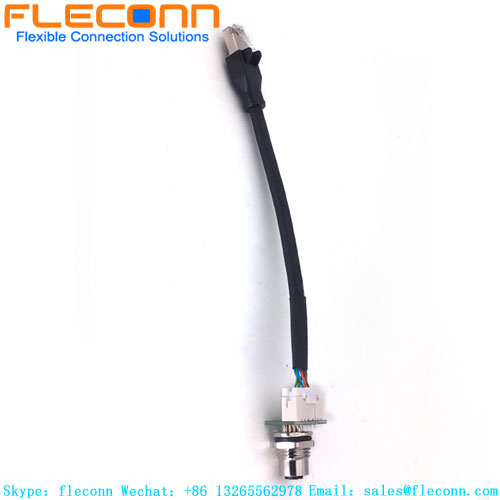

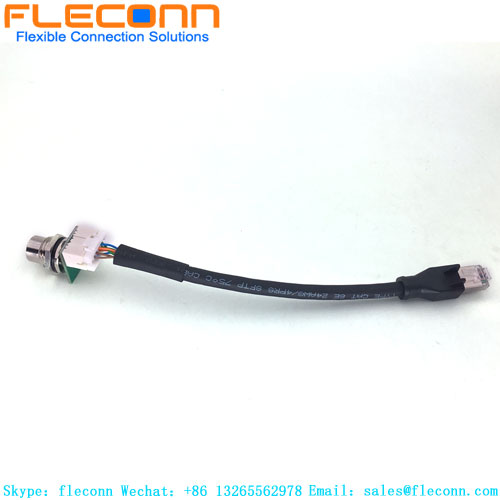

M12 X-Coded Female Panel Mount Connector to RJ45 cable with XAD 2.5mm Pitch B10B-XADSS-N Board Connector

Item No.: M12-X-JST-B10B-XADSS-N-RJ45
Product Name: M12 X-Code JST 2.5mm B10B-XADSS-N to RJ45 cable
Connector : B10B-XADSS-N
Gender:Female
Wire: UL 2464 AWG28#/ 26# /24#, PVC
Pitch Mating Interface:1.0mm
Description Review
Description

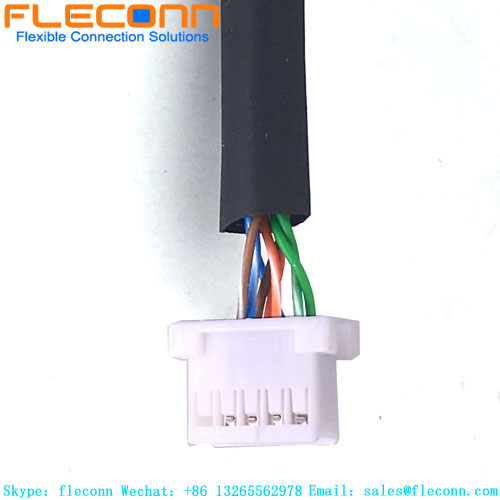

M12 X Code Feamel Panel Mount to JST XAD B10B-XADSS-N to RJ45 cable



FLECONN can custom M12 x Code to 2.5mm pitch JST XAD to RJ45 2 Row wire to wire connector harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.

M12 X Code Female Panel  Mount Socket Receptacle to RJ45 cable parameters




Product Name: M12 x code to rj45 cable Gender:Female
Type:Connector Cable Rating voltage: 250V AC DC
Cable Length and Color:Customized Wire/Cable Type:UL
Assembly Configuration:Dual Ended Connectors Material Resin:Nylon
Adapter wire gauge: 24AWG - 18AWG / 26AWG - 22AWG Certificate: RoHS CE
Operating temperature, fixed installation: -25° to +80°C Rating Current: 3.0A (22AWG)
Insulation OD: 1.3mm - 1.9mm / 0.9mm - 1.9mm / 0.9mm - 1.3mm Material Metal:Brass
 Service: Wiring Harness OEM  Insulation resistance: ≥100mΩ


M12 X Code Female Panel Mount Connector to RJ45 cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

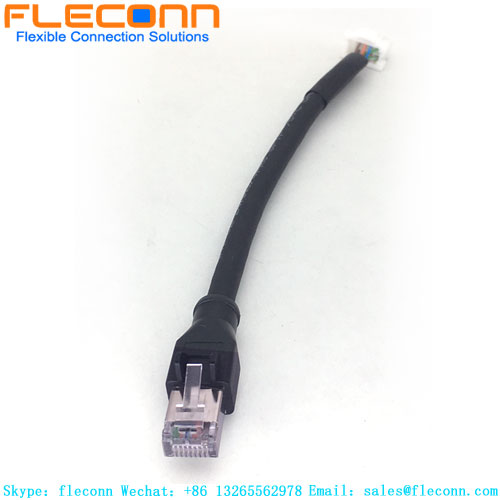

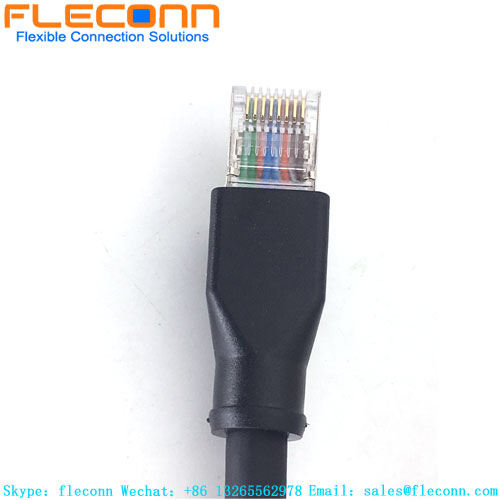

M12 X Code to RJ45 cable

M12 X-code 8 Pin Female Panel Mount Connector to RJ45 cable
