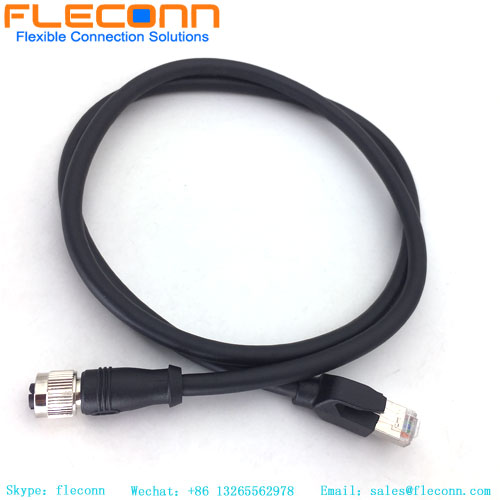

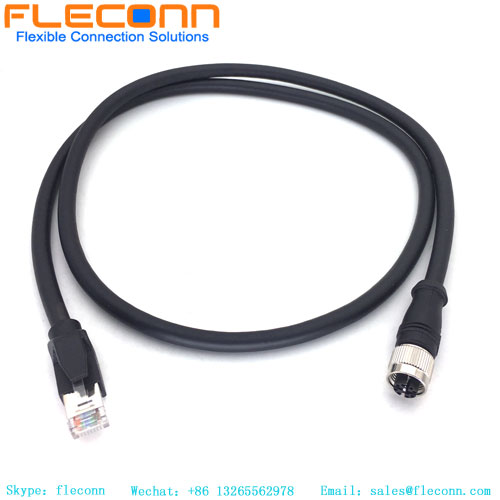

M12 X Coded Connector to RJ45 Cat6A Ethernet Cable
M12 X Coded Connector to RJ45 Cat6A Ethernet Cable M12 X Coded Connector to RJ45 Cat6A Ethernet Cable M12 X Coded Connector to RJ45 Cat6A Ethernet Cable M12 X Coded Connector to RJ45 Cat6A Ethernet Cable M12 X Coded Connector to RJ45 Cat6A Ethernet Cable

M12 X Coded Connector to RJ45 Cat6A Ethernet Cable

Item No.: 00336
FLECONN can produce m12 x-coded female  connector to rj45 ethernet cable with 10Gbps Cat6A Gigabit Cable.
Product series: M12 Connector Cable
Connector Coding: X-Coded
Gender: Female
Waterproof grade: IP67
Contact number: 8 Pin
Plug Guide: Straight
Request Quote
Description Review
Description

M12 X Coded Connector to RJ45 Cat6A Ethernet Cable Product Description



M12 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. The insulation materials we commonly use are PVC, SR-PVC, PP, PE. The matching M12 board-end connectors (sockets) are soldered electronic wire type and PCB board pin type. M12 board-end soldering type can be welded electronic wire and resin potting package according to customer's reservation requirements.


M12 X Coded to RJ45 Cat6A Ethernet Cable product parameters



Product series: M12 X-coded Connector Cable Connector Gender:  Female
Connector code: X-Coded type Connector core number: 8 Pin
Industry standard: IEC61076-2-101 Connector type: Single head with cable
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Adapter wire gauge: 20-26AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 0.5A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR


M12 X Coded to RJ45 Cat6A Ethernet Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

M12 X Coded 8 Pin Female Connector Cable

M12 X Coded 8Pin Female Connector to RJ45 Ethernet Cable

M12 X Coded 8Pin Female Connector to RJ45 Cat6A Industrial Ethernet Cable

FLECONN can supply high quality 10Gbps Cat6A RJ45 Gigabit Ethernet Cable

FLECONN can produce M12 X Coded to RJ45 Ethernet Cable for industry gigabit ethernet application.

Other M12 Connector Cable

FLECONN can provide IP66 waterproof M12 4-pin d-coded and 8-pin X-coded to RJ45 Ethernet cables for power and signal transmission connections.
