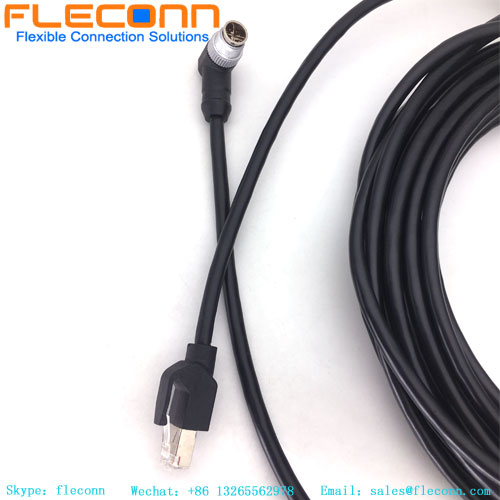

90 Degree Right Angled M12 X Coded 8 Pin Male To RJ45 Industrial Ethernet Cable

90 Degree Right Angled M12 X Coded 8 Pin Male To RJ45 Industrial Ethernet Cable

90 Degree Right Angled M12 X Coded 8 Pin Male To RJ45 Industrial Ethernet Cable

90 Degree Right Angled M12 X Coded 8 Pin Male To RJ45 Industrial Ethernet Cable

90 Degree Right Angled M12 X Coded 8 Pin Male To RJ45 Industrial Ethernet Cable

90 Degree Right Angled M12 X Coded 8 Pin Male To RJ45 Industrial Ethernet Cable

Description

Description

90 Degree Right Angled M12 X Coded 8 Pin Male To RJ45 Industrial Ethernet Cable Product Description

An "M12 X-coded connector" is a type of circular connector commonly used in industrial applications, particularly for Ethernet connections in harsh environments. The "X-coded" designation indicates that it is specifically designed for high-speed data transmission, typically up to 10 Gigabit Ethernet.

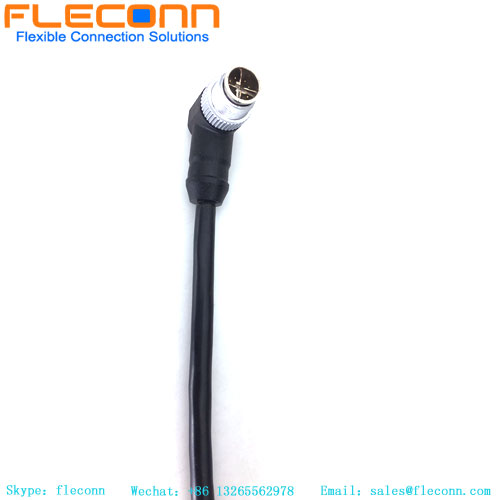

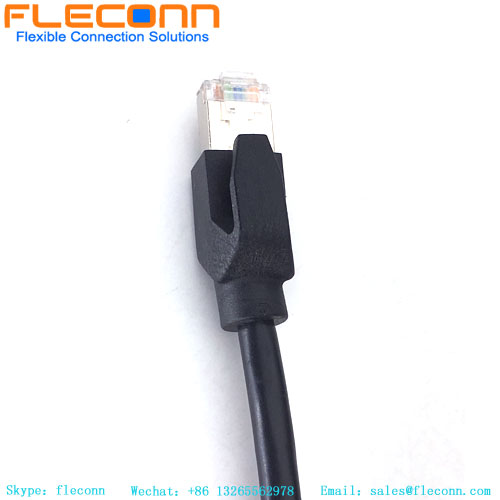

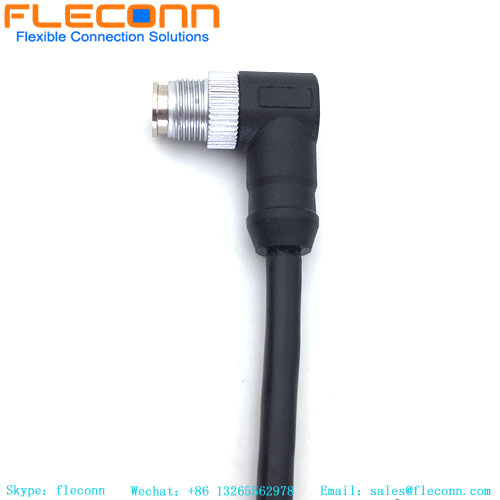

In this case, the gigabit cat6a cable mentioned is an industrial Ethernet cable with a 90 degree right angle molded M12 X-coded 8-pin male connector on one end and a straight molded RJ45 connector on the other end. The M12 connector is likely used for connecting to industrial equipment or machinery, while the RJ45 connector is more common in standard networking equipment such as switches, routers, and computers.

This right angle m12 x-coded 8 pin male to rj45 ethernet cable is often used in industrial automation, manufacturing, and other environments where reliable and robust Ethernet connections are required, even in challenging conditions like high vibration, moisture, or dust.

M12 X Coded 8 Pin Male 90 Degree Angle To RJ45 Ethernet Cable product parameters

Product series: M12 X-Coded to RJ45 Ethernet Cable	Connector Gender: Male
Connector code: X-Coded	Connector core number: 8 Pin
Industry standard: IEC61076-2-101	Connector type: Single head with cable
Plug Guide: Right Angle	Terminal Material: Copper
Waterproof grade: IP67	Wiring method: welding wire
Adapter wire gauge: 22-26AWG	Connection method: threaded connection
Connector rubber core: PA66	Injection material: TPU
Rated current: 0.5A	Connector conductor: copper gold plated
Rated voltage: 60V	Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring	Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°	Wire cover: PVC/PUR

M12 X Coded Male Right Angle To RJ45 Cable Applications

●Sensors, actuators, encoders, motors	●Industrial grating light curtains
●Factory automation process control	●Equipment battery, semiconductor
●Package label printing equipment	●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment	●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly	●LED outdoor display, outdoor LED lighting

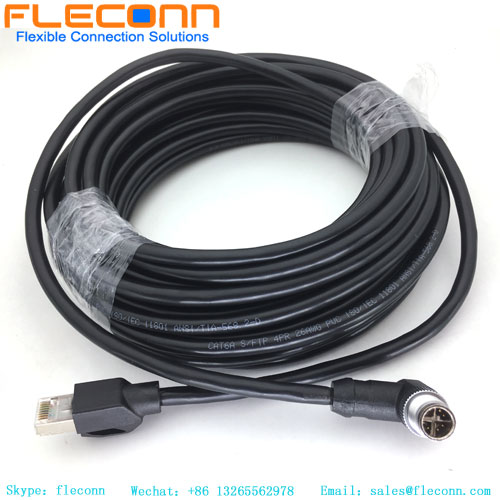

M12 X Coded Male Right Angle To Stragith RJ45 Connector Cable
