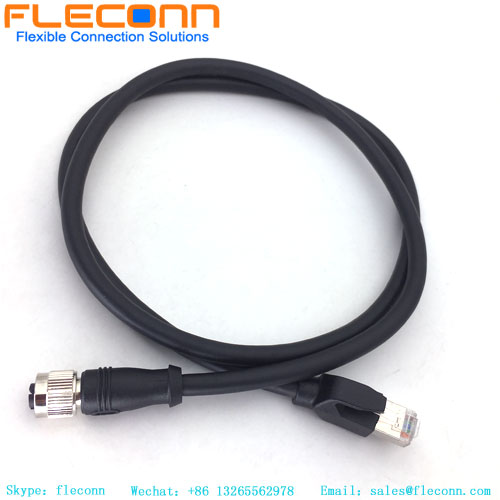

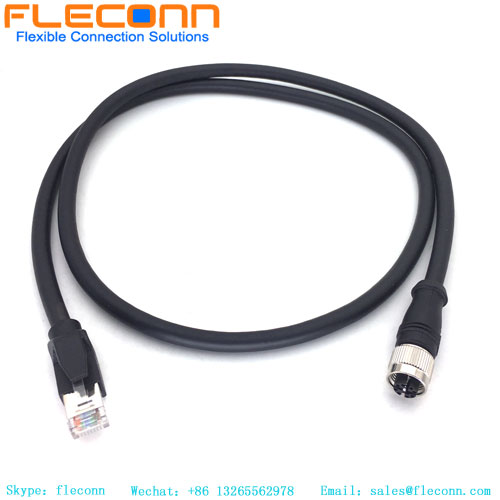

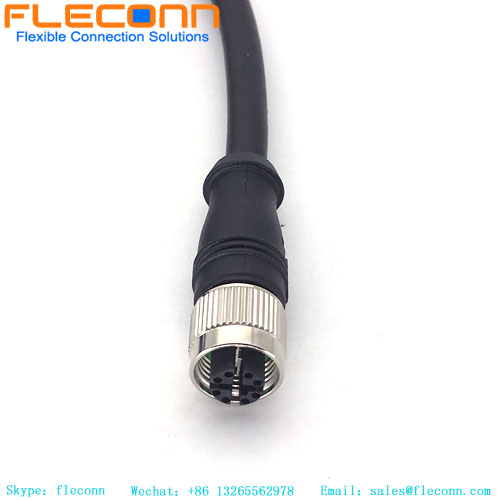

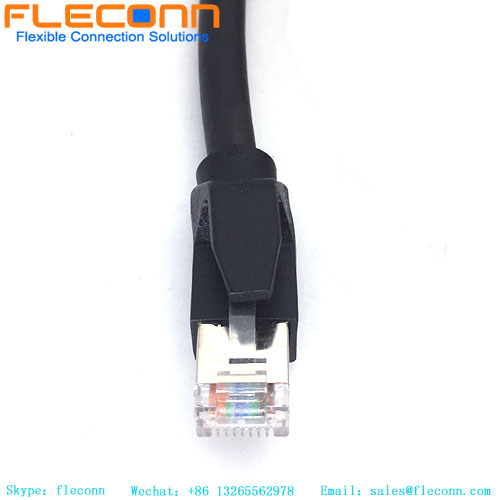

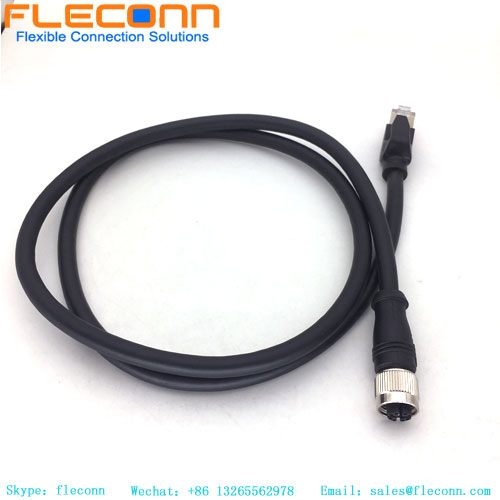

M12 X Coded To Rj45 Cable
M12 X Coded To Rj45 Cable M12 X Coded To Rj45 Cable M12 X Coded To Rj45 Cable M12 X Coded To Rj45 Cable M12 X Coded To Rj45 Cable

M12 X Coded To Rj45 Cable

Item No.: M12-X-F-ST-RJ45-08P-10M
FLECONN can manufacture high quality 10Gbps gigabit Cat6a Cat7 M12 X Coded To Rj45 Cable.
Product series: M12 Connector Cable
Connector code: X-Coded
Gender: Female
Waterproof grade: IP67
Contact number: 8-Position
Plug Guide: Straight
Request Quote
Description Review
Description

M12 X-Coded To Rj45 Ethernet Cable Product Description



M12 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. The insulation materials we commonly use are PVC, SR-PVC, PP, PE. The matching M12 board-end connectors (sockets) are soldered electronic wire type and PCB board pin type. M12 board-end soldering type can be welded electronic wire and resin potting package according to customer's reservation requirements.


M12 X Code To Rj45 Cable product parameters



Product series: M12 to RJ45 Ethernet Cable Connector Gender:  Female
Connector code: X-Coded type Connector core number: 8P
Industry standard: IEC61076-2-101 Connector type: Single head with cable
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Adapter wire gauge: 20-26AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 0.5A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR


M12 8 Pin X-Code To Rj45 Ethernet Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

M12 8 Pin X-Coded Female Ethernet Cable

IP67 M12 Industrial Ethernet X Coded 8Pin Female Connector Cable

M12 8 Pin X Code To Rj45 Ethernet Cable

10Gbps Cat 6 High Flexible RJ45 Straight Connector Cable

M12 X Coded to RJ45 Cat6A Ethernet Cable

Other M12 Connector Cable

FLECONN can provide IP66 waterproof M12 8-bit X-coded female to RJ45 Ethernet cables for power and signal transmission connections.
