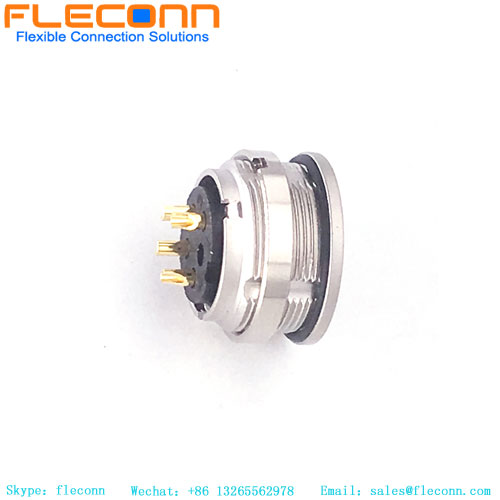

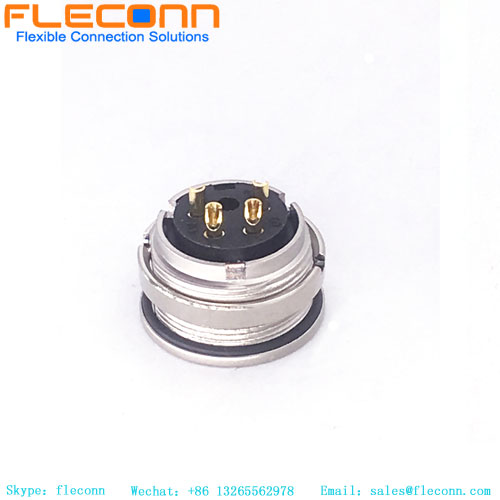

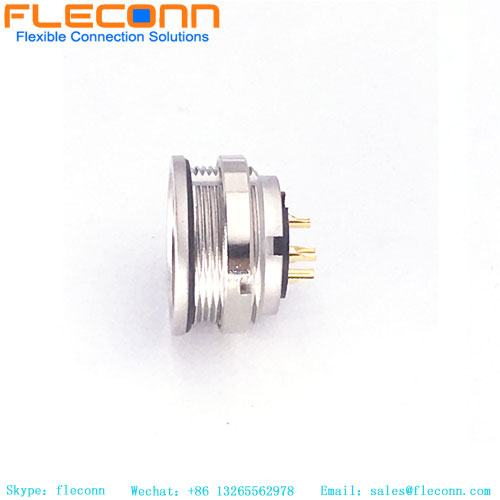

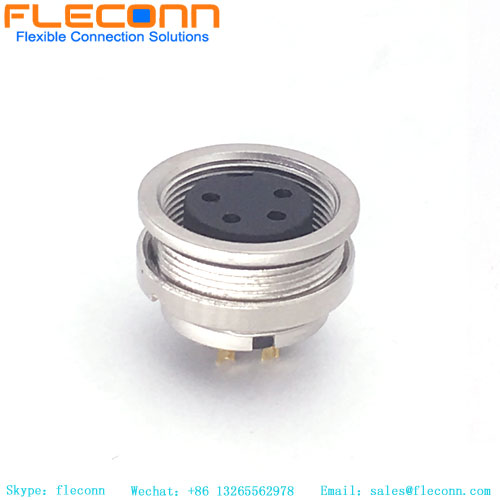

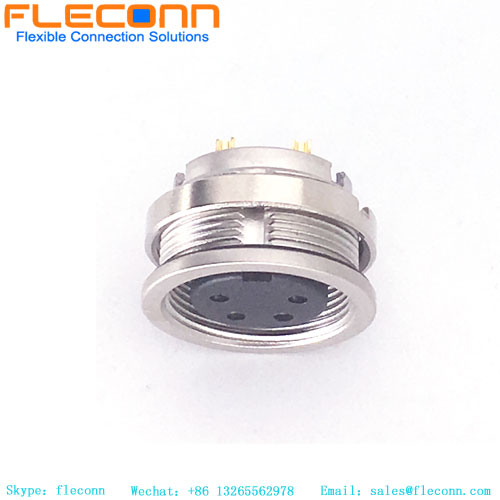

M16 A Coding female panel mount connector with 4 contacts, Rear Mount
M16 A Coding female panel mount connector with 4 contacts, Rear Mount M16 A Coding female panel mount connector with 4 contacts, Rear Mount M16 A Coding female panel mount connector with 4 contacts, Rear Mount M16 A Coding female panel mount connector with 4 contacts, Rear Mount M16 A Coding female panel mount connector with 4 contacts, Rear Mount

M16 A Coding female panel mount connector with 4 contacts, Rear Mount

Item No.: M16--F-ST-PCB-04P
Product series: M16 Panel Mount Connector
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 4P
Plug Guide: Straight
Request Quote
Description Review
Description

M16 A Coding female panel mount Connector Product Description



M16 Circular Connectors have field attachable Male Plug and panel mount female receptacle. M16 series brass nckel plated flex body connectors can reach IP67 waterproof and dustproof class when mated with compatible connector. The A-Code connector has 3, 4, 5, 6, 8, 12 Pole / Pin solder terminals. This series connector can be used in automation sensor connection.

M16 A Coding female panel mount Connector product parameters



Product series: M8 Panel Mount Connector Connector Gender: Female
Shield connection: cable clamp Connector core number: 4P
Industry standard: IEC61076-2-101 Connector type: Field assembly
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M16 A Coding female panel mount Connector Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M16 A Coding female panel mount Connector Picture

Other M16 Connector

FLECONN can provide IP66 waterproof M8 3Pin Connector for power and signal transmission connections.
