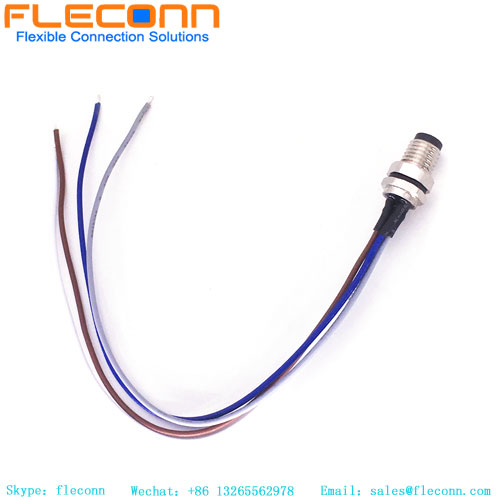

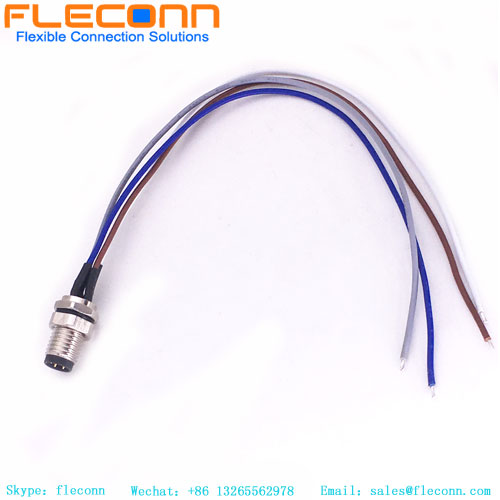

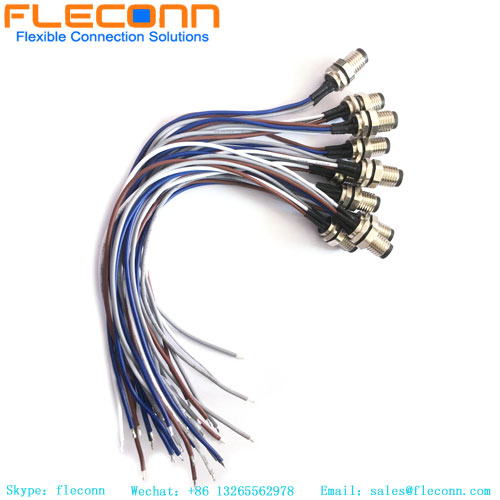

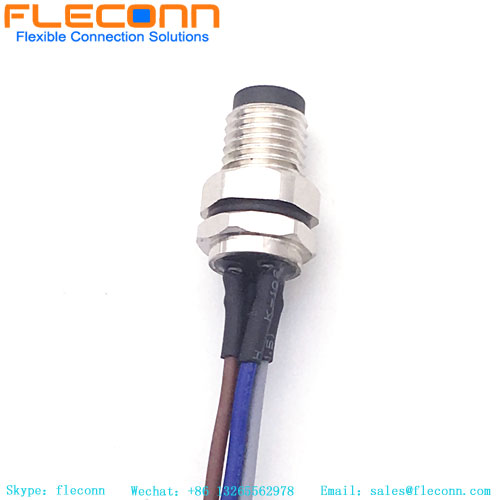

M8 4 Pin Male Panel Mount Connector Cable, IP67 Waterproof Straight Plug Cable
M8 4 Pin Male Panel Mount Connector Cable, IP67 Waterproof Straight Plug Cable M8 4 Pin Male Panel Mount Connector Cable, IP67 Waterproof Straight Plug Cable M8 4 Pin Male Panel Mount Connector Cable, IP67 Waterproof Straight Plug Cable M8 4 Pin Male Panel Mount Connector Cable, IP67 Waterproof Straight Plug Cable M8 4 Pin Male Panel Mount Connector Cable, IP67 Waterproof Straight Plug Cable

M8 4 Pin Male Panel Mount Connector Cable, IP67 Waterproof Straight Plug Cable

Item No.: M8-B-M-ST-PCB-04P-300MM
Product series: M8 Panel Mount Connector Cable
Connector code: A-code
Connector Gender: Male
Waterproof grade: IP67
Connector core number:  4 Pin 4 contacts
Plug Guide: Straight
Request Quote
Description Review
Description

M8 4 Pin Male Panel Mount Connector Cable Connector Product Description



FLECONN could supply various m8 male and female panel mount connectors. These m8 circular connectors may be classified as straight and 90 degree right angle m8 panel mount connectors, shielded and unshielded pcb panel mount connectors, front and rear panel mount, front and rear fasten screw thread, wire solder pin and DIP solder pin connectors. There are 3 4 5 6 8 pin / pole / positions male and female m8 panel mount connectors available for connection systems of various sensor, industry automation equipment, robot and machine.


M8 4 Pin Male Panel Mount Connector Cableproduct parameters



Product series: M8 Panel Mount Connector Connector Gender: Male
Connector code: A-code Connector core number: 4-pole
Industry standard: IEC61076-2-101 Connector type: Panel mount
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


The Applications for M8 4 Pin Male Panel Mount Connector with customized length of wire leads



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M8 4 Pin Male Front Fastened Panel Mount Connector with soldered wires Picture

M8 4 Pin Panel Mount Connector, Rear Lock Solder Wire with Cable


M8 4 Pin Male Panel Mount Cable, IP67 waterproof straight connector cable

Custom M8 3 4 5 6 8 Pin Panel Mount Cable Connector


Custom 3 4 5 6 8 Pin M8 Plug Connector Wire, Panel Mount IP68 Waterproof Cable

Other M8 Panel Mount Connector With Free Wire Leads

FLECONN can provide various m8 3 4 5 6 8 pin male and female front and rear panel mount connector with free wire leads for sensors.
