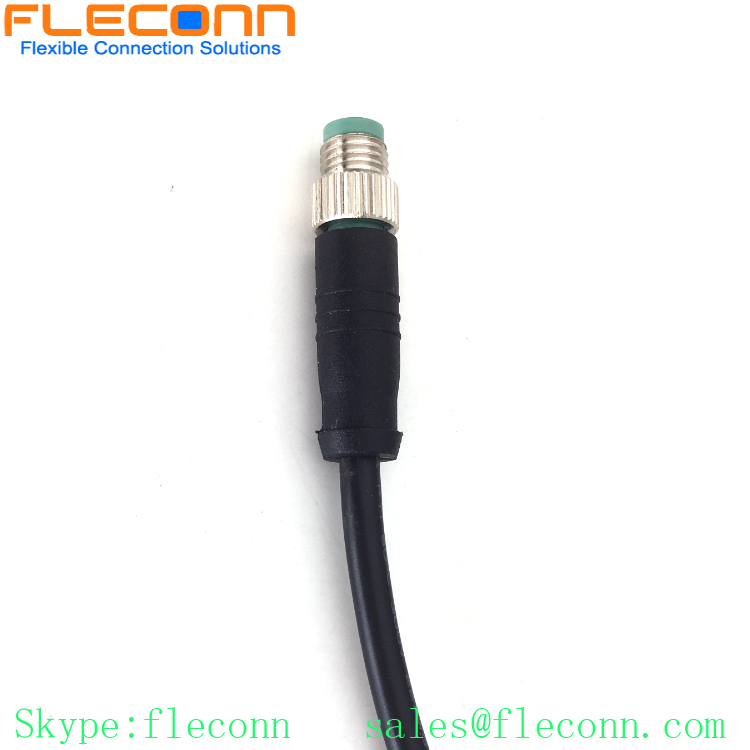

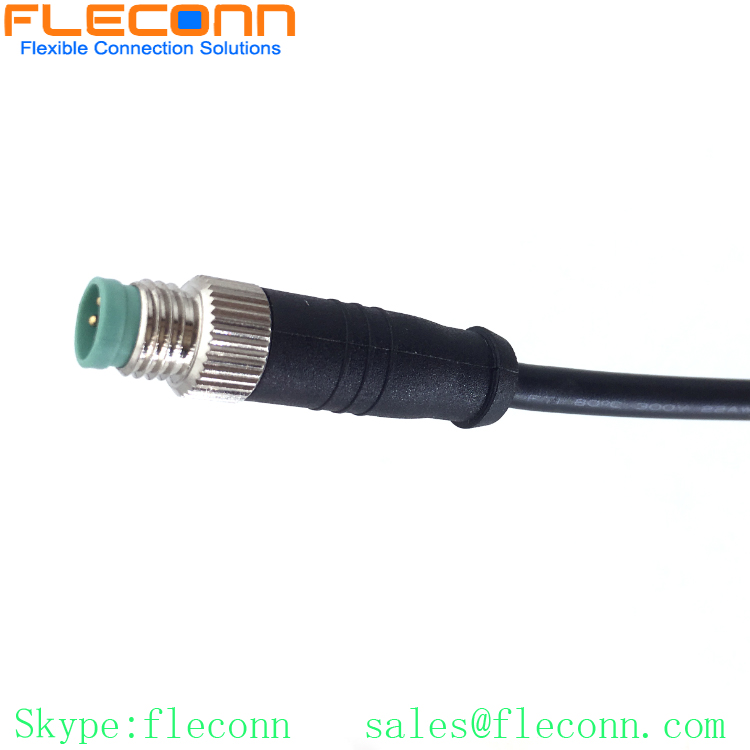

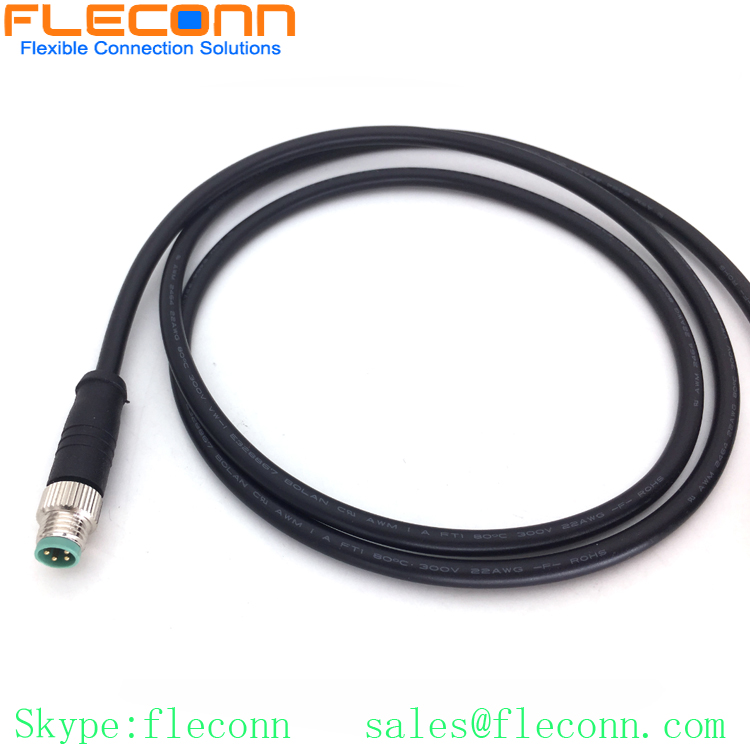

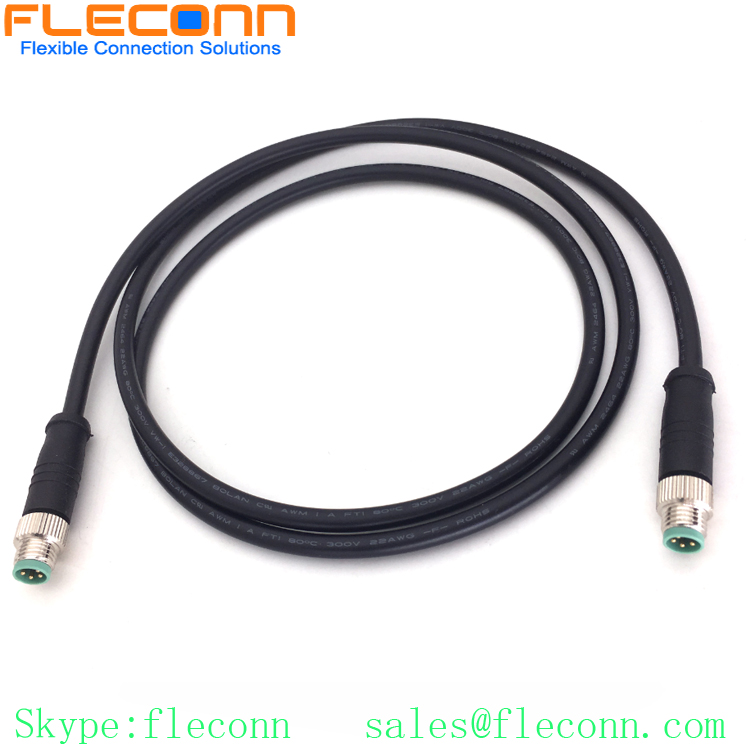

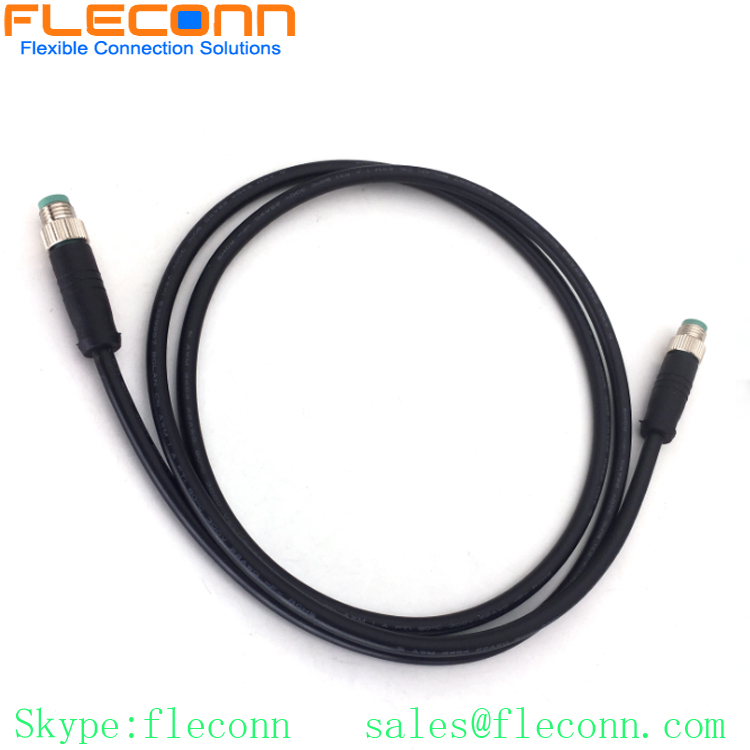

M8 4 Pin Male to Male Cable
M8 4 Pin Male to Male Cable M8 4 Pin Male to Male Cable M8 4 Pin Male to Male Cable M8 4 Pin Male to Male Cable M8 4 Pin Male to Male Cable

M8 4 Pin Male to Male Cable

Item No.: M8-AM-ST-04P-1M-TPU
FLECONN can supply IP67 straight m8 4 pin male cable for industrial automation devices.
Product series: M8 Connector Cable
Wire gauge: 26AWG
Connector Gender:  Male
Waterproof grade: IP67
Connector core number: 4P
Request Quote
Description
Description

M8 4 Pin Male to Male Cable Product Description



M8 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. We commonly use PVC, SR-PVC, PP, PE and other materials for selection. The matching M8 board end connectors (sockets) include electronic wire welding type and PCB board pin type. The M8 board end welding type can be welded electronic wire and resin potting package according to customer's reservation requirements.

M8 4 Pin Male to Male Connector Plug Cable, IP67 Waterproof Cordset product parameters



Product series: M8 Connector Cable Connector Gender: Male
Industry standard: IEC 61076-2-104 Connector core number: 4 Pole
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Wire gauge: 20-28AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 1.5A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR


M8 4 Pin Male to Male Straight Connector Plug CableApplications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M8 4 Pin Male to Male Cable
M8 4 Pin Male to Male Straight Connector Plug Cable, IP67 Waterproof Cordset

M8 4 Pole Male Cable, Outdoor LED Light Waterproof Cable


M8 Connection cable 4 Pin male cable connector on both ends, Overmolded, Black PVC, Unshielded


M8 4 Pos Male Plug Cable, Straight Molded Power and Signal Cable


M8 4-Postion Male Cable, Automation Sensor Cable


Other M8 Molded Connector Cable

FLECONN can provide IP66 waterproof M8 molded cables for power and signal transmission connections.
