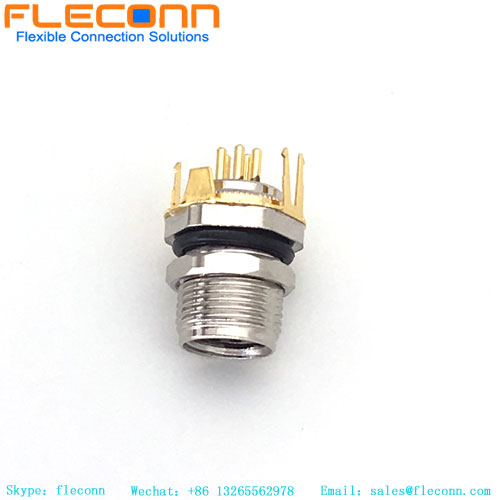

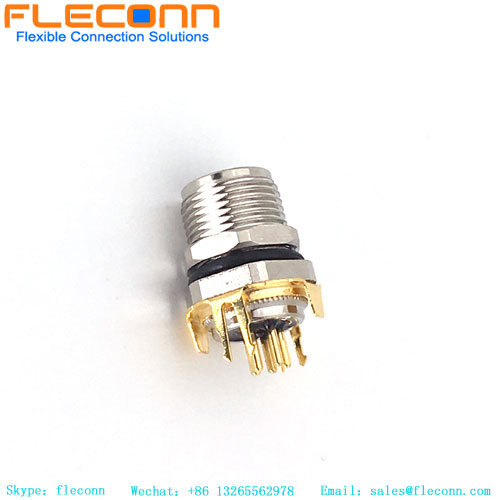

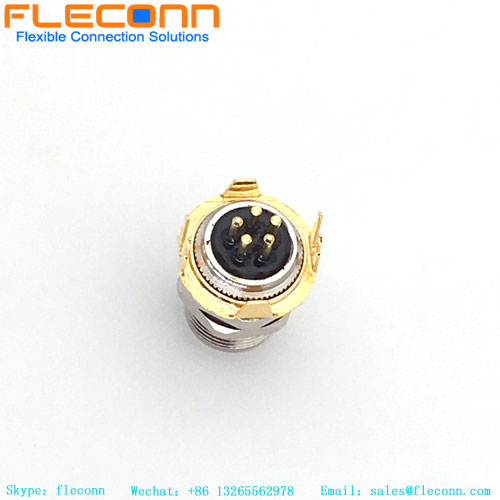

M8 5 Pin PCB Mount Connector with Shield Holder
M8 5 Pin PCB Mount Connector with Shield Holder M8 5 Pin PCB Mount Connector with Shield Holder M8 5 Pin PCB Mount Connector with Shield Holder M8 5 Pin PCB Mount Connector with Shield Holder M8 5 Pin PCB Mount Connector with Shield Holder

M8 5 Pin PCB Mount Connector with Shield Holder

Item No.: M8-B-F-ST-PCB-05P
Product series: M8 Panel Mount Connector
Connector code: B type
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 5P
Plug Guide: Straight
Request Quote
Description Review
Description

M8 5 Pin PCB Mount Connector with Shield Holder Product Description



FLECONN can supply 5 pin male plug and 4 pole m8 female cable connector. These m8 field wireable cable connectors may be used for for connecting sensor and industry automation systems by field assembling and installing with various lenght cables.


M8 5 Pin PCB Mount Connector with Shield Holder product parameters



Product series: M8 Connector Connector Gender: Female
Connector code: B type Connector core number: 5P
Industry standard: IEC61076-2-101 Connector type: Field assembly
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M8 5 Pin PCB Mount Connector with Shield Holder Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M8 5 pin Male Straight Metal Shell Plug Picture
m8 B Coded 3 Pin Field-Attachable Connector Straight Plug


M8 PCB 3Pin waterproof connector Panel Male Rear Mount

IP67 industrial m8 connector 5 pin PCB mount electrical signal connectors

M5 Circular Connector Cable with 2 3 4 pin male plug for Miniature Sensor market and industrial automation applications

Other M8 Connector

FLECONN can provide IP66 waterproof M8 3Pin Connector for power and signal transmission connections.
