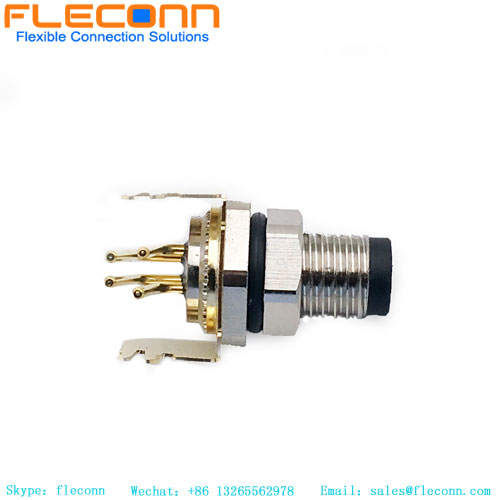

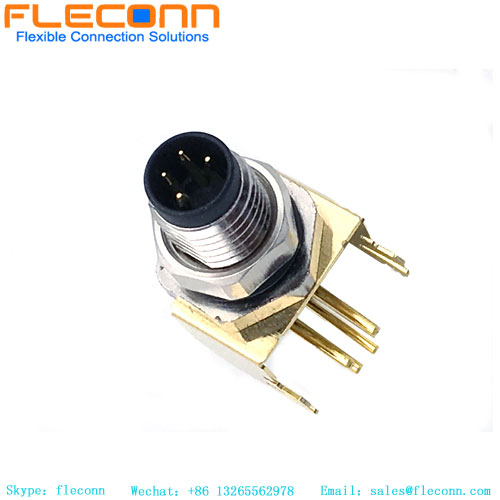

M8 4 Pin Male Right Angle Panel Mount Connector, PCB DIP Solder Terminals

Item No.: M8-A-M-RA-PCB-04P
Product series: M8 Panel Mount Connector
Connector code: A-Coded
Connector Gender: Male
Waterproof grade: IP67
Connector core number:  4P
Plug Guide: Right Angle
Description Review
Description

M8 4 Pin Male Right Angle Panel Mount Connector, PCB DIP Solder Terminals Product Description



FLECONN can supply 4 pin male plug and 4 pole m8 female cable connector. These m8 field wireable cable connectors may be used for for connecting sensor and industry automation systems by field assembling and installing with various lenght cables.


M8 90 Degree Waterproof Shielded Panel Mount Connectormount product parameters




Product series: M8 Connector Connector Gender:Male
Connector code: A-Coded Connector core number: 4P
Industry standard: IEC61076-2-101 Connector type: Field assembly
Plug Guide: Right Angle Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M8 90 Degree Waterproof Shielded Panel Mount Connector Holder Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

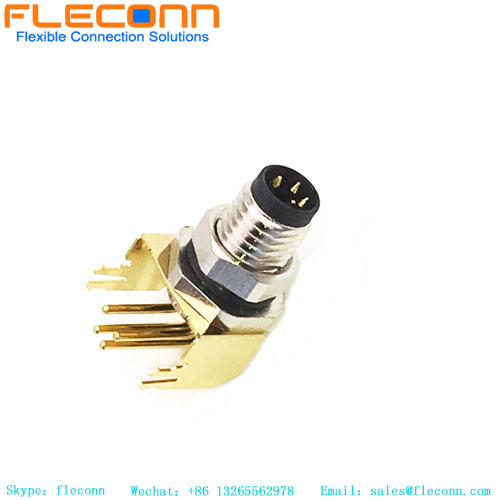

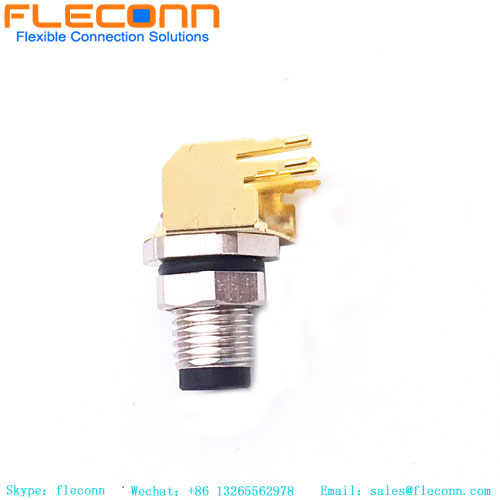

M8 90 Degree Waterproof Shielded Panel Mount Connector Picture


M8 4 Pin Male Rear Mounting Panel Connector


M8 4 Postion Right Angle Pcb Connector,  Male, Shielding

M8 Right Angle Pcb Connector, 4 Pin

Other M8 Connector
