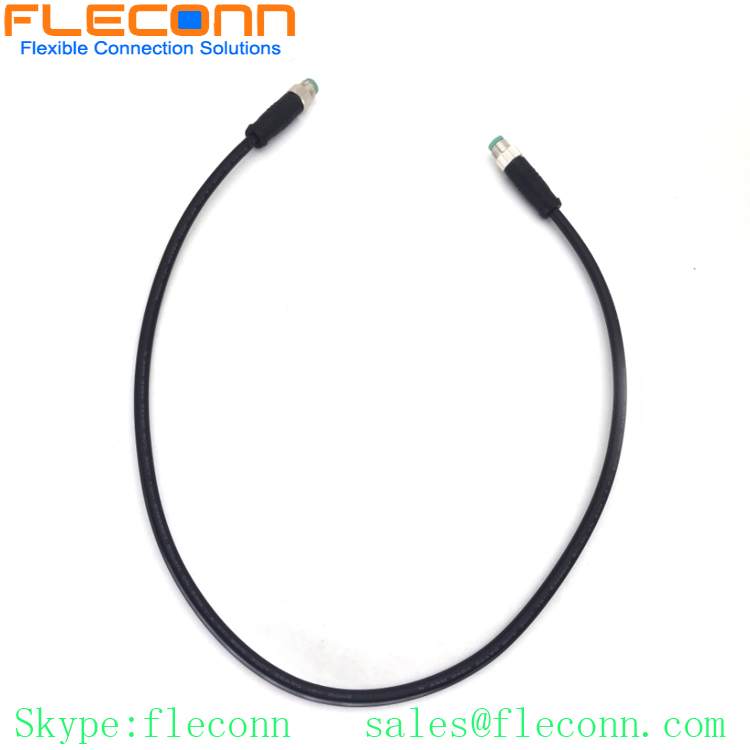

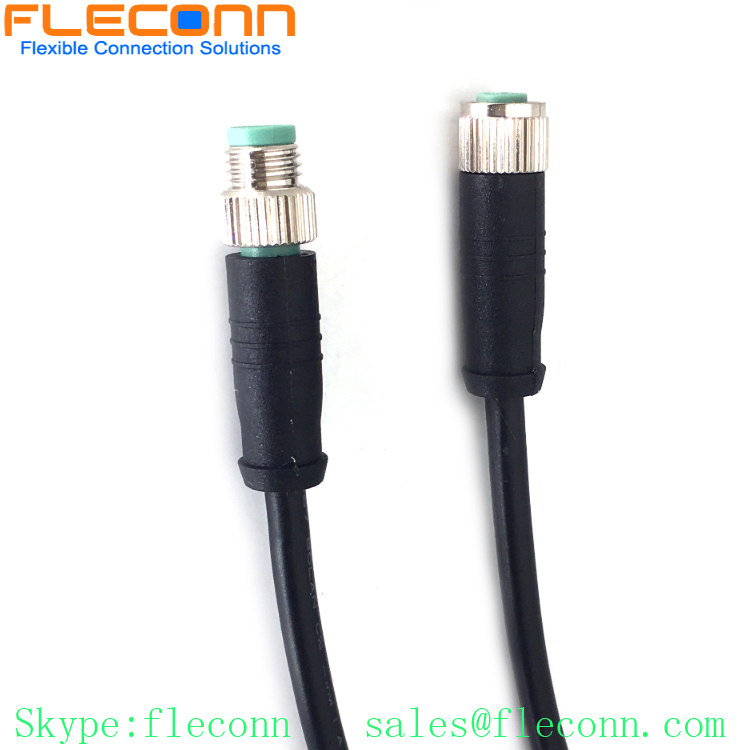

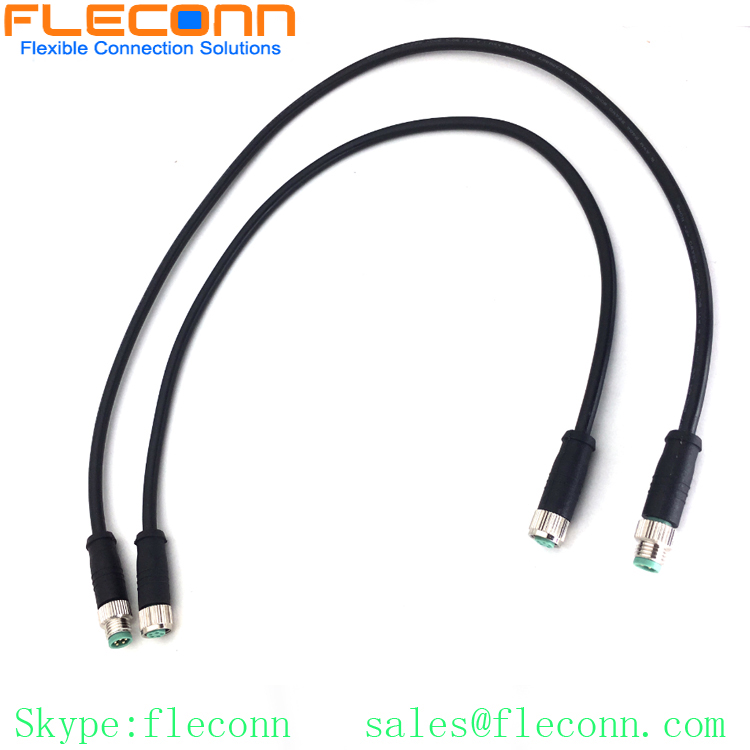

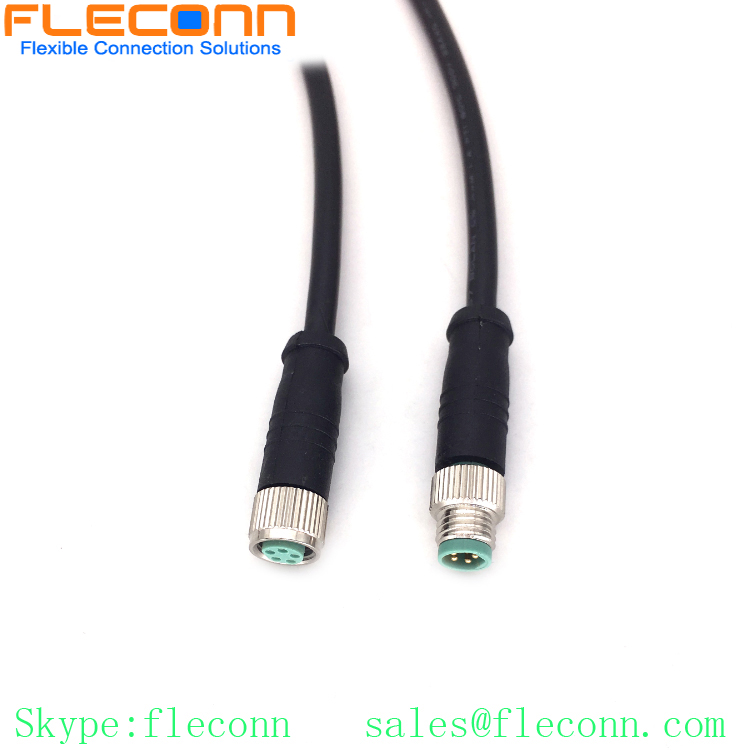

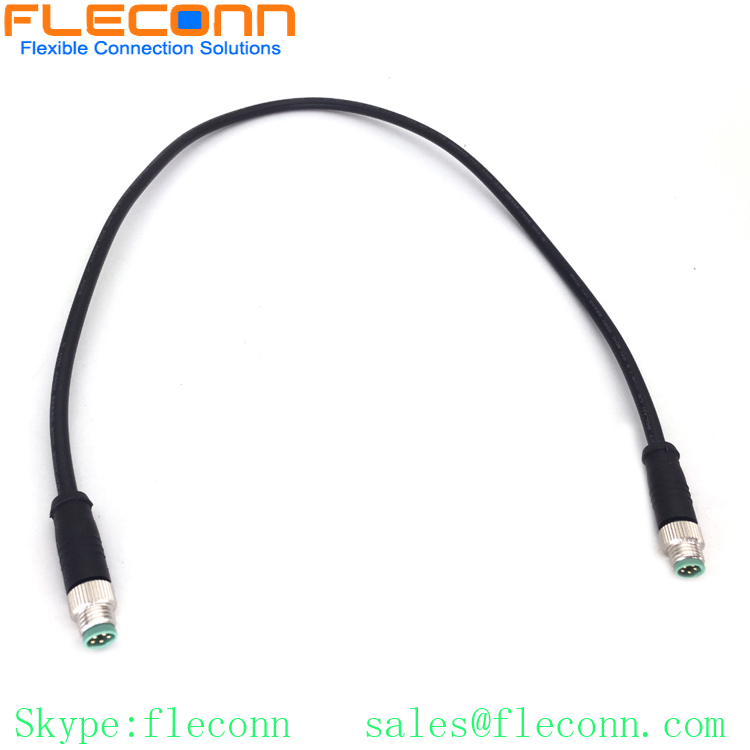

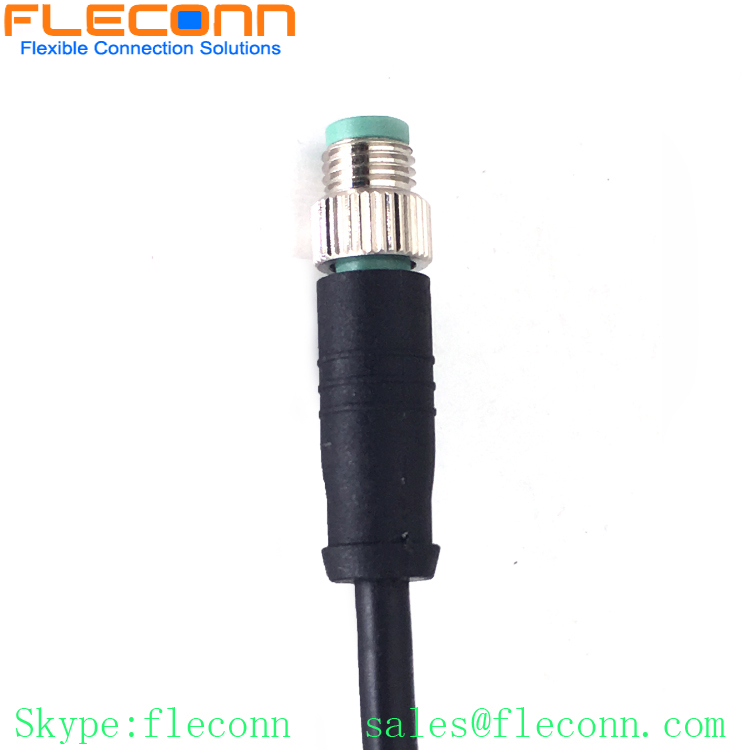

M8 B-coded 5 Pin Male to Male, Female to Female Double Ended Cable Cordsets Cable

M8 B-coded 5 Pin Male to Male, Female to Female Double Ended Cable Cordsets Cable

M8 B-coded 5 Pin Male to Male, Female to Female Double Ended Cable Cordsets Cable

M8 B-coded 5 Pin Male to Male, Female to Female Double Ended Cable Cordsets Cable

M8 B-coded 5 Pin Male to Male, Female to Female Double Ended Cable Cordsets Cable

M8 B-coded 5 Pin Male to Male, Female to Female Double Ended Cable Cordsets Cable

M8 B-coded 5 Pin Male to Male, Female to Female Double Ended Cable Cordsets Cable

M8 B-coded 5 Pin Male to Male, Female to Female Double Ended Cable Cordsets Cable

Description Review

Description

M8 B-coded 5 Pin Male to Male, Female to Female Double Ended Cable Cordsets Cable Product Description

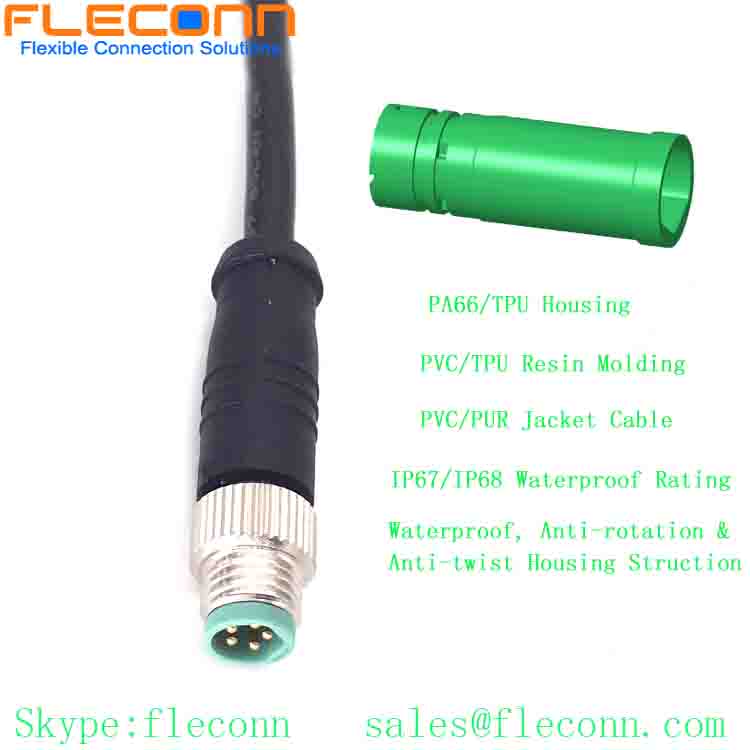

M8 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. We commonly use PVC, SR-PVC, PP, PE and other materials for selection. The matching M8 board end connectors (sockets) include electronic wire welding type and PCB board pin type. The M8 board end welding type can be welded electronic wire and resin potting package according to customer's reservation requirements.

M8 B-coded 5 Pin Male to Male, Female to Female Double Ended Cable Cordsets Cable product parameters

Product series: M8 Connector Cable	Connector Gender: Male
Industry standard: IEC 61076-2-104	Connector core number: 5P
Plug Guide: Straight	Terminal Material: Copper
Waterproof grade: IP67	Wiring method: welding wire
Adapter wire gauge: 20-28AWG	Connection method: threaded connection
Connector rubber core: PA66	Injection material: TPU
Applicable current: 4A	Connector conductor: copper gold plated
Applicable voltage: 250V	Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring	Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°	Wire cover: PVC/PUR

M8 B-coded 5 Pin Male to Male, Female to Female Double Ended Cable Cordsets Cable Applications

●Sensors, actuators, encoders, motors	●Industrial grating light curtains
●Factory automation process control	●Equipment battery, semiconductor
●Package label printing equipment	●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment	●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly	●LED outdoor display, outdoor LED lighting

M8 B-coded 5 Pin Male to Male, Female to Female Double Ended Cable Cordsets Cable
