M8 Electrical Connector Product Description
FLECONN can supply 3 pin male plug and 4 pole female shielded m8 electrical connector. These field wireable m8 electrical connectors may be used for for connecting sensor and industry automation systems by field assembling and installing with various lenght cables.
M8 Electrical Connector product parameters
Product series: M8 Connector |
Connector Gender: Female |
Connector code: No-coding |
Connector core number: 3Pin |
Industry standard: IEC61076-2-101 |
Connector type: Field assembly |
Plug Guide: Straight |
Terminal Material: Copper |
Waterproof grade: IP67 |
Applicable temperature: -20°- +80° |
Adapter wire gauge: 22AWG-26AWG |
Connection method: threaded connection |
Rated current: 4A |
Connector conductor: copper gold plated |
Rated voltage: 60V |
Insulation resistance: ≥100mΩ |
Sealing method: O type sealing ring |
Conductor resistance: ≤5mΩ |
M8 Electrical Connector Applications
●Sensors, actuators, encoders, motors |
●Industrial grating light curtains |
●Factory automation process control |
●Equipment battery, semiconductor |
●Package label printing equipment |
●Fieldbus: DeviceNet, CANopen, etc. |
●Industrial instruments and equipment |
●NMEA 2000 ship electronics, rail transit |
●EMS circuit board assembly |
●LED outdoor display, outdoor LED lighting |

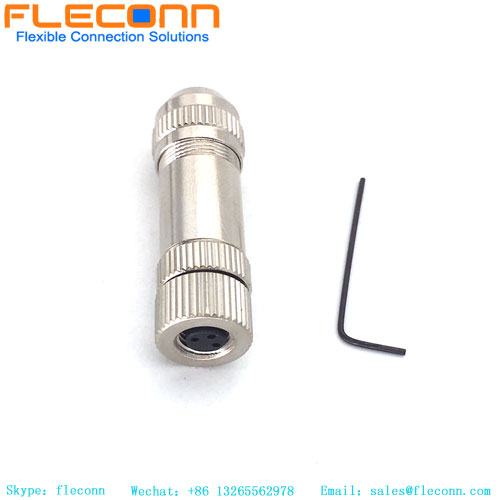

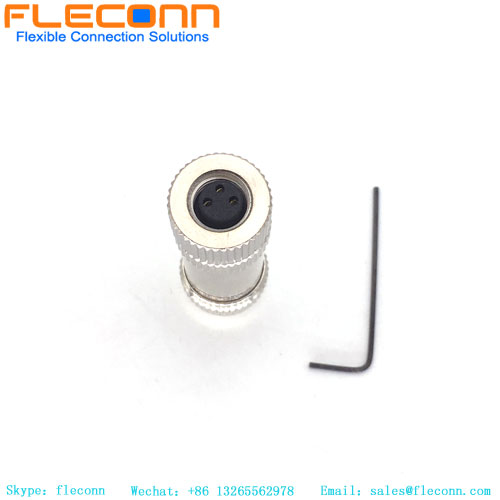

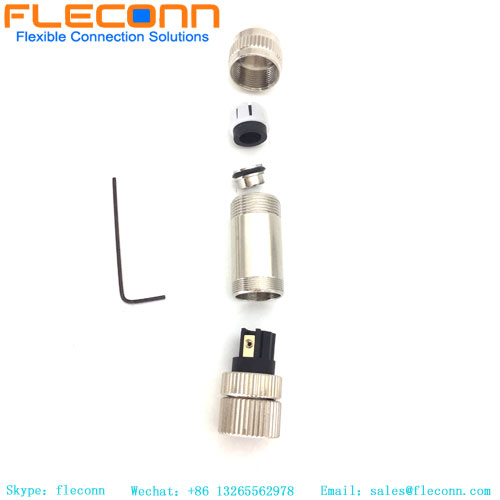

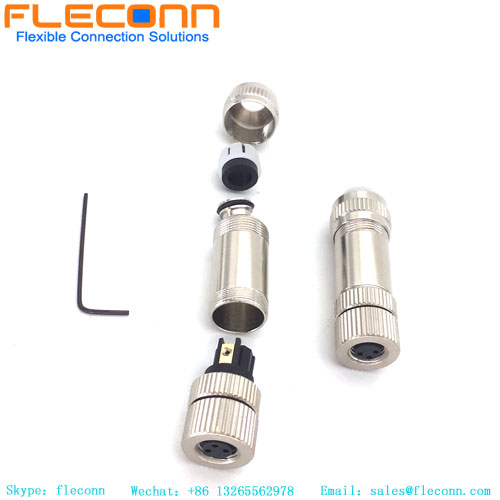

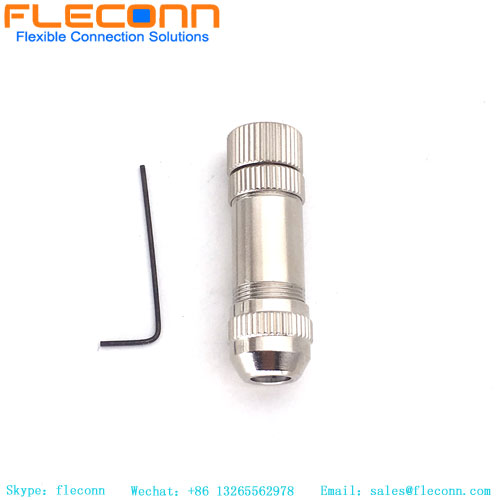

M8 Electrical Connector Picture
