M8 Female Panel Mount Cable, M8 Cable Connector M8 5 pin Connector
M8 Female Panel Mount Cable, M8 Cable Connector M8 5 pin Connector M8 Female Panel Mount Cable, M8 Cable Connector M8 5 pin Connector M8 Female Panel Mount Cable, M8 Cable Connector M8 5 pin Connector M8 Female Panel Mount Cable, M8 Cable Connector M8 5 pin Connector M8 Female Panel Mount Cable, M8 Cable Connector M8 5 pin Connector

M8 Female Panel Mount Cable, M8 Cable Connector M8 5 pin Connector

Item No.: M8-B-F-ST-PCB-05P-200MM
Product series: M8 Panel Mount Connector
Connector code: B type
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 5P
Plug Guide: Straight
Request Quote
Description Review
Description

M8 Female Panel Mount Cable, M8 Cable Connector M8 5 pin Connector Product Description



FLECONN could supply various m8 male and female panel mount connectors. These m8 circular connectors may be classified as straight and 90 degree right angle m8 panel mount connectors, shielded and unshielded pcb panel mount connectors, front and rear panel mount, front and rear fasten screw thread, wire solder pin and DIP solder pin connectors. There are 3 4 5 6 8 pin / pole / positions male and female m8 panel mount connectors available for connection systems of various sensor, industry automation equipment, robot and machine.


M8 Female Panel Mount Cable, M8 Cable Connector M8 5 pin Connector product parameters



Product series: M8 Panel Mount Connector Connector Gender: Female
Connector code: B type Connector core number: 5P
Industry standard: IEC61076-2-101 Connector type: Panel mount
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M8 Female Panel Mount Cable, M8 Cable Connector M8 5 pin Connector Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

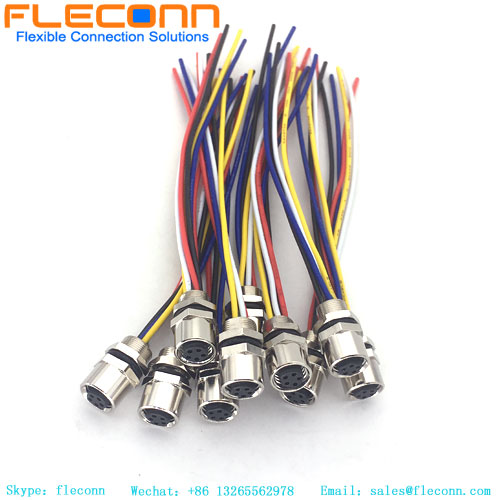

M8 Female Panel Mount Cable, M8 Cable Connector M8 5 pin Connector Picture

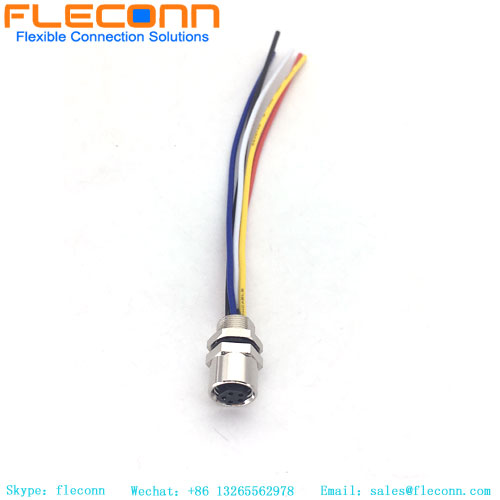

M8 5 Pin Female Panel Connector with Cable

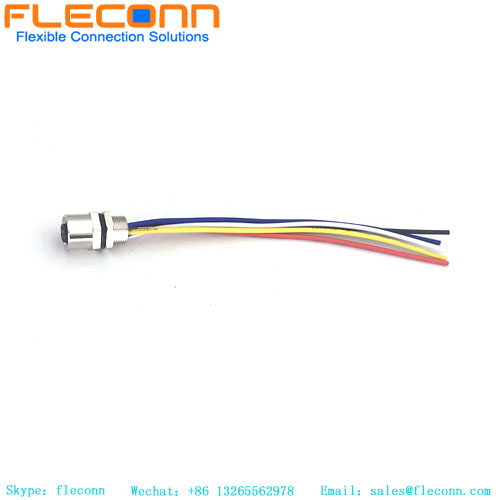

M8 5 Pin IP67 Waterproof Panel Cable

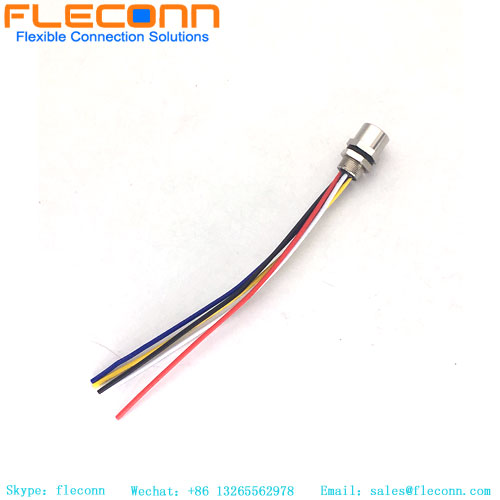

M8 Female Panel Mount Cable, M8 Cable Connector M8 5 pin Connector

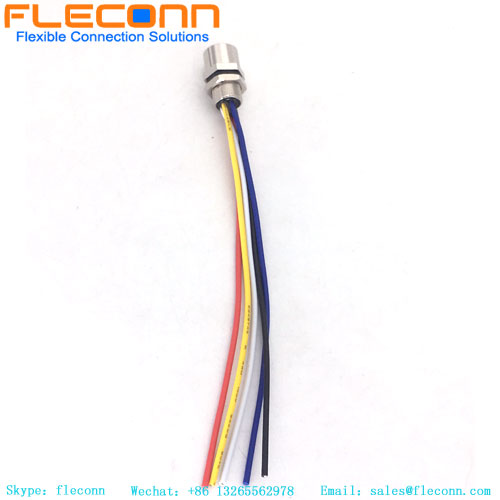

M8 Socket 5 Pos Female Waterproof Cable

Other M8 Panel Mount Connector With Free Wire Leads

FLECONN can provide various m8 3 4 5 6 8 pin male and female front and rear panel mount connector with free wire leads for sensors.

Other M8 Panel Mount Connector

M8 connector is classified as m8 field wireable cable connector, m8 molded cable connector, m8 pcb connector, m8 panel mount connector with wire solder cup terminals
