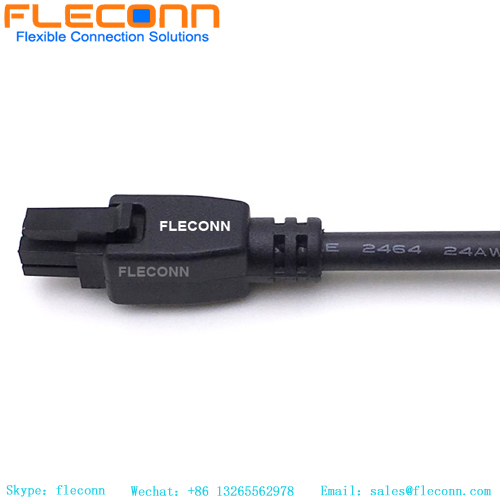

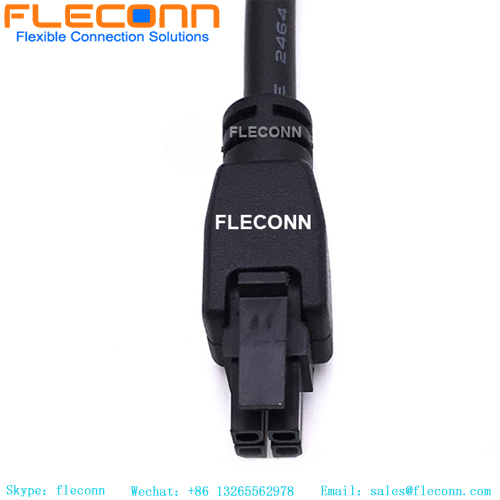

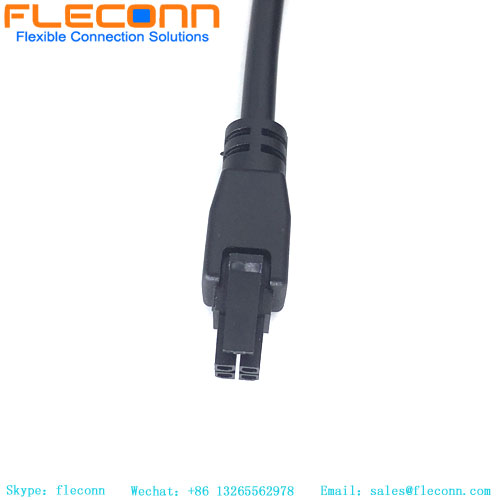

Micro-fit 3.0 Off-the-Shelf (OTS) 430250400 Overmolded Cable Assembly

Item No.: MX-04P-3.0PH-PVC-1M
Product Name: Micro-Fit 3.0 Wire Harness
Connector Housing : Molex Micro-fit3.0 43025-0400 4/5/6/8/10/12/14/16 pin receptacle
Crimp Terminal: 43030-0001
Wire: UL 2464 AWG28#/ 26# /24#, PVC
Mating Interface Pitch: 3.00mm
Description
Description

Micro-fit 3.0 Off-the-Shelf (OTS) 2451320405 Overmolded Cable Assembly Product Description



FLECONN can custom made  overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Micro-fit 3.0 Off-the-Shelf (OTS) 2451320405 Overmolded Cable Assembly parameters

Cable: -25℃~80℃ PVC flexible
Process: Crimping, overmoulding
Certificate: CE, RoHS
Quality: 100% Inspection
Wire: stranded copper wire with PVC insulation
Application: Home Appliance, Automobile, Motorcycle, Industry automation

Detail description for Micro-fit 3.0 2x2P 4 pin Overmolded Cable Assembly

Prouduct Name  Molex Micro-Fit 3.0 Series 43025-0400 4Pin Connector Overmolded Cable Assemblies
Equivalent to Molex Part No.  2451320405, 2451320410, 2451320420, 2451320430, 2451320450
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 43025-0400 Micro-Fit 3.0 Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 43030-0001 Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 20-24 AWG, Reel. 430300004 26-30 AWG, 430300038 18 AWG
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL2464 AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL2464 Round cable/ UL2468 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag

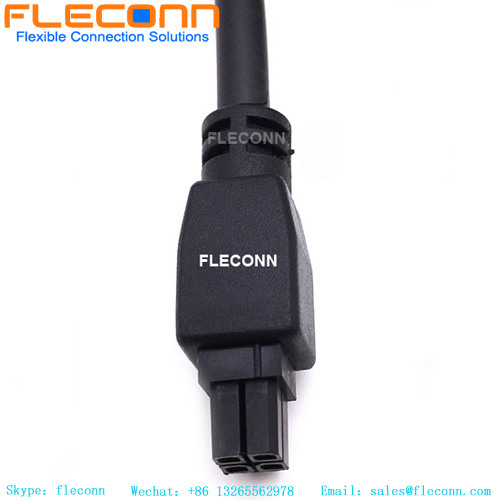

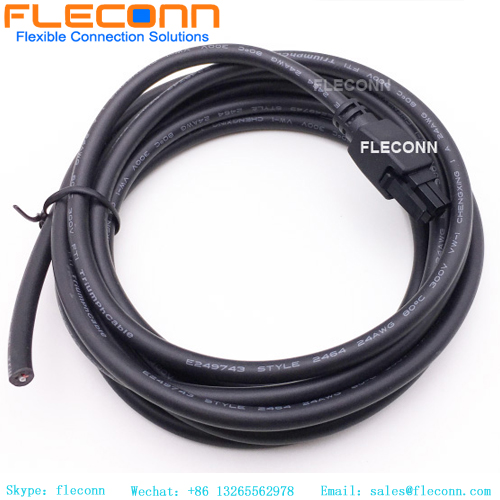

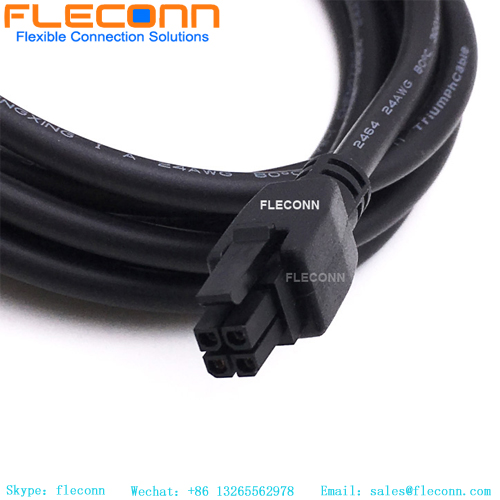

Micro-fit 3.0 Off-the-Shelf (OTS) 2451320405 Overmolded Cable Assembly

Micro-fit 3.0 Off-the-Shelf (OTS) 2451320405 Overmolded Cable Assembly


Molex Microfit 3.0 Cable, 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness


Overmolded 43025-0400 2x2P 4 Pin Molex Wire to Board Connector Cable Wire Harness


Molex Microfit 3.0 Cable, 2451320405 4 Pin Overmolded Connector Cable Harness 0.5M 1M 2M 3M 5M


Molex Micro fit 3.0 Cable, 2451320420 4Pin 3.0mm Pitch Wire to Board Connector Overmolded Cable Wire Harness


Molex Micro-fit 3.0 Cable, 2451320430 Overmolded 4 Pin Power Connector Cable


Overmolded Connector Cable Harnesses

FLECONN can custom made Molex Micro-Fit 3.0 overmolded cable assemblies with various circuits and cable length
