Home > Molex Connector Wire Harness > 1.25mm Pitch Wire Harness

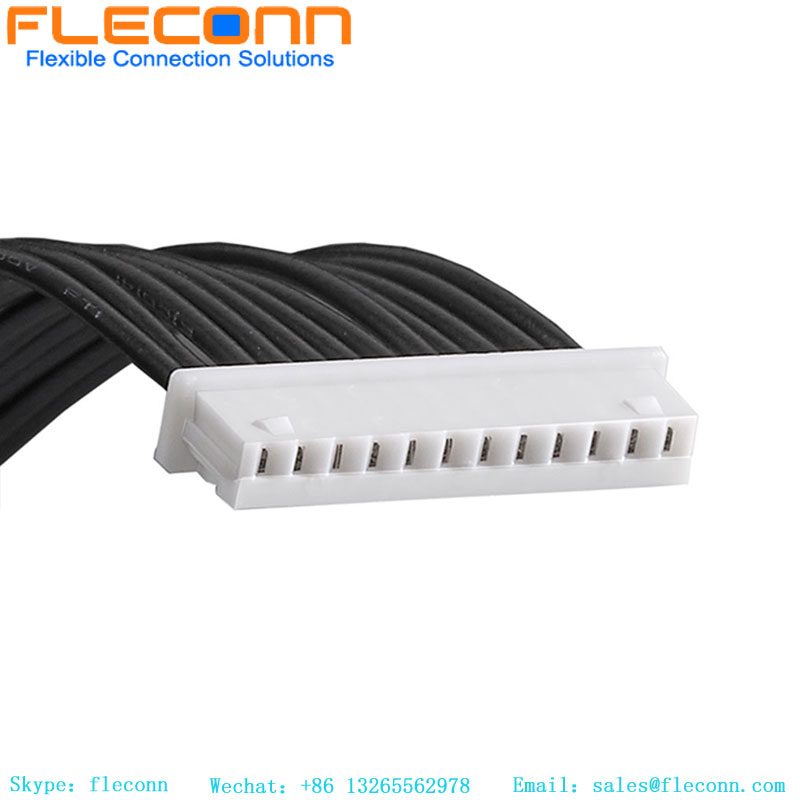

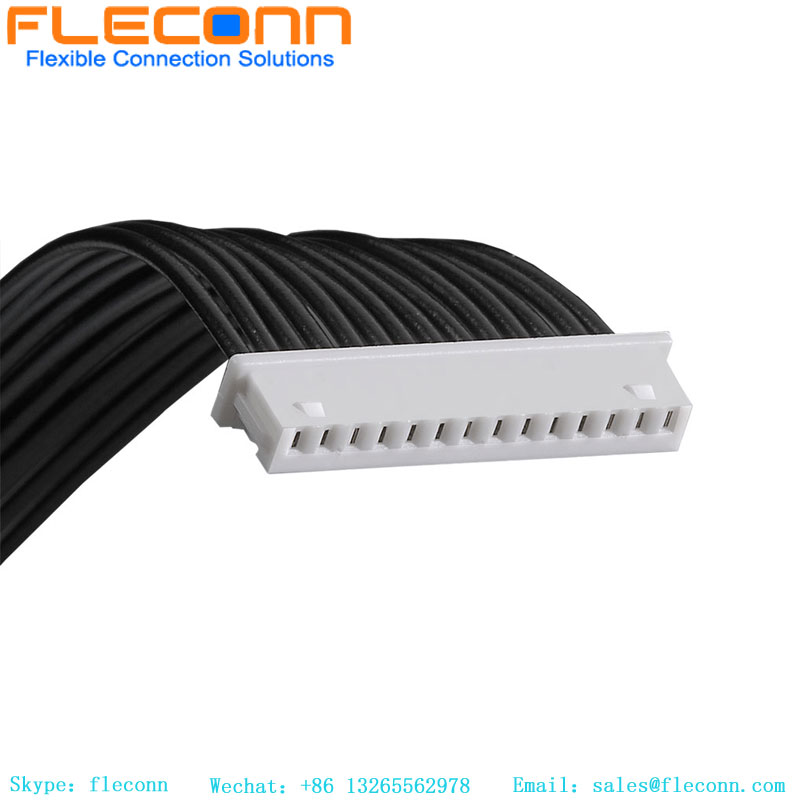

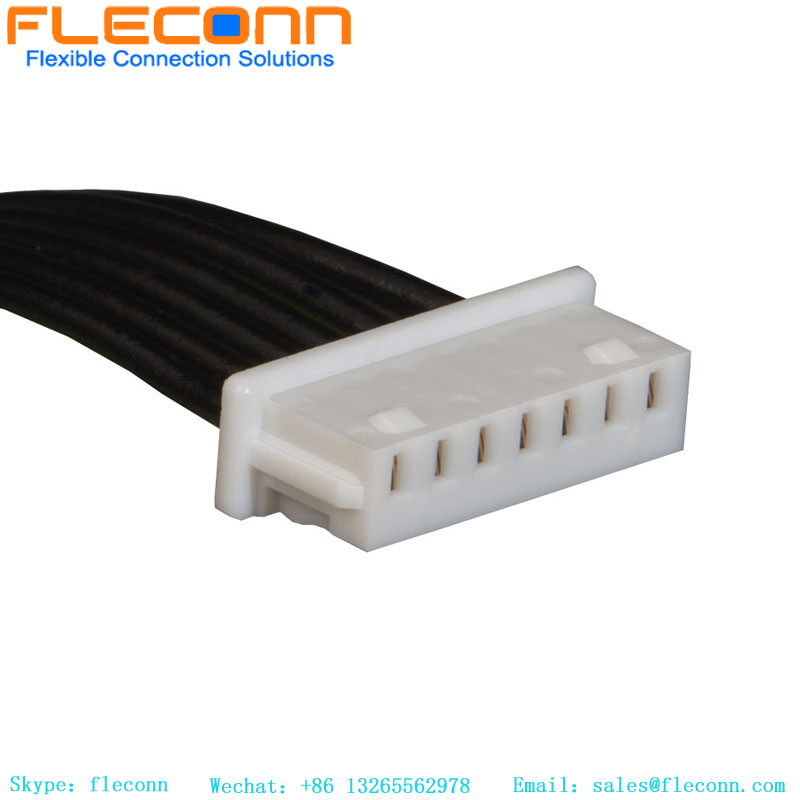

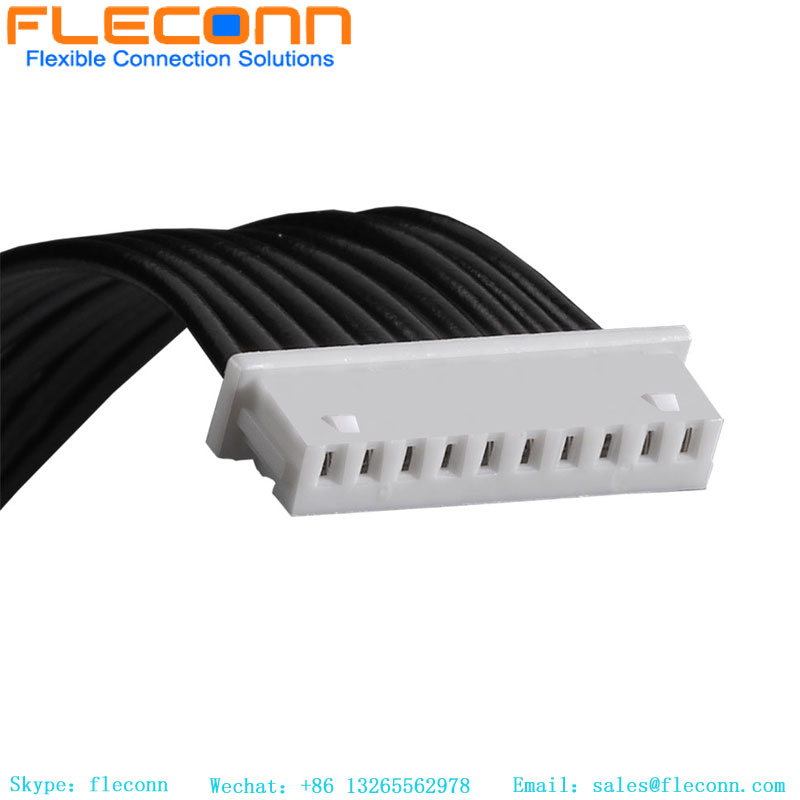

Molex 1.25mm Pitch 510211400 Connector Cable Assembly
Molex 1.25mm Pitch 510211400 Connector Cable Assembly Molex 1.25mm Pitch 510211400 Connector Cable Assembly Molex 1.25mm Pitch 510211400 Connector Cable Assembly Molex 1.25mm Pitch 510211400 Connector Cable Assembly Molex 1.25mm Pitch 510211400 Connector Cable Assembly

Molex 1.25mm Pitch 510211400 Connector Cable Assembly

Item No.: MX-51021-14P-1.25PH-0.5M
Product Name: 1.25mm Pitch Wire Harness
Connector Pitch：1.25MM
Connector : Molex 510211400, 2/3/4/5/6/7/8/10/12/14 pin
Crimp Terminal: 500588000
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 1.25mm
Request Quote
Description Review
Description

Molex 1.25mm Pitch 510211400 Connector Cable Assembly Product Description


FLECONN can custom made  overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Detail description for Molex 1.25mm Pitch 501211400 Cable Assembly

Prouduct Name  Custom Molex 510211400 Connector Wire Harness
Equivalent to Molex Part No.  151341400，151341401，151341402，151341403，151341405，151341406，510211400
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 510211400 1.25mm Pitch Receptacle Housing, Dual Row,  12Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 500588000 1.25mm Pitch Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact,
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007 AWG28#/26#/24#/22#/ tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1007 Round cable/ UL1571 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag
