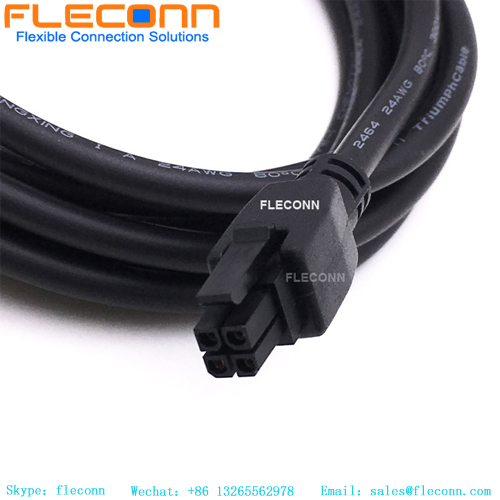

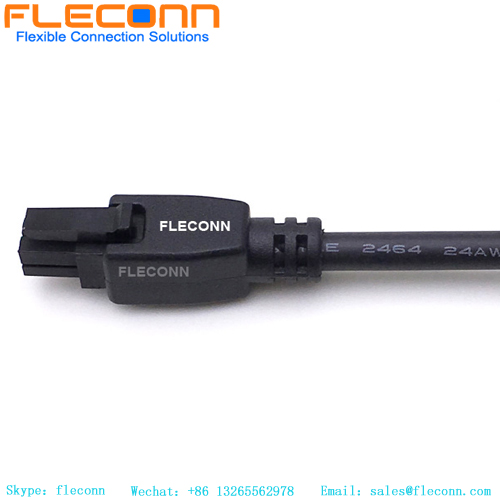

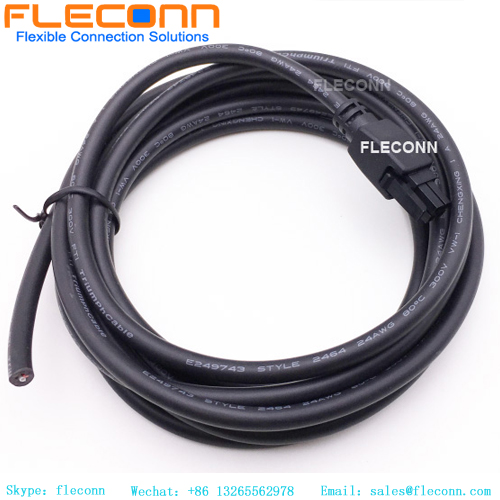

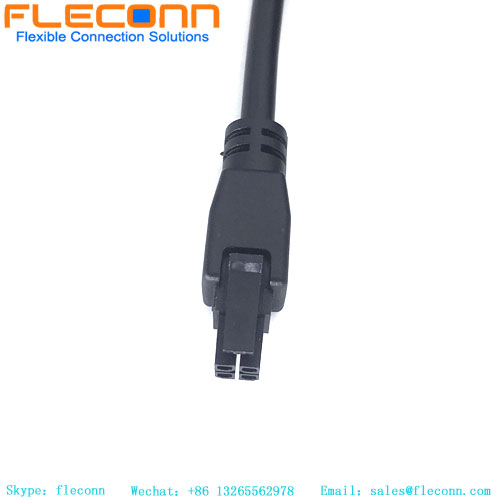

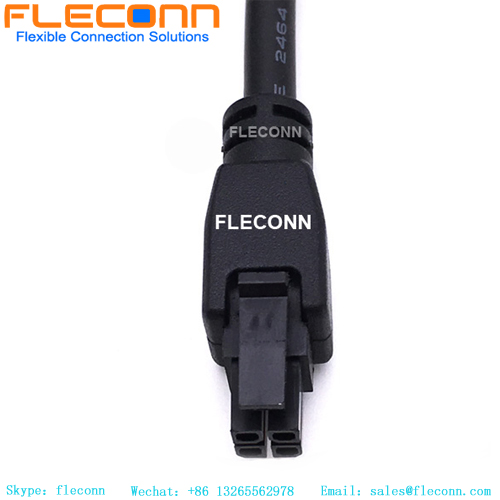

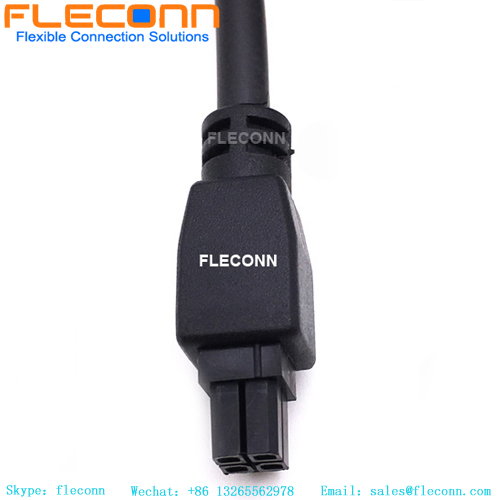

Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness
Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness

Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness

Item No.: MX-04P-3.0PH-PVC-0.5M
Product Name: Micro-Fit 3.0 Wire Harness
Connector Housing : Molex Micro-fit3.0 43025-0400 4/5/6/8/10/12/14/16 pin receptacle
Crimp Terminal: 43030-0001
Wire: UL 2464 AWG28#/ 26# /24#, PVC
Mating Interface Pitch: 3.00mm
Request Quote
Description
Description

Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness Product Description



FLECONN can custom made  overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness parameters

Cable: -25℃~80℃ PVC flexible
Process: Crimping, overmoulding
Certificate: CE, RoHS
Quality: 100% Inspection
Wire: stranded copper wire with PVC insulation
Application: Home Appliance, Automobile, Motorcycle, Industry automation

Detail description for Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness

Prouduct Name  Molex Micro-Fit 3.0 Series 43025-0400 4Pin Connector Overmolded Cable Assemblies
Equivalent to Molex Part No.  2451320405, 2451320410, 2451320420, 2451320430, 2451320450
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 43025-0400 Micro-Fit 3.0 Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 43030-0001 Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 20-24 AWG, Reel. 430300004 26-30 AWG, 430300038 18 AWG
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL2464 AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL2464 Round cable/ UL2468 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag


























Molex Microfit 3.0 Cable 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness

Micro-fit 3.0 Off-the-Shelf (OTS) 2451320405 Overmolded Cable Assembly


Molex Microfit 3.0 Cable, 2451320410 4 Pin Overmolded Wire to Board Connector Cable Wire Harness


Overmolded 43025-0400 2x2P 4 Pin Molex Wire to Board Connector Cable Wire Harness


Molex Microfit 3.0 Cable, 2451320405 4 Pin Overmolded Connector Cable Harness 0.5M 1M 2M 3M 5M


Molex Micro fit 3.0 Cable, 2451320420 4Pin 3.0mm Pitch Wire to Board Connector Overmolded Cable Wire Harness


Molex Micro-fit 3.0 Cable, 2451320430 Overmolded 4 Pin Power Connector Cable


Overmolded Connector Cable Harnesses

FLECONN can custom made Molex Micro-Fit 3.0 overmolded cable assemblies with various circuits and cable length
