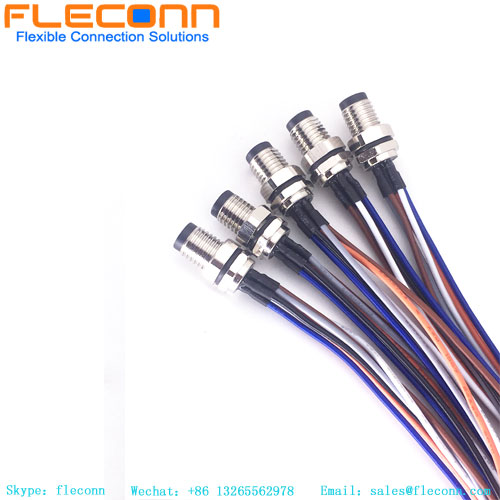

Waterproof IP67 M8 3 4 5 6 8 Pins Male and Female Rear Panel Mount Connector Receptacle Cable
Waterproof IP67 M8 3 4 5 6 8 Pins Male and Female Rear Panel Mount Connector Receptacle Cable Waterproof IP67 M8 3 4 5 6 8 Pins Male and Female Rear Panel Mount Connector Receptacle Cable Waterproof IP67 M8 3 4 5 6 8 Pins Male and Female Rear Panel Mount Connector Receptacle Cable Waterproof IP67 M8 3 4 5 6 8 Pins Male and Female Rear Panel Mount Connector Receptacle Cable Waterproof IP67 M8 3 4 5 6 8 Pins Male and Female Rear Panel Mount Connector Receptacle Cable

Waterproof IP67 M8 3 4 5 6 8 Pins Male and Female Rear Panel Mount Connector Receptacle Cable

Item No.: M8-B-M-ST-FFT-04P-200MM
Product series: M8 Panel Mount Connector Cable
Connector code: A-code B-code available
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 3Pin 4Pin 5Pin 6Pin 8Pin Available
Plug Guide: Straight
Request Quote
Description Review
Description

Waterproof IP67 M8 3 4 5 6 8 Pin Rear Panel Mount Connector Product Description



FLECONN could supply various m8 male and female panel mount connectors. These m8 circular connectors may be classified as straight and 90 degree right angle m8 panel mount connectors, shielded and unshielded pcb panel mount connectors, front and rear panel mount, front and rear fasten screw thread, wire solder pin and DIP solder pin connectors. There are 3 4 5 6 8 pin / pole / positions male and female m8 panel mount connectors available for connection systems of various sensor, industry automation equipment, robot and machine.


M8 3 4 5 6 8 Pin Panel Mount Receptacle with Free Wire Leads product parameters



Product series: M8 Panel Mount Connector Cable Connector Gender: Male
Connector code: A B-code Connector core number: 3P 4P 5P 6P 8P
Industry standard: IEC61076-2-101 Connector type: Panel mount
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 1A 2A 3A 4A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


Waterproof IP67 M8 3 4 5 6 8 Pin Male Rear Panel Mount Connector Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

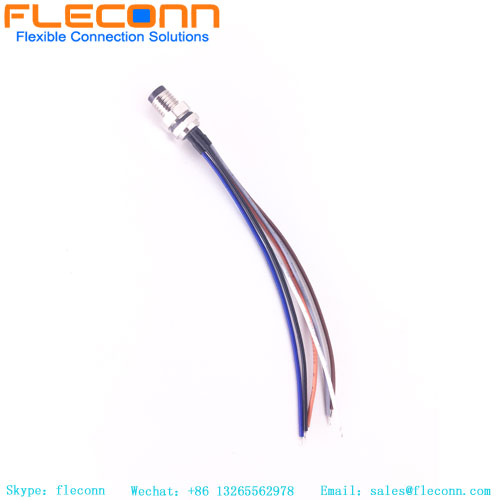

Waterproof IP67 M8 6 Pin Male Front Fastened Panel Mount Connector Wire Pigtails Picture

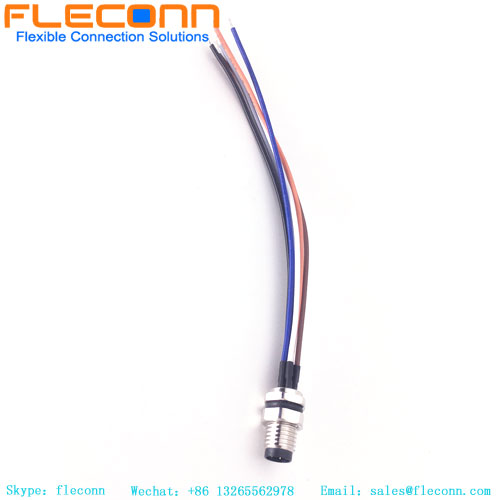

M8 Panel Mount Connector Socket with 24AWG Cable Wire

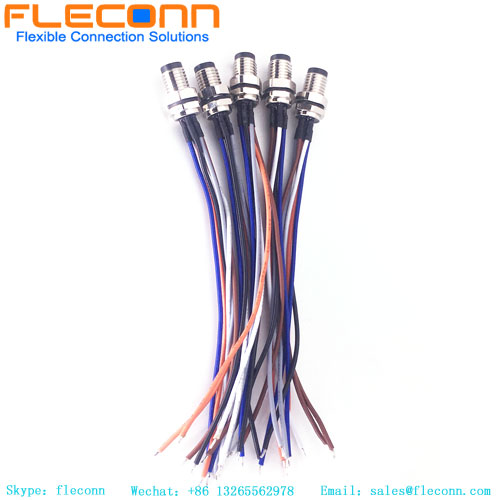

waterproof IP67 M8 3 4 5 6 8 pins male and female Panel Mount connector receptacle cable connectors

M8 6 Pin straight PCB panel mount cable

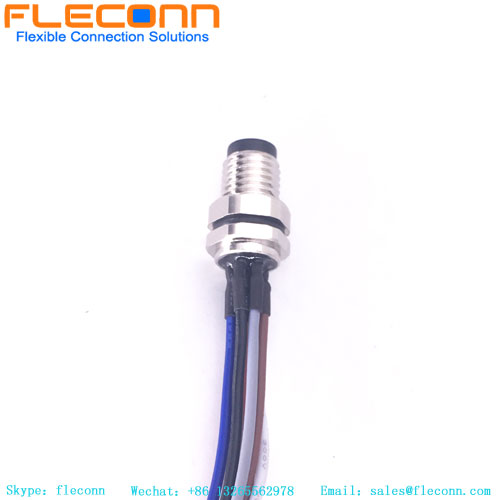

Waterproof IP67 6 Pin M8 Male Female Panel Mount Connector with Wire

Other M8 Panel Mount Connector With Free Wire Leads

FLECONN can provide various m8 3 4 5 6 8 pin male and female front and rear panel mount connector with free wire leads for sensors.

Other M8 Panel Mount Connector

M8 connector is classified as m8 field wireable cable connector, m8 molded cable connector, m8 pcb connector, m8 panel mount connector with wire solder cup terminals
